Intermodal Container



An intermodal container (also container, freight container, ISO container, shipping container, hi-cube container, box, conex box and sea can) is a standardized reusable steel box used for the safe, efficient and secure storage and movement of materials and products within a global containerized intermodal freight transport system.

"Intermodal" indicates that the container can be moved from one mode of transport to another (from ship, to rail, to truck) without unloading and reloading the contents of the container. Lengths of containers, which each have a unique ISO 6346 reporting mark, vary from 8-foot (2.438 m) to 56-foot (17.07 m) and heights from 8-foot (2.438 m) to 9 feet 6 inches (2.9 m). Aggregate container capacity is often expressed in twenty-foot equivalent units (TEU / teu) which is a unit of capacity equal to one standard 20 × 8 ft (6.10 × 2.44 m) (length × width) container.



  External Dimension
L * W * H
Interior Dimension
L * W * H
Door Aperture
W * H
Volume Max Gross
Weight
Empty
Weight
Net
Load
20' container 6085*2438*2591mm 5710*2352*2385mm 2343*2280mm 33.1m³ 30400KGS 2200KGS 28200KGS
40' container 12192*2438*2591mm 12032*2352*2385mm 2343*2280mm 67.5m³ 30400KGS 3800KGS 26600KGS
40' high-cube container 12192*2438*2896mm 12000*2311*2650mm 2280*2560mm 75.3m³ 30848KGS 3900KGS 26580KGS
45' high-cube container 13716*2438*2896mm 13556*2352*2698mm 2343*2585mm 86.1m³ 30400KGS 4800KGS 25600KGS









Special Container

Special Container

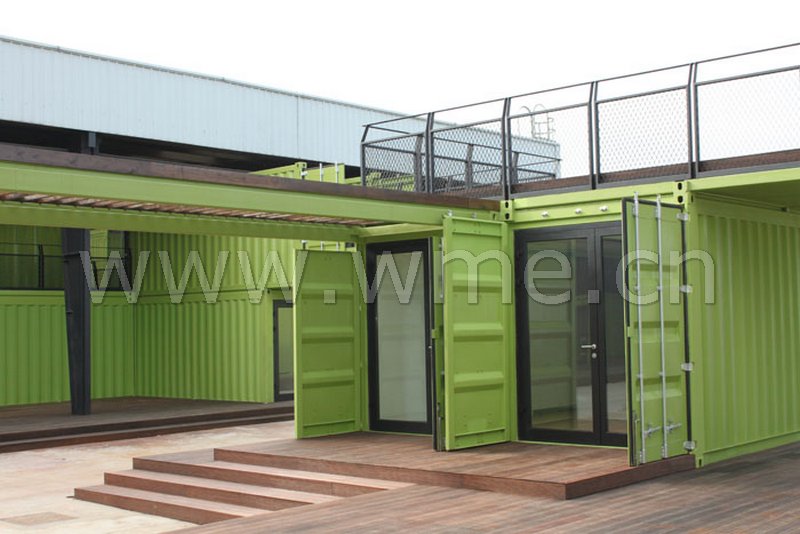

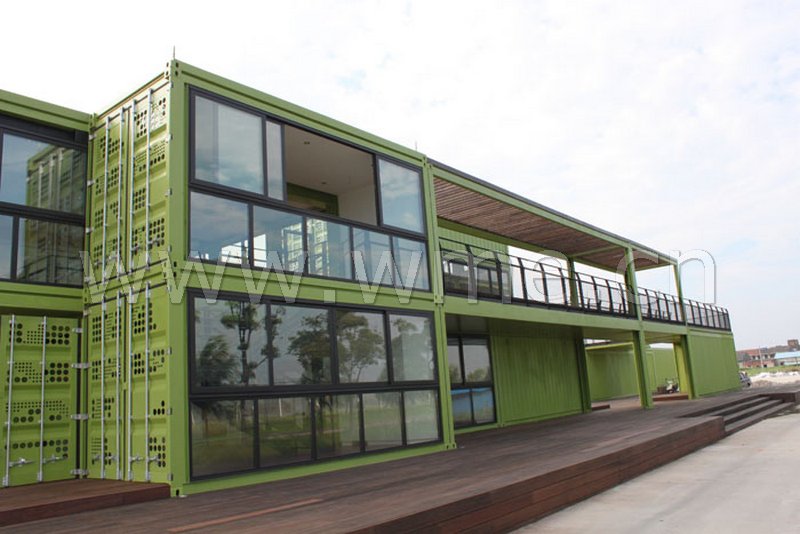

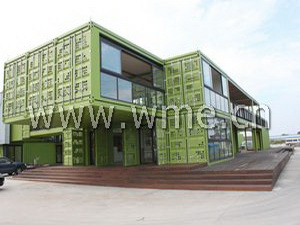

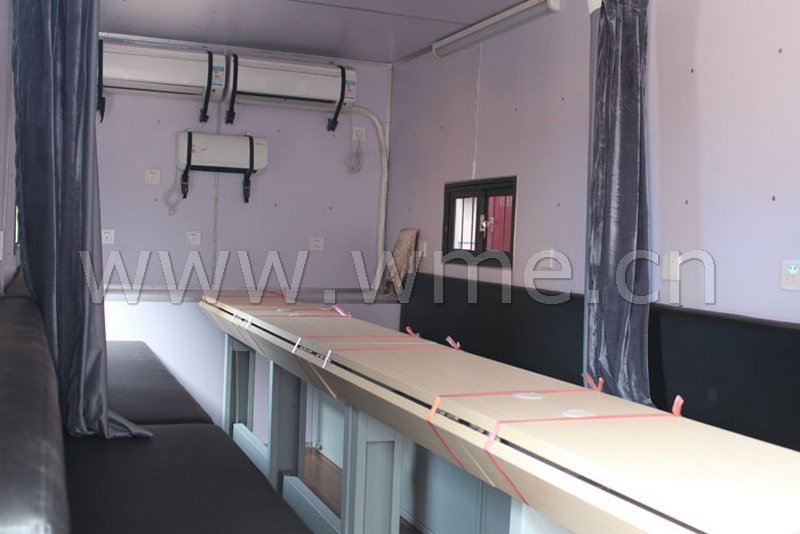

special container as office
Special Container

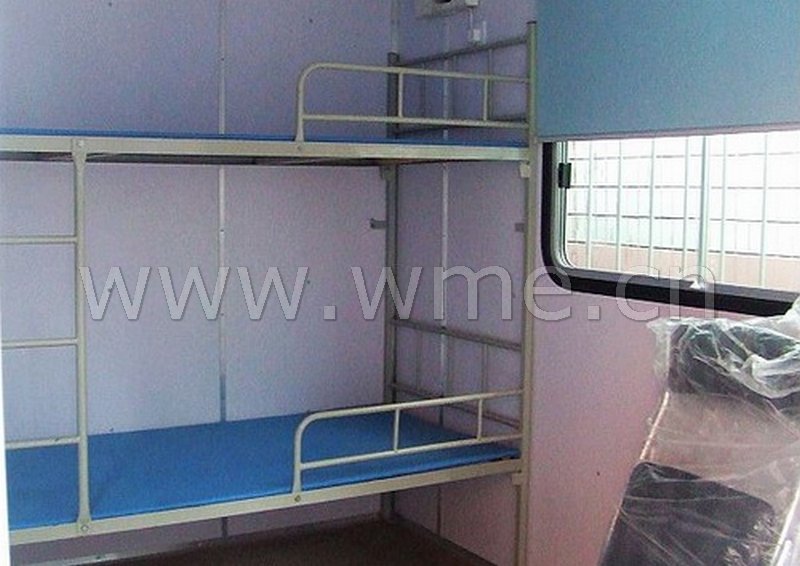

special container as bedroom
Special Container

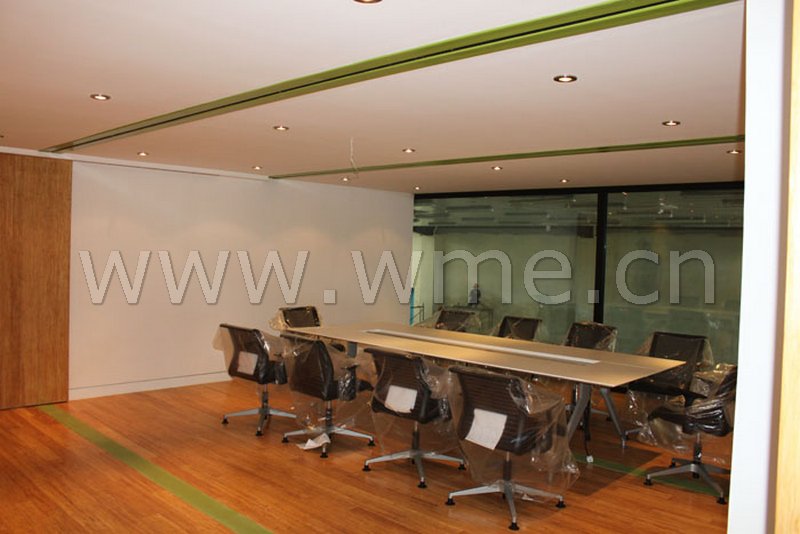

special container as meeting room





Special Container
special container as office
Special Container
special container as office
Special Container
special container as office





Special Container
special container as office
Special Container
special container as office
Special Container
special container as office





Special Container
special container as office
Special Container

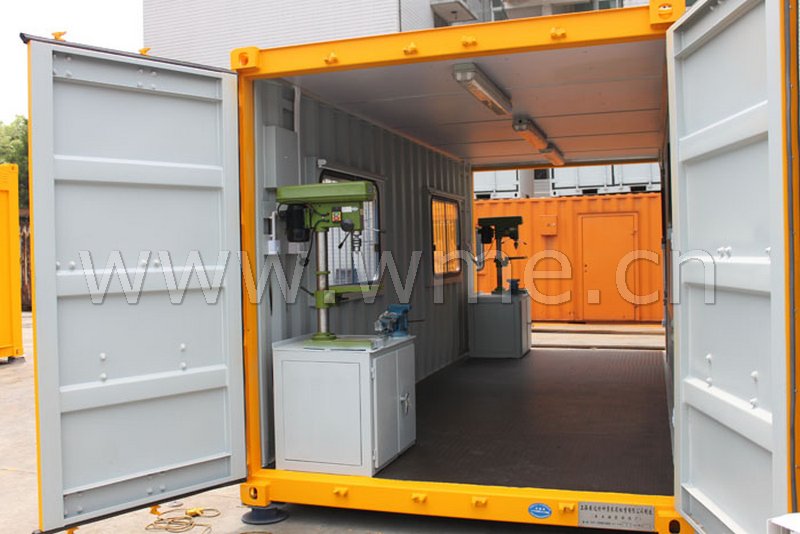

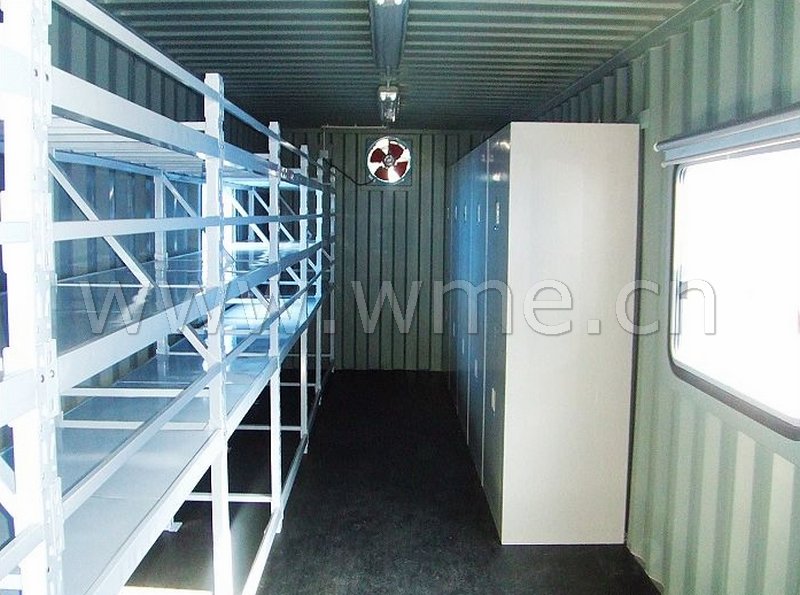

special container as parts warehouse
Special Container

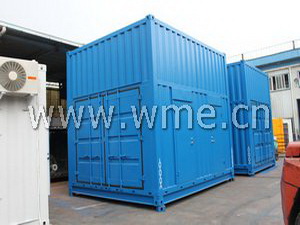

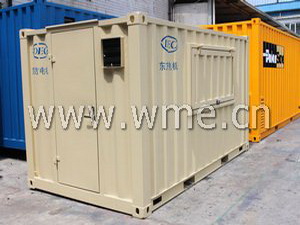

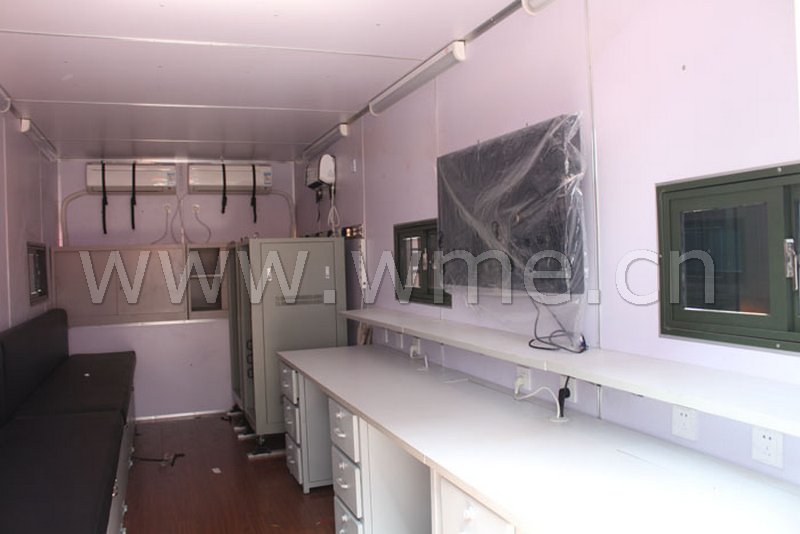

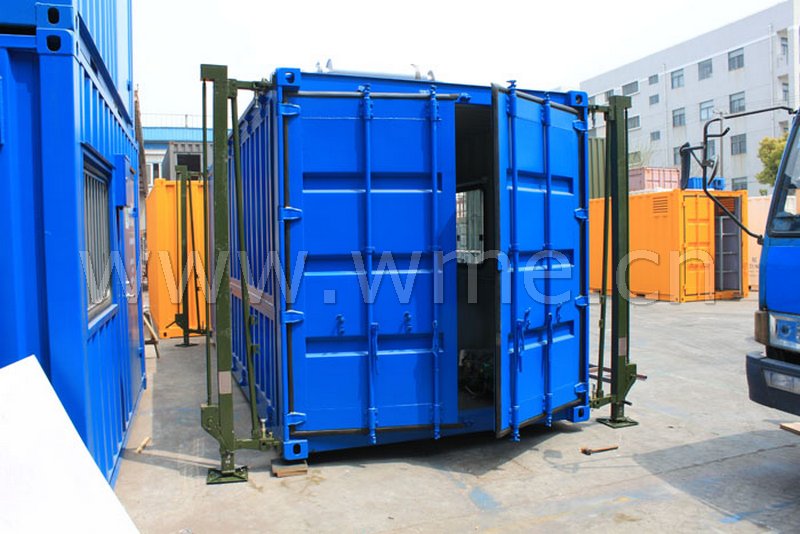

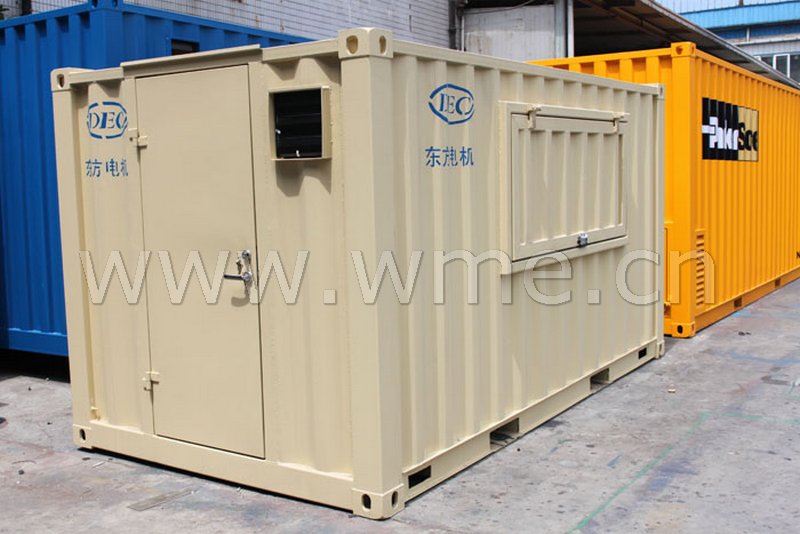

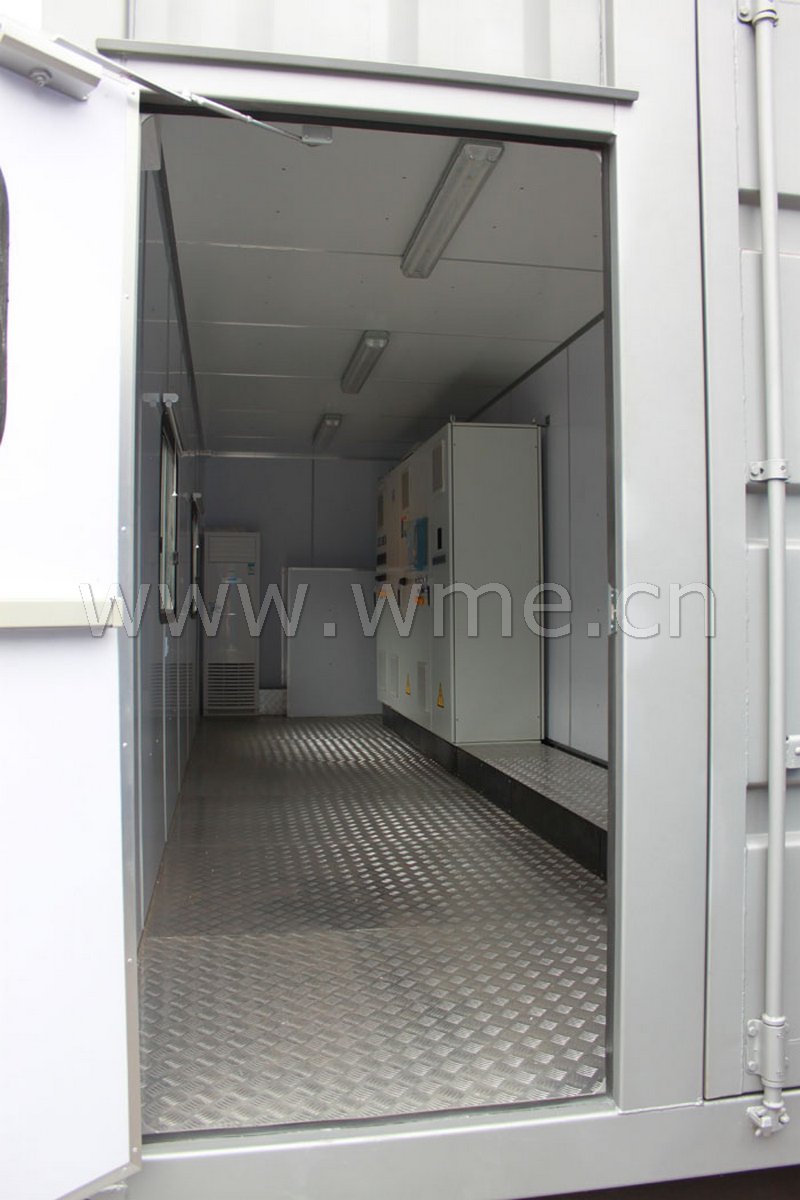

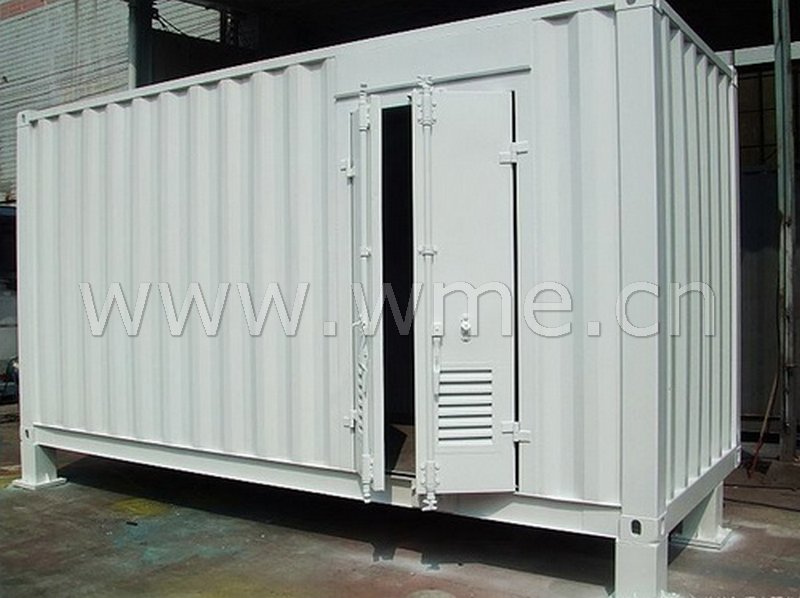

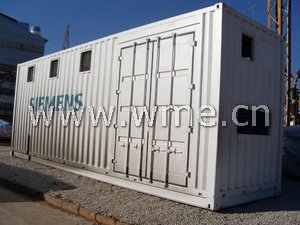

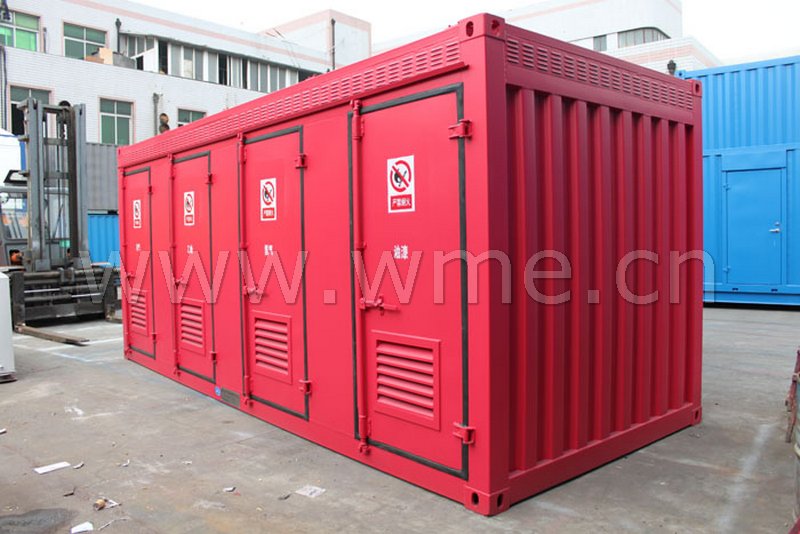

special container as electrical control room





Special Container
special container as electrical control room
Special Container
special container as electrical control room
Special Container
special container as electrical control room





Special Container
special container as electrical control room
Special Container
special container as electrical control room
Special Container
special container as electrical control room





Special Container

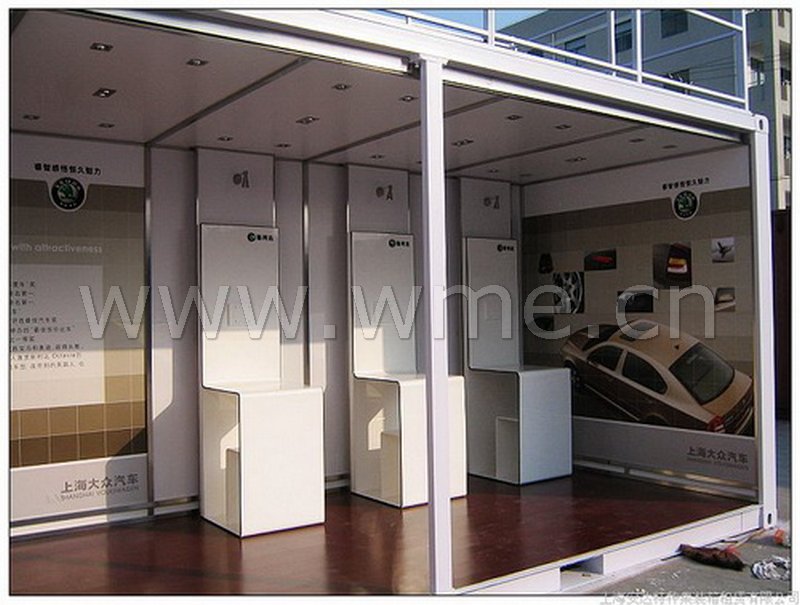

special container as ads show room
Special Container
special container as ads show room
Special Container

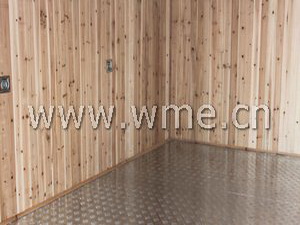

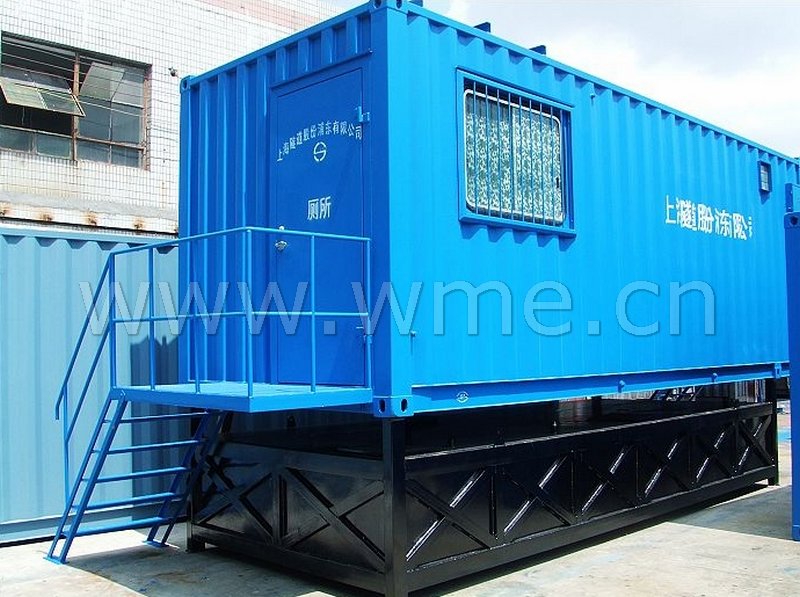

special container as toilet





Special Container

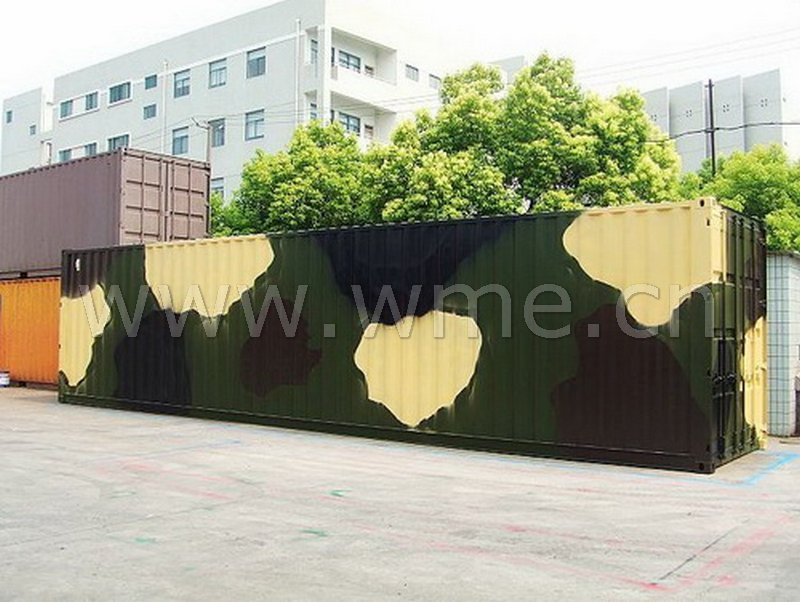

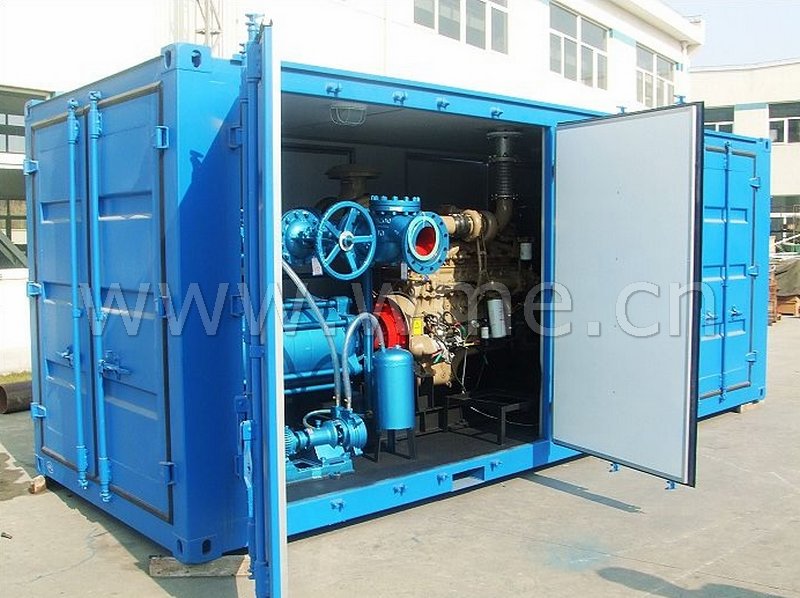

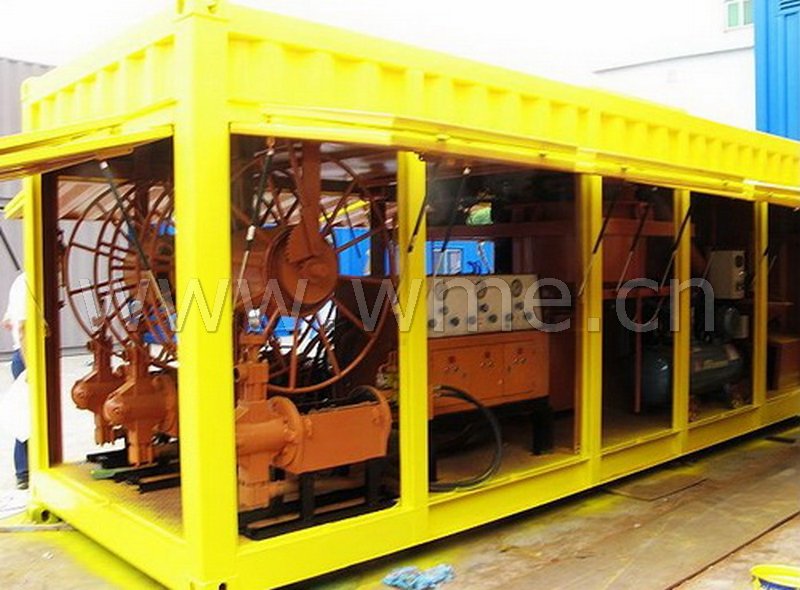

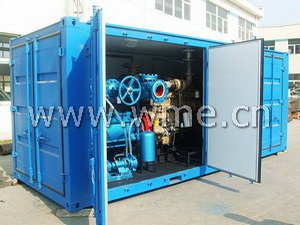

special container for construction project
Special Container
special container for construction project
Special Container
special container for construction project





Special Container
special container for construction project
Special Container
special container for construction project
Special Container
special container for construction project





Special Container
special container for construction project
Special Container
special container for construction project
Special Container
special container for construction project
