Grab Crane

H.S.8426 1921 00



Grab Crane, claw crane, steel grab, grabbing crane, 400G, WYS40C, WYS50, QLYD12HZ, QLYS12HZ, QLYS16HZ,  QLYS20HZ, QLYS25HZ, QLYS30HZ, QLYS35HZ, QLYS50HZ, QLYS6DZ, QLYS8DZ, QLYS10DZ, QLYS12DZ, QLYS15DZ, QLYS20DZ, QLYS12SZ, QLYS16SZ, QLYS20SZ, QLYS6DY, QLYS15DY, SDQY12A



* The track type grab crane with crawler is usually for grabbing steel.

Without support of the outrigger, the wheel type grab crane can load 30% of its capacity and travel with the load.

The grab crane can be equipped with many different kinds of bucket for different purpose. So the bucket is depend on what kind material the grab crane will mainly handle with.

Sometimes the grab crane is called as claw crane.

Dual power = electrical motor power + diesel engine power







Knuckle boom Grab Crane

Model Engine Max.Lifting Weight
including grab bucket weight
Rated
Grabbing
Weight
Max.
Heaping
Height
Working
Radius
Grab Bucket Capacity Machine
Weight
Note Photo

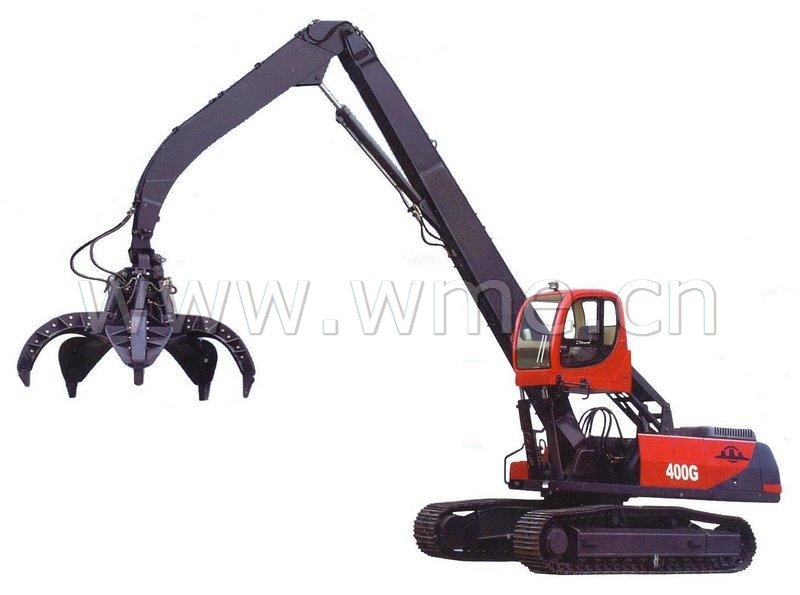

400G CUMMINS   6.5t   13.5m 40t special for grabbing steel
track type
WYS45C dual power   4t   13.8m 45t special for grabbing steel
track type
WYS50 dual power   4t   13.8m 50t special for grabbing steel
track type

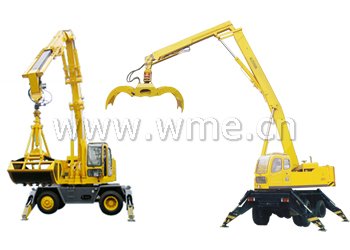

QLYS6DZ dual power 6t 3t 8~9m 3~6m

≤4m³ for grass, bamboo, timber
≤1.5m³ for coal, sand

15.1t

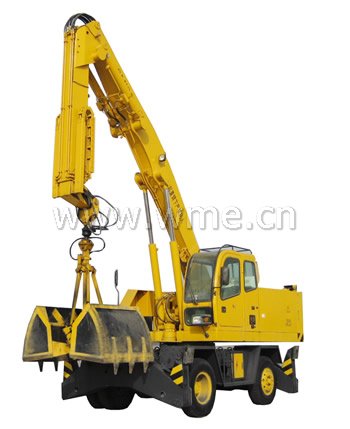

QLYS8DZ dual power 8t
QLYS10DZ dual power 10t 5t 10~12m 3~8m

≤6m³ for grass, bamboo, timber
≤2m³ for coal, sand

16t

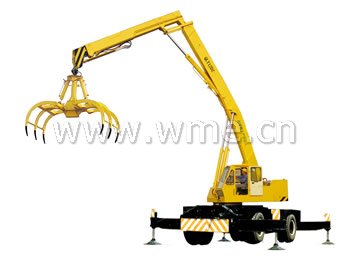

QLYS12DZ   12t

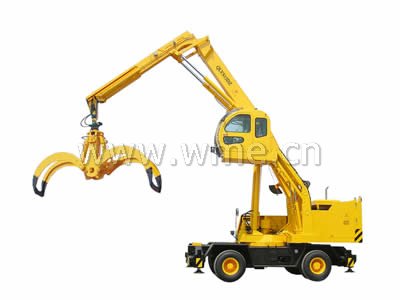

QLYS15DZ dual power 15t 7.5t 12~14m 3~10m

≤8m³ for grass, bamboo, timber
≤3m³ for coal, sand

27.8t

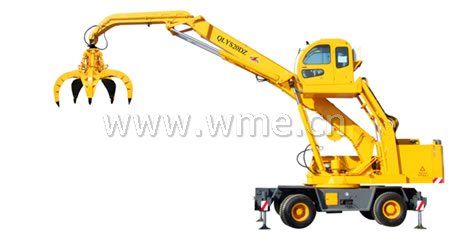

QLYS20DZ dual power 20t 10t 12~14m 3~12m

≤12m³ for grass, bamboo, timber
≤5m³ for coal, sand

37.5t





Grab Crane with straight stick

Model Engine Rated
Moment
Max.Lifting Weight
including grab bucket weight
Max. Lifting Weight
in traveling
Rated
Grabbing
Weight
Working
Height
Working
Radius
Grab
Bucket
Capacity
Machine
Weight
Note Photo
QLYD12HZ single electrical power 411.6kN.m 12t 2t 2t 12~22m 3~8m 1~6m³ 14.8t

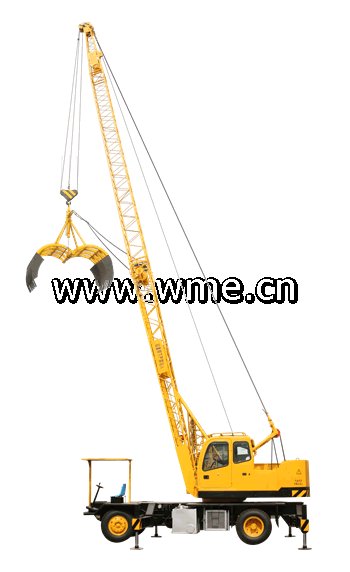

QLYS12HZ dual power 411.6kN.m 12t 2t 2t 12~22m 3~8m 1~6m³ 14.8t

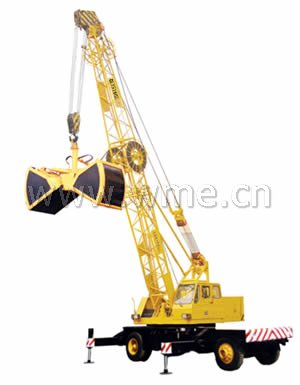

QLYS16HZ dual power 500kN.m16t 3t 3t 12~24m 3.5~10m 1.5~10m³ 20.8t

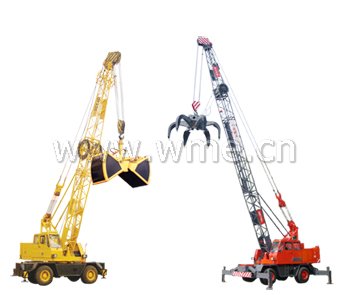

QLYS20HZ dual power 600kN.m 20t 6t 4t 10~26m 4~12m 3~12m³ 27.4t Mechanical Control
QLYS20HZ dual power 600kN.m 20t 6t 4t 10~26m 4~12m 3~12m³ 27.4t Pilot Control

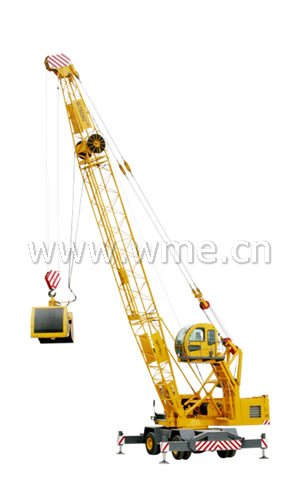

QLYS25HZ     25t   36.5t
QLYS30HZ dual power 1029kN.m 30t 8t 6t 12~30m 5~16m 4~16m³ 36.5t
QLYS35HZ     35t
QLYS50HZ dual power 1715kN.m 50t 12t 8t 12~40m 5~20m 5~20m³ 52.5t





Grab Crane with telestick

Model Engine Max. Lifting Weight
including grab bucket weight
Max.
Heaping
Height
Working
Radius
Grab Bucket Capacity Machine
Weight
Note Photo

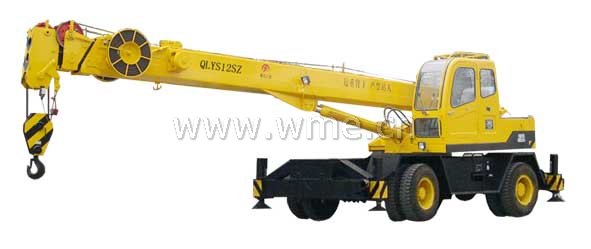

QLYS12SZ dual power 12t

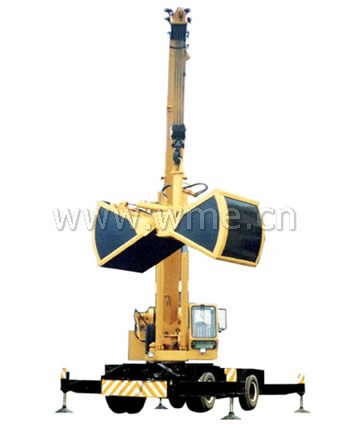

QLYS16SZ dual power 16t

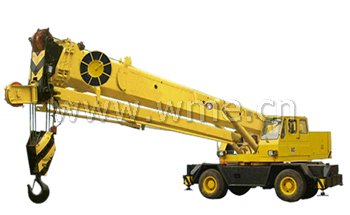

QLYS20SZ dual power 20t

QLYS6DY dual power 6t
QLYS15DY dual power 15t

SDQY12A dual power 12t

All specifications are approximate. Specifications are subject to change without notice.

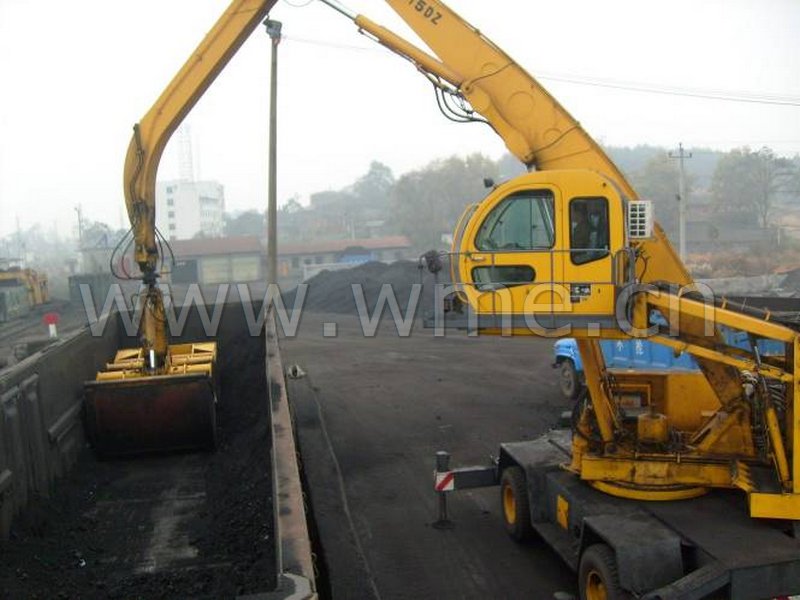

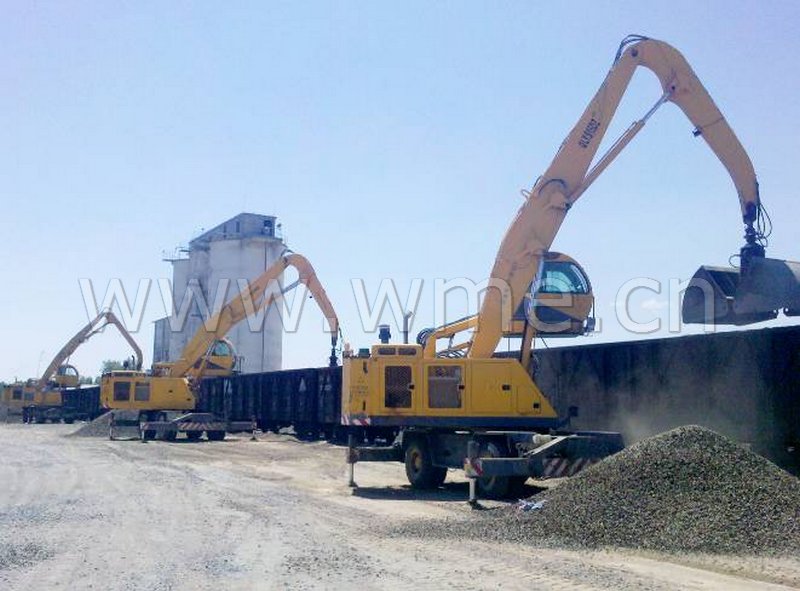

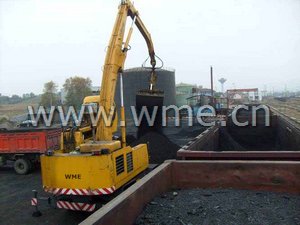

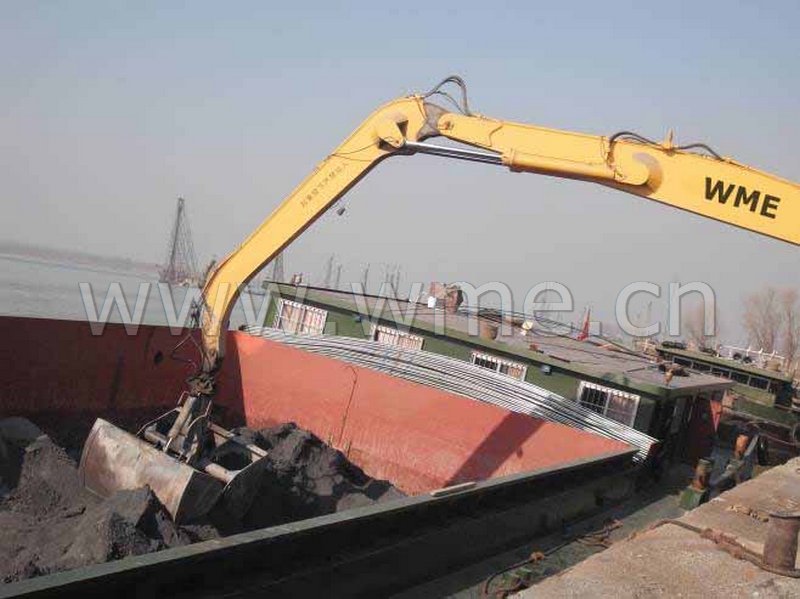

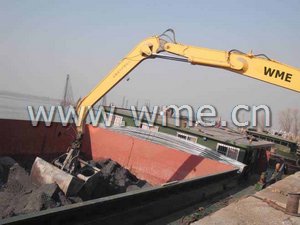

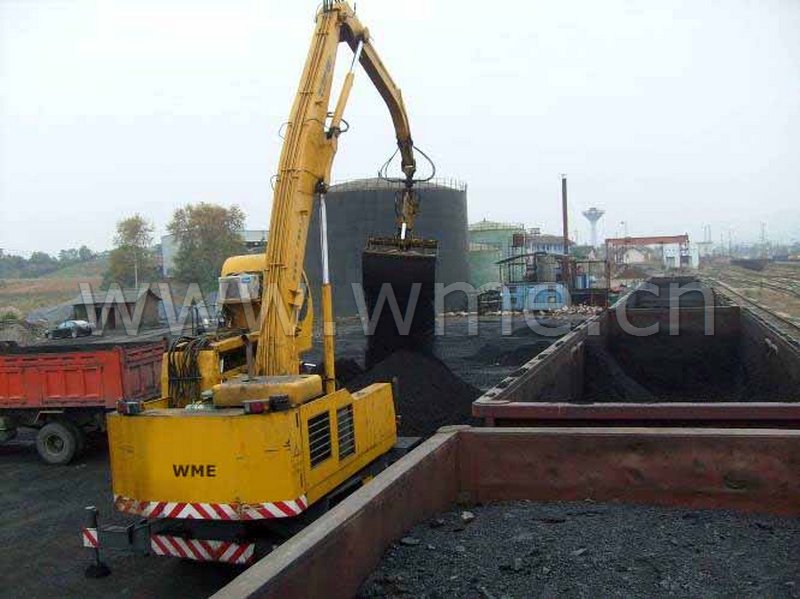

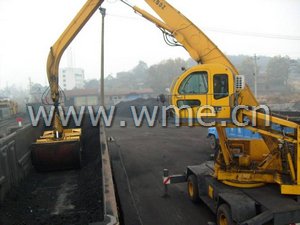

Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ





Knuckle boom Grab Crane QLYS10DZ
Knuckle boom Grab Crane QLYS10DZ
