Insert Bearing







UC204 UC305 UC205T UCX05
SA205 SA005 SB205 SER205
RA204 RB205 GRA205
HC205 NA205-14 NA305
UK205 UK305
ER205 ER205T CS205 ORAE205

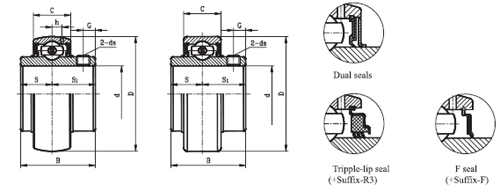

uc bearings
Bearing# Shaft Dia Dimensions(mm)/(in.) Basicload rating(N) Mass(kg)
d D B C S S1 G h ds Dynamic Cr Static Cor UC
(in.) (mm)
UC201S   12 40 27.4 14 11.5 15.9 4.2 3.5 M5X0.8 9550 4780 0.13
RB201-8S 1/2   40 27.4 14 11.5 15.9 4.2 3.5 10#-32UNF 9550 4780 0.13
UC220   100 180 108 40 42 66 16 12.1 M16X1.5 122000 92800
UC220-64 4   180 108 40 42 66 16 12.1 5/8-18UNF 122000 92800
RB203-11S 11/16   40 27.4 14 11.5 15.9 4.2 3.5 10#-32UNF 9550 4780 0.11
UC201   12 47 31 16 12.7 18.3 4.7 4.4 M6X1 12800 6650 0.23 0.24
RB201-8 1/2   47 31 16 12.7 18.3 4.7 4.4 1/4-28UNF 12800 6650 0.22 0.23
RB202   15 47 31 16 12.7 18.3 4.7 4.4 M6X1 12800 6650 0.21 0.22
RB202-10 5/8   47 31 16 12.7 18.3 4.7 4.4 1/4-28UNF 12800 6650 0.20 0.21
RB203   17 47 31 16 12.7 18.3 4.7 4.4 M6X11 12800 6650 0.19 0.20
RB203-11 11/16   47 31 16 12.7 18.3 4.7 4.4 1/4-28UNF 12800 6650 0.19 0.20

Bearing# Shaft Dia Dimensions(mm)/(in.) Basicload rating(N) Mass(kg)
d D B C S S1 G h ds Dynamic Cr Static Cor UC
(in.) (mm)
UC202S   15 40 27.4 14 11.5 15.9 4.2 3.5 M5X0.8 9550 4780 0.12
UC202-10S 5/8   40 27.4 14 11.5 15.9 4.2 3.5 10#-32UNF 9550 4780 0.12
UC203S   17 40 27.4 14 11.5 15.9 4.2 3.5 M5X0.8 9550 4780 0.11
UC203-11S 11/16   40 27.4 14 11.5 15.9 4.2 3.5 10#-32UNF 9550 4780 0.11
UC204-12 3/4   47 31 16 12.7 18.3 4.7 4.4 1/4-28UNF 12800 6650 0.19 0.20
UC204   20 47 31 16 12.7 18.3 4.7 4.4 M6X1 12800 6650 0.17 0.18
UC205-14 7/8   52 34 17 14.3 19.7 5.5 4.3 1/4-28UNF 14000 7880 0.23 0.26
RB205-15 15/16   52 34 17 14.3 19.7 5.5 4.3 1/4-28UNF 14000 7880 0.22 0.25
RB205   25 52 34 17 14.3 19.7 5.5 4.3 M6X1 14000 7880 0.21 0.24
RB205-16 1   52 34 17 14.3 19.7 5.5 4.3 1/4-28UNF 14000 7880 0.20 0.23
UC206-18 1-1/8   62 38.1 19 15.9 22.2 5.5 5 1/4-28UNF 19500 11200 0.34 0.38
RB206   30 62 38.1 19 15.9 22.2 5.5 5 M6X1 19500 11200 0.32 0.36
RB206-19 1-3/16   62 38.1 19 15.9 22.2 5.5 5 1/4-28UNF 19500 11200 0.31 0.35
RB206-20 1-1/4   62 38.1 19 15.9 22.2 5.5 5 1/4-28UNF 19500 11200 0.30 0.34
UC207-20 1-1/4   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.53 0.61
RB207-21 1-5/16   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.51 0.59
RB207-22 1-3/8   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.48 0.56
RB207   35 72 42.9 20 17.5 25.4 6.5 5.8 M8X1 25700 15200 0.47 0.54
RB207-23 1-7/16   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.45 0.52
UC208-24 1-1/2   80 49.2 21 19 30.2 8 6.3 5/16-24UNF 29600 18200 0.68 0.76
RB208-25 1-9/16   80 49.2 21 19 30.2 8 6.3 5/16-24UNF 29600 18200 0.65 0.74
RB208   40 80 49.2 21 19 30.2 8 6.3 M8X1 29600 18200 0.64 0.73
UC209-26 1-5/8   85 49.2 22 19 30.2 8 6.8 5/16-24UNF 31850 20800 0.78 0.88
RB209-27 1-11/16   85 49.2 22 19 30.2 8 6.8 5/16-24UNF 31850 20800 0.74 0.85
RB209-28 1-3/4   85 49.2 22 19 30.2 8 6.8 5/16-24UNF 31850 20800 0.70 0.81
RB209   45 85 49.2 22 19 30.2 8 6.8 M8X1 31850 20800 0.68 0.79
UC210-30 1-7/8   90 51.6 23 19 32.6 9 6.5 3/8-24UNF 35100 23200 0.87 0.98
RB210-31 1-15/16   90 51.6 23 19 32.6 9 6.5 3/8-24UNF 35100 23200 0.82 0.93
RB210   50 90 51.6 23 19 32.6 9 6.5 M10X1.25 35100 23200 0.80 0.90
RB210-32 2   90 51.6 23 19 32.6 9 6.5 3/8-24UNF 35100 23200 0.78
UC211-32 2   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.27 1.40
RB211-34 2-1/8   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.17 1.30
RB211   55 100 55.6 25 22.2 33.4 9 7.2 M10X1.25 43550 29200 1.12 1.24
RB211-35 2-3/16   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.10 1.22
UC212-36 2-1/4   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.67 1.88
RB212   60 110 65.1 27 25.4 39.7 10.5 8.2 M10X1.25 47800 32800 1.53 1.74
RB212-38 2-3/8   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.53 1.72
RB212-39 2-7/16   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.45 1.65
UC213-40 2-1/2   120 65.1 28 25.4 39.7 12 8 3/8-24UNF 57200 40000 1.94
UC213   65 120 65.1 28 25.4 39.7 12 8 M12X1.25 57200 40000 1.86
UC214-44 2-3/4   125 74.6 30 30.2 44.4 12 9 7/16-20UNF 60800 45000 2.06
UC214   70 125 74.6 30 30.2 44.4 12 9 M12X1.25 60800 45000 2.05
UC215-47 2-15/16   130 77.8 30 33.3 44.5 12 9 7/16-20UNF 66000 49500 2.30
UC215   75 130 77.8 30 33.3 44.3 12 9 M12X1.25 66000 49500 2.21
UC215-48 3   130 77.8 30 33.3 44.5 12 9 7/16-20UNF 66000 49500 2.13
UC216   80 140 82.6 33 33.3 49.3 14 10.3 M12X1.25 71500 54200 2.79
UC217-52 3-1/4   150 85.7 35 34.1 51.6 14 11 7/16-20UNF 83200 63800 3.60
UC217   85 150 85.7 35 34.1 51.6 14 11 M12X1.25 83200 63800 3.38
UC218-56 3-1/2   160 96 37 39.7 56.3 14 12 1/2-20UNF 95900 71500 4.56
UC218   90 160 96 37 39.7 56.3 14 12 M12X1.25 95900 71500 4.45

TOP

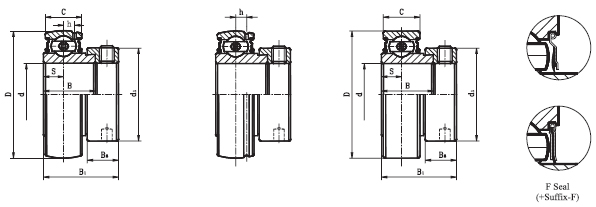

ra200 bearings

Bearing# Shaft Dia. Dimensions(mm)(in.) Basic load ratings(N) Mass(kg)
d D C h s B1 B B3 d1 Dynamic Cr Static Cor
(in.) (mm)
GRA201   12 40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.14
RA201-8 1/2   40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.14
RA202   15 40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.13
RA202-10 5/8   40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.13
RA203   17 40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.13
RA203-11 11/16   40 12 3.6 6.5 28.6 19.1 13.5 28.6 9550 4780 0.13
GRA204-12 3/4   47 14 4 7.5 30.9 21.4 13.5 33.3 12800 6650 0.18
RA204   20 47 14 4 7.5 30.9 21.4 13.5 33.3 12800 6650 0.15
GRA205-14 7/8   52 15 4.3 7.5 30.9 21.4 13.5 38.1 14000 7880 0.22
GRA205-15 15/16   52 15 4.3 7.5 30.9 21.4 13.5 38.1 14000 7880 0.21
GRA205   25 52 15 4.3 7.5 30.9 21.4 13.5 38.1 14000 7880 0.19
GRA205-16 1   52 15 4.3 7.5 30.9 21.4 13.5 38.1 14000 7880 0.18
GRA206-18 1-1/8   62 18 5 9 35.7 23.8 15.9 44.5 19500 11200 0.35
RA206   30 62 18 5 9 35.7 23.8 15.9 44.5 19500 11200 0.33
RA206-19 1-3/16   62 18 5 9 35.7 23.8 15.9 44.5 19500 11200 0.31
RA206-20 1-1/4   62 18 5 9 35.7 23.8 15.9 44.5 19500 11200 0.29
GRA207-20 1-1/4   72 19 5.7 9.5 38.9 25.4 17.5 55.6 25700 15200 0.56
RA207-21 1-5/16   72 19 5.7 9.5 38.9 25.4 17.5 55.6 25700 15200 0.53
RA207-22 1-3/8   72 19 5.7 9.5 38.9 35.4 17.5 55.6 25700 15200 0.51
RA207   35 72 19 5.7 9.5 38.9 25.4 17.5 55.6 25700 15200 0.50
RA207-23 1-7/16   72 19 5.7 9.5 38.9 25.4 17.5 55.6 25700 15200 0.48
GRA208-24 1-1/2   80 21 6.2 11 43.7 30.2 18.3 60.3 29600 18200 0.68
RA208-25 1-9/16   80 21 6.2 11 43.7 30.2 18.3 60.3 29600 18200 0.67
RA208   40 80 21 6.2 11 43.7 30.2 18.3 60.3 29600 18200 0.65
GRA209-26 1-5/8   85 22 6.8 11 43.7 30.2 18.3 63.5 31850 20800 0.82
RA209-27 1-11/16   85 22 6.8 11 43.7 30.2 18.3 63.5 31850 20800 0.76
RA209-28 1-3/4   85 22 6.8 11 43.7 30.2 18.3 63.5 31850 20800 0.73
RA209   45 85 22 6.8 11 43.7 30.2 18.3 63.5 31850 20800 0.69
GRA210-30 1-7/8   90 22 6.5 11 43.7 30.2 18.3 69.9 35100 23200 0.85
RA210-31 1-15/16   90 22 6.5 11 43.7 30.2 18.3 69.9 35100 23200 0.83
RA210   50 90 22 6.5 11 43.7 30.2 18.3 69.9 35100 23200 0.79
GRA211-32 2   100 24 7.2 12 48.4 32.5 20.7 76.2 43550 29200 1.18
RA211-34 2-1/8   100 24 7.2 12 48.4 32.5 20.7 76.2 43550 29200 0.96
RA211   55 100 24 7.2 12 48.4 32.5 20.7 76.2 43550 29200 0.87
RA211-35 2-3/16   100 24 7.2 12 48.4 32.5 20.7 76.2 43550 29200 0.81
GRA212-36 2-1/4   110 24 8 13.5 53.1 37.2 22.3 84.2 47800 32800 1.35
RA212   60 110 24 8 13.5 53.1 37.2 22.3 84.2 47800 32800 1.35
RA212-38 2-3/8   110 24 8 13.5 53.1 37.2 22.3 84.2 47800 32800 1.35
RA212-39 2-7/16   110 24 8 13.5 53.1 37.2 22.3 84.2 47800 32800 1.35

TOP

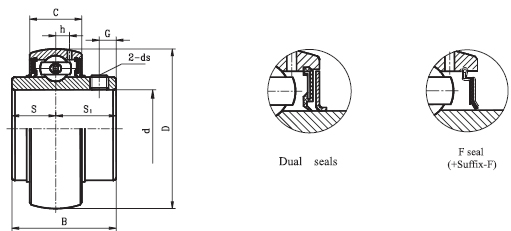

uc bearings

Bearing# Shaft Dia. Dimensions(mm)/(in.) Basicload rating(N) Mass(kg)
d D B C S S1 G h ds Dynamic Cr Static Cor
(in.) (mm)
UC305-14 7/8   62 38 21 15 23 6 6.2 1/4-28UNF 22360 11500 0.38
UC305-15 15/16   62 38 21 15 23 6 6.2 1/4-28UNF 22360 11500 0.36
UC305   25 62 38 21 15 23 6 6.2 M6X1 22360 11500 0.35
UC305-16 1   62 38 21 15 23 6 6.2 1/4-28UNF 22360 11500 0.34
UC306-18 1-1/8   72 43 24 17 26 6 6.5 1/4-24UNF 27000 15200 0.58
UC306   30 72 43 24 17 26 6 6.5 M6X1 27000 15200 0.56
UCX06-19 1-3/16   72 43 24 17 26 6 6.5 1/4-24UNF 27000 15200 0.56
UC307-20 1-1/4   80 48 25 19 29 8 7.2 5/16-24UNF 33500 19200 0.77
UC307-21 1-5/16   80 48 25 19 29 8 7.2 5/16-24UNF 33500 19200 0.74
UC307-22 1-3/8   80 48 25 19 29 8 7.2 5/16-24UNF 33500 19200 0.71
UC307   35 80 48 25 19 29 8 7.2 M8X1 33500 19200 0.71
UC308-24 1-1/2   90 52 28 19 33 10 8.5 3/8-24UNF 40560 24000 1.00
UC308-25 1-9/16   90 52 28 19 33 10 8.5 3/8-24UNF 40560 24000 0.98
UC308   40 90 52 28 19 33 10 8.5 M10X1.25 40560 24000 0.96
UC309-26 1-5/8   100 57 30 22 35 10 9 3/8-24UNF 53000 31800 1.36
UC309-27 1-11/16   100 57 30 22 35 10 9 3/8-24UNF 53000 31800 1.33
UC309-28 1-3/4   100 57 30 22 35 10 9 3/8-24UNF 53000 31800 1.30
UC309   45 100 57 30 22 35 10 9 M10X1.25 53000 31800 1.28
UC310-30 1-7/8   110 61 32 22 39 12 9.9 7/16-20UNF 61750 37800 1.74
UC310-31 1-15/16   110 61 32 22 39 12 9.9 7/16-20UNF 61750 37800 1.68
UC310   50 110 61 32 22 39 12 9.9 M12X1.25 61750 37800 1.65
UC311-32 2   120 66 34 25 41 12 10.6 7/16-20UNF 71500 44800 2.08
UC311-34 2-1/8   120 66 34 25 41 12 10.6 7/16-20UNF 71500 44800 1.90
UC311   55 120 66 34 25 41 12 10.6 M12X1.25 71500 44800 1.90
UC311-35 2-3/16   120 66 34 26 45 12 11.3 7/16-20UNF 71500 44800 1.87
UC312-36 2-1/4   130 71 36 26 45 12 11.3 7/16-20UNF 81600 51800 2.65
UC312   60 130 71 36 26 45 12 11.3 M12X1.25 81600 51800 2.60
UC312-38 2-3/8   130 71 36 26 45 12 11.3 7/16-20UNF 81600 51800 2.57
UC312-39 2-7/16   130 71 36 26 45 12 11.3 7/16-20UNF 81600 51800 2.50
UC313-40 2-1/2   140 75 38 30 45 12 12.1 7/16-20UNF 93860 60500 3.30
UC313   65 140 75 38 30 45 12 12.1 M12X1.25 93860 60500 3.25
UC314-44 2-3/4   150 78 40 31 47 12 12.8 7/16-20UNF 104260 68000 3.96
UC314   70 150 78 40 31 47 12 12.8 M12X1.25 104260 68000 3.95
UC315   75 160 82 42 32 50 14 13.5 M14X1.5 113360 76800 4.33
UC315-48 3   160 82 42 32 50 14 13.5 1/2-20UNF 113360 76800 4.24
UC316   80 170 86 44 34 52 14 14.5 M14X1.5 122850 86500 5.57
UC317-52 3-1/4   180 96 46 40 56 16 15.5 5/8-18UNF 132600 96500 7.08
UC317   85 180 96 46 40 56 16 15.5 M16X1.5 132600 96500 6.84
UC318-56 3-1/2   190 96 48 40 56 16 16.5 5/8-18UNF 143000 108000 8.03
UC318   90 190 96 48 40 56 16 16.5 M16X1.5 143000 108000 7.87
UC319   95 200 103 50 41 62 18 16.7 M16X1.5 156000 122000 8.91
UC319-60 3-3/4   200 103 50 41 62 18 16.7 5/8-18UNF 156000 122000 8.88
UC320   100 215 108 54 42 66 18 19 M18X1.5 171600 140000 11.2
UC320-64 4   215 108 54 42 66 18 19 5/8-18UNF 171600 140000 11.0
UC322   110 240 117 60 46 71 18 21 M18X1.5 158000 178000 14.3
UC324   120 260 126 64 51 75 18 22 M18X1.5 175000 208000 18.5
UC326 130   280 135 68 54 81 20 23 M20X1.5 195000 242000 23.0
UC328   140 300 145 72 59 86 20 25 M20X1.5 212000 272000 28.5

TOP

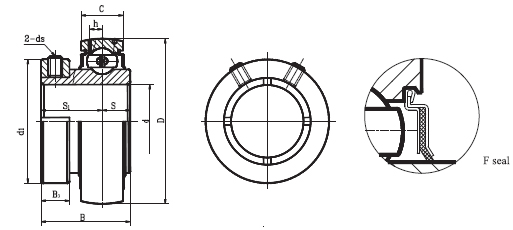

uc200t bearings

Bearing# Shaft Dia. Dimensions(mm)(in.) Basic load rating(N) Mass(kg)
d D B C S S1 B3 h d1(mm) ds Dynamic Cr Static Cor
(in.) (mm)
UC204-12T 3/4   47 31 16 12.7 18.3 8.0 4.4 34.9 10#-32UNF 12800 6650 0.20
UC204T   20 47 31 16 12.7 18.3 8.0 4.4 34.9 M5X0.8 12800 6650 0.20
UC205-13T 13/16   52 34 17 14.3 19.7 8.8 4.3 34.9 1/4-28UNF 14000 7880 0.24
UC205-14T 7/8   52 34 17 14.3 19.7 8.8 4.3 39.7 1/4-28UNF 14000 7880 0.24
UC205-15T 15/16   52 34 17 14.3 19.7 8.8 4.3 39.7 1/4-28UNF 14000 7880 0.24
UC205T   25 52 34 17 14.3 19.7 8.8 4.3 39.7 M6X1 14000 7880 0.24
UC205-16T 1   52 34 17 14.3 19.7 8.8 4.3 39.7 1/4-28UNF 14000 7880 0.24
UC206-16T 1   62 38.1 19 15.9 22.2 8.8 5 46.0 1/4-28UNF 19500 11200 0.35
UC206-17T 1-1/16   62 38.1 19 15.9 22.2 8.8 5 46.0 1/4-28UNF 19500 11200 0.35
UC206-18T 1-1/8   62 38.1 19 15.9 22.2 8.8 5 46.0 1/4-28UNF 19500 11200 0.35
UC206T   30 62 38.1 19 15.9 22.2 8.8 5 50.8 M6X1 19500 11200 0.35
UC206-19T 1-3/16   62 38.1 19 15.9 22.2 8.8 5 50.8 1/4-28UNF 19500 11200 0.35
UC206-20T 1-1/4   62 38.1 19 15.9 22.2 8.8 5 50.8 1/4-28UNF 19500 11200 0.35
UC207-19T 1-3/16   72 42.9 20 17.5 25.4 11.2 5.8 50.8 5/16-24UNF 25700 15200 0.55
UC207-20T 1-1/4   72 42.9 20 17.5 25.4 11.2 5.8 50.8 5/16-24UNF 25700 15200 0.55
UC207-21T 1-5/16   72 42.9 20 17.5 25.4 11.2 5.8 57.2 5/16-24UNF 25700 15200 0.55
UC207-22T 1-3/8   72 42.9 20 17.5 25.4 11.2 5.8 57.2 5/16-24UNF 25700 15200 0.55
UC207T   35 72 42.9 20 17.5 25.4 11.2 5.8 57.2 M8X1 25700 15200 0.55
UC207-23T 1-7/16   72 42.9 20 17.5 25.4 11.2 5.8 57.2 5/16-24UNF 25700 15200 0.55
UC208-23T 1-7/16   80 49.2 21 19 30.2 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.72
UC208-24T 1-1/2   80 49.2 21 19 30.2 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.72
UC208-25T 1-9/16   80 49.2 21 19 30.2 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.72
UC208T   40 80 49.2 21 19 30.2 11.2 6.3 63.5 M8X1 29600 18200 0.72
UC208-26T 1-5/8   80 49.2 21 19 30.2 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.72
UC209-24T 1-1/2   85 49.2 22 19 30.2 11.2 6.8 63.5 5/16-24UNF 31850 20800 0.82
UC209-26T 1-5/8   85 49.2 22 19 30.2 11.2 6.8 63.5 5/16-24UNF 31850 20800 0.82
UC209-27T 1-11/16   85 49.2 22 19 30.2 11.2 6.8 68.3 5/16-24UNF 31850 20800 0.82
UC209-28T 1-3/4   85 49.2 22 19 30.2 11.2 6.8 68.3 5/16-24UNF 31850 20800 0.82
UC209T   45 85 49.2 22 19 30.2 11.2 6.8 68.3 M8X1 31850 20800 0.82
UC209-29T 1-13/16   85 49.2 22 19 30.2 11.2 6.8 68.3 5/16-24UNF 31850 20800 0.82
UC210-27T 1-11/16   90 51.6 23 19 32.6 14.2 6.5 69.9 3/8-24UNF 35100 23200 0.95
UC210-28T 1-3/4   90 51.6 23 19 32.6 14.2 6.5 69.9 3/8-24UNF 35100 23200 0.95
UC210-29T 1-13/16   90 51.6 23 19 32.6 14.2 6.5 69.9 3/8-24UNF 35100 23200 0.95
UC210-30T 1-7/8   90 51.6 23 19 32.6 14.2 6.5 73.0 3/8-24UNF 35100 23200 0.95
UC210-31T 1-15/16   90 51.6 23 19 32.6 14.2 6.5 73.0 3/8-24UNF 35100 23200 0.95
UC210T   50 90 51.6 23 19 32.6 14.2 6.5 73.0 M10X1.25 35100 23200 0.95
UC210-32T 2   90 51.6 23 19 32.6 14.2 6.5 73.0 3/8-24UNF 35100 23200 0.95
UC211-31T 1-15/16   100 55.6 25 22.2 33.4 14.2 7.2 73.0 3/8-24UNF 43550 29200 1.35
UC211-32T 2   100 55.6 25 22.2 33.4 14.2 7.2 73.0 3/8-24UNF 43550 29200 1.35
UC211-33T 2-1/16   100 55.6 25 22.2 33.4 14.2 7.2 79.4 3/8-24UNF 43550 29200 1.35
UC211-34T 2-1/8   100 55.6 25 22.2 33.4 14.2 7.2 79.4 3/8-24UNF 43550 29200 1.35
UC211T   55 100 55.6 25 22.2 33.4 14.2 7.2 79.4 M10X1.25 43550 29200 1.35
UC211-35T 2-3/16   100 55.6 25 22.2 33.4 14.2 7.2 79.4 3/8-24UNF 43550 29200 1.35
UC211-36T 2-1/4   100 55.6 25 22.2 33.4 14.2 7.2 79.4 3/8-24UNF 43550 29200 1.35
UC212-35T 2-3/16   110 65.1 27 25.4 39.7 14.2 8.2 79.4 3/8-24UNF 47800 32800 1.72
UC212-36T 2-1/4   110 65.1 27 25.4 39.7 14.2 8.2 79.4 3/8-24UNF 47800 32800 1.72
UC212-37T 2-5/16   110 65.1 27 25.4 39.7 14.2 8.2 85.7 3/8-24UNF 47800 32800 1.72
UC212T   60 110 65.1 27 25.4 39.7 14.2 8.2 85.7 M10X1.25 47800 32800 1.72
UC212-38T 2-3/8   110 65.1 27 25.4 39.7 14.2 8.2 85.7 3/8-24UNF 47800 32800 1.72
UC212-39T 2-7/16   110 65.1 27 25.4 39.7 14.2 8.2 85.7 3/8-24UNF 47800 32800 1.72

TOP

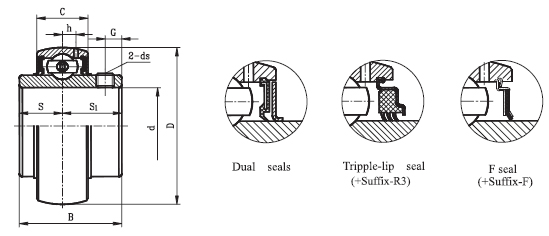

ucx bearings

Bearing# Shaft Dia. Dimensions(mm)/(in.) Basicload rating(N) Mass(kg)
d D B C S S1 G h ds Dynamic Cr Static Cor
(in.) (mm)
UCX05-14 7/8   62 38.1 19 15.9 22.2 6 5 1/4-28UNF 19500 11200 0.42
UCX05-15 15/16   62 38.1 19 15.9 22.2 6 5 1/4-28UNF 19550 11200 0.40
UCX05   25 62 38.1 19 15.9 22.2 6 5 M6X1 19500 11200 0.39
UCX05-16 1   62 38.1 19 15.9 22.2 6 5 1/4-28UNF 19500 11200 0.38
UCX06-18 1-1/8   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.58
UCX06   30 72 42.9 20 17.5 25.4 6.5 5.8 M8X1 25700 15200 0.58
UCX06-19 1-3/16   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.58
UCX06-20 1-1/4   72 42.9 20 17.5 25.4 6.5 5.8 5/16-24UNF 25700 15200 0.55
UCX07-22 1-3/8   80 49.2 21 19 30.2 8 6.3 5/16-24UNF 29600 18200 0.75
UCX07   35 80 49.2 21 19 30.2 8 6.3 M8X1 29600 18200 0.75
UCX07-23 1-7/16   80 49.2 20 17.5 25.4 6.5 5.8 5/16-24UNF 29600 18200 0.72
UCX08-24 1-1/2   85 49.2 22 19 30.2 8 6.8 5/16-24UNF 31850 20800 0.87
UCX08-25 1-9/16   85 49.2 22 19 30.2 8 6.8 5/16-24UNF 31850 20800 0.87
UCX08   40 85 49.2 22 19 30.2 8 6.8 M8X1 31850 20800 0.83
UCX09-26 1-5/8   90 51.6 23 19 32.6 9 6.5 3/8-24UHF 35100 23200 1.10
UCX09-27 1-11/16   90 51.6 23 19 32.6 9 6.5 3/8-24UNF 35100 23200 1.01
UCX09-28 1-3/4   90 51.6 23 19 32.6 9 6.5 3/8-24UNF 35100 23200 0.97
UCX09   45 90 51.6 23 19 32.6 9 6.5 M10X1.25 35100 23200 0.95
UCX10-30 1-7/8   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.43
UCX10-31 1-15/16   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.32
UCX10   50 100 55.6 25 22.2 33.4 9 7.2 M10X1.25 43550 29200 1.29
UCX10-32 2   100 55.6 25 22.2 33.4 9 7.2 3/8-24UNF 43550 29200 1.26
UCX11-34 2-1/8   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.95
UCX11   55 110 65.1 27 25.4 39.7 10.5 8.2 M10X1.25 47800 32800 1.80
UCX11-35 2-3/16   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.78
UCX11-36 2-1/4   110 65.1 27 25.4 39.7 10.5 8.2 3/8-24UNF 47800 32800 1.70
UCX12   60 120 65.1 28 25.4 39.7 12 8 M12X1.25 57200 40000 2.05
UCX12-38 2-3/8   120 65.1 28 25.4 39.7 12 8 3/8-24UNF 57200 40000 2.03
UCX12-39 2-7/16   120 65.1 28 25.4 39.7 12 8 3/8-24UNF 57200 40000 1.95
UCX13-40 2-1/2   125 74.6 30 30.2 44.4 12 9 7/16-20UNF 60800 45000 2.61
UCX13   65 125 74.6 30 30.2 44.4 12 9 M12X1.25 60800 45000 2.52
UCX14-44 2-3/4   130 77.8 30 33.3 44.5 12 9 7/16-20UNF 66000 49500 2.75
UCX14   70 130 77.8 30 33.3 44.5 12 9 M12X1.25 66000 49500 2.74
UCX15   75 140 82.6 33 33.3 49.3 14 10.3 M12X1.25 71500 54200 3.41
UCX15-48 3   140 82.6 33 33.3 49.3 14 10.3 7/16-20UNF 71500 54200 3.32
UCX16   80 150 85.7 35 34.1 51.6 14 11 M12X1.25 83200 63800 3.87
UCX17-52 3-1/4   160 96 37 39.7 56.3 14 12 7/16-20UNF 95900 71500 4.58
UCX17   85 160 96 37 39.7 56.3 14 12 M12X1.25 95900 71500 5.05
UCX18-56 3-1/2   170 104 39 42.9 61.1 14 12.1 1/2-20UNF 109000 82800 6.12
UCX18   90 170 104 39 42.9 61.1 14 12.1 M14X1.5 109000 82800 6.00
UCX20   100 190 117.5 44 49.2 68.3 16 13.7 M16X1.5 133000 105000 8.56
UCX20-64 4   190 117.5 44 49.2 68.3 16 13.7 5/8-18UNF 133000 105000 8.33

TOP

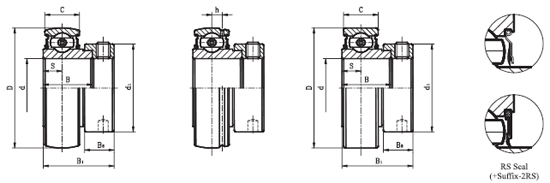

sa bearings

Bearing# Shaft Dia Dimensions(mm)/(in.) Basic load ratings(N) Mass(kg)
d D C B B1 S h B3 d1 Dynamic Cr Static Cor
(in.) (mm)
SA201   12 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.14
SA201-8 1/2   40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.14
SA202   15 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA202-10 5/8   40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA203   17 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA203-11 11/16   40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
CSA104-12 3/4   42 12 16.14 26.42 6   13.2 33 9380 5000 0.12
SA204-12 3/4   47 14 21.4 30.9 7.5 4 13.5 33.3 12800 6650 0.18
SA204   20 47 14 21.4 30.9 7.5 7 13.5 33.3 12800 6650 0.15
SA205-14 7/8   52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.21
SA205-15 15/16   52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.19
SA205   25 52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.19
SA205-16 1   52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.18
SA206-18 1-1/8   62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.35
SA206   30 62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.33
206-19 1-3/16   62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.31
SA206-20 1-1/4   62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.29
SA207-20 1-1/4   72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.56
SA207-21 1-5/16   72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.53
SA207-22 1-3/8   72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.51
SA207   35 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.50
SA207-23 1-7/16   72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.48
SA208-24 1-1/2   80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.68
SA208-25 1-9/16   80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.67
SA208   40 80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.65
SA209-26 1-5/8   85 19 30.2 43.7 11 6.5 18.3 63.5 31850 20800 0.76
SA209-27 1-11/16   85 19 30.2 43.7 11 6.8 18.3 63.5 31850 20800 0.73
SA209-28 1-3/4   85 19 30.2 43.7 11 6.8 18.3 63.5 31850 20800 0.69
SA209   45 85 19 30.2 43.7 11 6.5 18.3 63.5 31850 20800 0.69
SA210-30 1-7/8   90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.83
SA210-31 1-15/16   90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.79
SA210   50 90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.79
SA211-32 2   100 24 32.5 48.4 12 7.2 20.7 76.2 43550 29200 1.17
SA211-34 2-1/8   100 24 32.5 48.4 12 7.2 20.7 76.2 43550 29200 1.07
SA211   55 100 24 32.4 48.4 12 7.2 20.7 76.2 43550 29200 1.04
SA211-35 2-3/16   100 24 32.4 48.4 12 7.2 20.7 76.2 43550 29200 1.01
SA212-36 2-1/4   110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.30
SA212   60 110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.20
SA212-38 2-3/8   110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.09
SA212-39 2-7/16   110 24 33.4 49.3 12 8 22.3 84.2 47800 32800

TOP

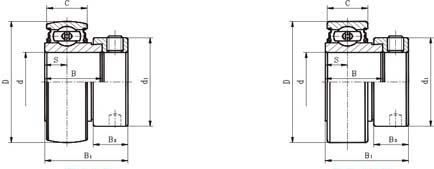

sa bearings

Bearing# Shaft Dia. Dimensions(mm)/(in.) Basic load ratings(N) Mass(kg)
d D C B B1 S B3 d1 Dynamic Cr Satic Cor
(in.) (mm)
SA004-12 3/4   42 12 16.7 24.6 6 11.1 29.8 9380 5020
SA004   20 42 12 16.7 24.6 6 11.1 29.8 9380 5020
SA005-14 7/8   47 12 17.5 25.4 6 11.9 36.1 10000 5850
SA005-15 15/16   47 12 17.5 25.4 6 11.9 36.1 10000 5850
SA005   25 47 12 17.5 25.4 6 11.9 36.1 10000 5850
SA005-16 1   47 12 17.5 25.4 6 11.9 36.1 10000 5850
SA006-18 1-1/8   55 13 18.5 26.5 6.5 11.9 42.5 13200 8300
SA006   30 55 13 18.5 26.5 6.5 11.9 42.5 13200 8300
SA006-19 1-3/16   55 13 18.5 26.5 6.5 11.9 42.5 13200 8300
SA006-20 1-1/4   55 13 18.5 26.5 6.5 11.9 42.5 13200 8300

TOP

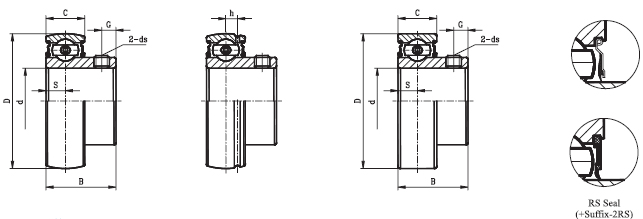

sb bearings

Bearing# Shaft Dia. Dimensions(mm)(in.) Basic load ratings(N) Mass(kg)
d D B C S h G ds Dynmic Cr Static Cor
(in.) (mm)
SB201   12 40 22 12 6 3.6 4 M5X0.8 9550 4780 0.10
SB201-8 1/2   40 22 12 6 3.6 4 10#-32UNF 9550 4780 0.10
SB202   15 40 22 12 6 3.6 4 M5X0.8 9550 4780 0.10
SB202-10 5/8   40 22 12 6 3.6 4 10#-32UNF 9550 4780 0.10
SB203   17 40 22 12 6 3.6 4 M5X0.8 9550 4780 0.10
SB203-11 11/16   40 22 12 6 3.6 4 10#-32UNF 9550 4780 0.10
SB204-12 3/4   47 25 14 7 4 5 1/4-28UNF 12800 6650 0.14
SB204   20 47 25 14 7 4 5 M6X1 12800 6650 0.14
SB205-14 7/8   52 27 15 7.5 4.3 5.5 1/4-28UNF 14000 7880 0.17
SB205-15 15/16   52 27 15 7.5 4.3 5.5 1/4-28UNF 14000 7800 0.17
SB205   25 52 27 15 7.5 4.3 5.5 M6X1 14000 7880 0.17
SB205-16 1   52 27 15 7.5 4.3 5.5 1/4-28UNF 14000 7880 0.17
SB206-18 1-1/8   62 30 16 8 5 6 1/4-28UNF 19500 11200 0.26
SB206   30 62 30 16 8 5 6 M6X1 19500 11200 0.26
SB206-19 1-3/16   62 30 16 8 5 6 1/4-28UNF 19500 11200 0.26
SB206-20 1-1/4   62 30 16 8 5 6 1/4-28UNF 19500 11200 0.26
SB207-20 1-1/4   72 32 17 8.5 5.7 6.5 1/4-28UNF 25700 15200 0.39
SB207-21 1-5/16   72 32 17 8.5 5.7 6.5 1/4-28UNF 25700 15200 0.39
SB207-22 1-3/8   72 32 17 8.5 5.7 6.5 1/4-28UNF 25700 15200 0.39
SB207   35 72 32 17 8.5 5.7 6.5 M6X1 25700 15200 0.39
SB207-23 1-7/16   72 32 17 8.5 5.7 6.5 1/4-28UNF 25700 15200 0.39
SB208-24 1-1/2   80 34 18 9 6.2 7 5/16-24UNF 29600 18200 0.54
SB208-25 1-9/16   80 34 18 9 6.2 7 5/16-24UNF 29600 18200 0.54
SB208   40 80 34 18 9 6.2 7 M8X1 29600 18200 0.54
SB209-26 1-5/8   85 41.2 19 10.2 6.5 8.2 5/16-24UNF 31850 20800 0.68
SB209-27 1-11/16   85 41.2 19 10.2 6.5 8.2 5/16-24UNF 31850 20800 0.68
SB209-28 1-3/4   85 41.2 19 10.2 6.5 8.2 5/16-24UNF 31850 20800 0.68
SB209   45 85 41.2 19 10.2 6.5 8.2 M8X1 31850 20800 0.68
SB210-30 1-7/8   90 43.5 20 10.9 6.5 9.2 5/16-24UNF 35100 23200 0.8
SB210-31 1-15/16   90 43.5 20 10.9 6.5 9.2 5/16-24UNF 35100 23200 0.8
SB210   50 90 43.5 20 10.9 6.5 9.2 M8X1 35100 23200 0.8
SB211-32 2   100 45.3 23 11.8 7.2 9.8 5/16-24UNF 43550 29200 1.00
SB211-34 2-1/8   100 45.3 23 11.8 7.2 9.8 5/16-24UNF 43550 29200 1.00
SB211   55 100 45.3 23 11.8 7.2 9.8 M8X1 43550 29200 1.00
SB211-35 2-3/16   100 45.3 23 11.8 7.2 9.8 5/16-24UNF 43550 29200 1.00
SB212-36 2-1/4   110 53.7 24 14.9 8 9.8 3/8-24UNF 47800 32800 1.3
SB212   60 110 53.7 24 14.9 8 9.8 M10X1.25 47800 32800 1.3
SB212-39 2-7/16   110 53.7 24 14.9 8 9.8 3/8-24UNF 47800 32800 1.3

TOP

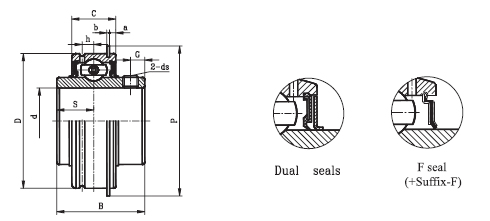

ser bearings

Bearing# shaft Dia. Dimensions(mm)/(in.) Basic load ratings (N) Mass(kg)
d D B C S a b p G h ds Dynamic Cr Static Cor
(in.) (mm)
SER202   15 47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
SER202-10 5/8   47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
SER203   17 47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
SER203-11 11/16   47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
SER204-12 3/4   47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
SER204   20 47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
SER205-14 7/8   52 34.9 19 13.1 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
SER205-15 15/16   52 34.9 19 13.1 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
SER205   25 52 34.9 19 13.1 2.38 1.07 57.9 5.5 4.5 M6X1 14000 7880 0.27
SER205-16 1   52 34.9 19 13.1 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
SER206-18 1-1/8   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
SER206   30 62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 M6X1 19500 11200 0.39
SER206-19 1-3/16   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
SER206-20 1-1/4   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
SER207-20 1-1/4   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
SER207-21 1-5/16   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
SER207-22 1-3/8   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
SER207   35 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 M8X1 25700 15200 0.61
SER207-23 1-7/16   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
SER208-24 1-1/2   80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 5/16-24UNF 29600 18200 0.81
SER208-25 1-9/16   80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 5/16-24UNF 29600 18200 0.81
SER208   40 80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 M8X1 29600 18200 0.81
SER209-26 1-5/8   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
SER209-27 1-11/16   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
SER209-28 1-3/4   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
SER209   45 85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 M8X1 31850 20800 0.90
SER210-30 1-7/8   90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 3/8-24UNF 35100 23200 0.96
SER210-31 1-15/16   90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 3/8-24UNF 35100 23200 0.96
SER210   50 90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 M10X1.25 35100 23200 0.96
SER211-32 2   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
SER211-34 2-1/8   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
SER211   55 100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 M10X1.25 43550 29200 1.41
SER211-35 2-3/16   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
SER212-36 2-1/4   110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 3/8-24UNF 47800 32800 1.95
SER212   60 110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 M10X1.25 47800 32800 1.95
SER212-38 2-3/8   110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 3/8-24UNF 47800 32800 1.95
SER212-39 2-7/16   110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 3/8-24UNF 47800 32800 1.95
SER214-40 2-1/2   125 74.6 35 30.2 3.96 2.77 134.7 12 9 7/16-20UNF 60800 45000 2.52
SER214-43 2-11/16   125 74.6 35 30.2 3.96 2.77 134.7 12 9 7/16-20UNF 60800 45000 2.52
SER214   70 125 74.6 35 30.2 3.96 2.77 134.7 12 9 M12X1.25 60800 45000 2.52
SER215-46 2-7/8   130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 7/16-20UNF 66000 49500 2.89
SER215-47 2-15/16   130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 7/16-20UNF 66000 49500 2.89
SER215   75 130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 M12X1.25 66000 49500 2.89
SER201   12 47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
SER201-8 1/2   47 31 15.9 10.3 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24

TOP

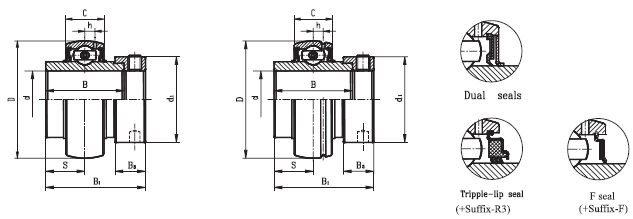

hc bearings

Bearing# shaft Dia. Dimensions(mm)/(in.) Eccentric collar Basic load ratings (N) Mass(kg)
d D C B S B1 B3 h d1 Dynamic Cr Static Cor
(in.) (mm)
HC202S   15 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A202S 9550 4780 0.22
HC202-10S 5/8   40 14 27.8 13.9 37.3 13.5 3.5 28.6 A202-10S 9550 4780 0.21
HC203S   17 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A203S 9550 4780 0.20
HC203-11S 11/16   40 14 27.8 13.9 37.3 13.5 3.5 28.6 A203-11S 9550 4780 0.19
HC204-12 3/4   47 16 34 17 43.5 13.5 4.4 33.3 A204-12 12800 6650 0.23
HC204   20 47 16 34 17 43.5 13.5 4.4 33.3 A204-12 12800 6650 0.22
NA205-14 7/8   52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-14 14000 7880 0.29
HC205-15 15/16   52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-15 14000 7880 0.27
HC205   25 52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205 14000 7880 0.25
HC205-16 1   52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-16 14000 7880 0.24
NA206-18 1-1/8   62 19 36.4 18.2 48.3 15.9 5 44.5 A206-18 19500 11200 0.43
HC206   30 62 19 36.4 18.2 48.3 15.9 5 44.5 A206 19500 11200 0.41
HC206-19 1-3/16   62 19 36.4 18.2 48.3 15.9 5 44.5 A206-19 19500 11200 0.40
HC206-20 1-1/4   62 19 36.4 18.2 48.3 15.9 5 44.5 A206-20 19500 11200 0.38
NA207-20 1-1/4   72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-20 25700 15200 0.68
HC207-21 1-5/16   72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-21 25700 15200 0.65
HC207-22 1-3/8   72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-22 25700 15200 0.61
HC207   35 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207 25700 15200 0.60
HC207-23 1-7/16   72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-23 25700 15200 0.58
NA208-24 1-1/2   80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208-24 29600 18200 0.83
HC208-25 1-9/16   80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208-25 29600 18200 0.79
HC208   40 80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208 29600 18200 0.78
NA209-26 1-5/8   85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-26 31850 20800 0.96
HC209-27 1-11/16   85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-27 31850 20800 0.91
HC209-28 1-3/4   85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-28 31850 20800 0.87
HC209   45 85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209 31850 20800 0.85
NA210-30 1-7/8   90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210-30 35100 23200 1.10
HC210-31 1-15/16   90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210-31 35100 23200 1.04
HC210   50 90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210 35100 23200 1.01
NA211-32 2   100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-32 43550 29200 1.58
HC211-34 2-1/8   100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-34 43550 29200 1.44
HC211   55 100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211 43550 29200 1.39
HC211-35 2-3/16   100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-35 43550 29200 1.36
NA212-36 2-1/4   110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-36 47800 32800 2.03
HC212   60 110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212 47800 32800 1.87
HC212-38 2-3/8   110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-38 47800 32800 1.85
HC212-39 2-7/16   110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-39 47800 32800 1.76
NA213-40 2-1/2   120 28 68.2 34.1 85.7 23.5 8 86 A213-40 57200 40000 2.51
HC213   65 120 28 68.2 34.1 85.7 23.5 8 86 A213 57200 40000 2.41
NA214-44 2-3/4   125 30 68.2 34.1 85.7 23.5 9 96.8 A214-44 60800 45000 2.58
HC214   70 125 30 68.2 34.1 85.7 23.5 9 96.8 A214 60800 45000 2.57
NA215   75 130 30 74.6 37.3 92.1 23.9 9 102 A215 66000 49500 2.84
HC215-48 3   130 30 74.6 37.3 92.1 23.9 9 102 A215-48 66000 49500 2.74
NA216   80 140 33 74.6 37.3 95.2 27 10.3 110 A216 71500 54200 3.12
NA201S   12 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A201S 9550 4780 0.23
HC201-8S 1/2   40 14 27.8 13.9 37.3 13.5 3.5 28.6 A201-8S 9550 4780 0.23
NA201   12 47 16 34 17 43.5 13.5 4.4 33.3 A201 12800 6650 0.28
HC201-8 1/2   47 16 34 17 43.5 13.5 4.4 33.3 A201-8 12800 6650 0.27
HC202   15 47 16 34 17 43.5 13.5 4.4 33.3 A202 12800 6650 0.26
HC202-10 5/8   47 16 34 17 43.5 13.5 4.4 33.3 A202-10 12800 6650 0.25

TOP

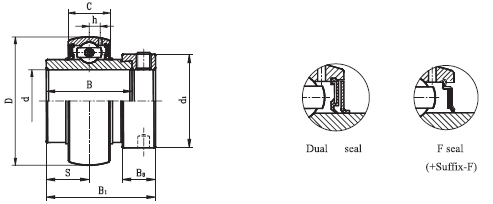

na300 bearings

Bearing# shaft Dia. Eccentric collar Basic load ratings (N) Mass(kg)
d D B C S B1 B3 h d1 Dynamic Cr Static Cor
(in.) (mm)
NA305-14 7/8   62 34.9 21 16.7 46.8 15.9 6.2 42.8 A305-14 22360 11500 0.46
NA305-15 15/16   62 34.9 21 16.7 46.8 15.9 6.2 42.8 A305-15 22360 11500 0.44
NA305   25 62 34.9 21 16.7 46.8 15.9 6.2 42.8 A305 22360 11500 0.43
NA305-16 1   62 34.9 21 16.7 46.8 15.9 6.2 42.8 A305-16 22360 11500 0.43
NA306-18 1-1/8   72 36.5 24 17.5 50 17.5 6.5 50 A306-18 27000 15200 0.71
NA306   30 72 36.5 24 17.5 50 17.5 6.5 50 A306 27000 15200 0.68
NA306-19 1-3/16   72 36.5 24 17.5 50 17.5 6.5 50 A306-19 27000 15200 0.68
NA307-20 1-1/4   80 38.1 25 18.3 51.6 17.5 7.2 55 A307-20 33500 19200 0.86
NA307-21 1-5/16   80 38.1 25 18.3 51.6 17.5 7.2 55 A307-21 33500 19200 0.83
NA307-22 1-3/8   80 38.1 25 18.3 51.6 17.5 7.2 55 A307-22 33500 19200 0.80
NA307   35 80 38.1 25 18.3 51.6 17.5 7.2 55 A307 33500 19200 0.80
NA307-23 1-7/16   80 38.1 25 18.3 51.6 17.5 7.2 55 A307-23 33500 19200 0.78
NA308-24 1-1/2   90 41.3 28 19.8 57.1 20.6 8.5 63.5 A308-24 40560 24000 1.13
NA308-25 1-9/16   90 41.3 28 19.8 57.1 20.6 8.5 63.5 A308-25 40560 24000 1.13
NA308   40 90 41.3 28 19.8 57.1 20.6 8.5 63.5 A308 40560 24000 1.08
NA309-26 1-5/8   100 42.9 30 19.8 58.7 20.6 9 70 A309-26 53000 31800 1.57
NA309-27 1-11/16   100 42.9 30 19.8 58.7 20.6 9 70 A309-27 53000 31800 1.52
NA309-28 1-3/4   100 42.9 30 19.8 58.7 20.6 9 70 A309-28 53000 31800 1.47
NA309   45 100 42.9 30 19.8 58.7 20.6 9 70 A309 53000 31800 1.45
NA310-30 1-7/8   110 49.2 32 24.6 66.6 22.2 9.9 76.2 A310-30 61750 37800 1.93
NA310-31 1-15/16   110 49.2 32 24.6 66.6 22.2 9.9 76.2 A310-31 61750 37800 1.88
NA310   50 110 49.2 32 24.6 66.6 22.2 9.9 76.2 A310 61750 37800 1.86
NA311-32 2   120 55.6 34 27.8 73 22.2 10.6 83 A311-32 71500 44800 2.49
NA311-34 2-1/8   120 55.6 34 27.8 73 22.2 10.6 83 A311-34 71500 44800 2.36
NA311   55 120 55.6 34 27.8 73 22.2 10.6 83 A311 71500 44800 2.30
NA311-35 2-3/16   120 55.6 34 27.8 73 22.2 10.6 83 A311-35 71500 44800 2.24
NA312-36 2-1/4   130 61.9 36 30.95 79.4 23.9 11.3 89 A312-36 81600 51800 2.95
NA312   60 130 61.9 36 30.95 79.4 23.9 11.3 89 A312 81600 51800 2.89
NA312-38 2-3/8   130 61.9 36 30.95 79.4 23.9 11.3 89 A312-38 81600 51800 2.89
NA312-39 2-7/16   130 61.9 36 30.95 79.4 23.9 11.3 89 A312-39 81600 51800 2.86
NA313-40 2-1/2   140 65.1 38 32.5 85.7 27 12.1 97 A313-40 93860 60500 3.85
NA313   65 140 65.1 38 32.5 85.7 27 12.1 97 A313 93860 60500 3.66
NA314-44 2-3/4   150 68.3 40 34.15 92.1 30.2 12.8 102 A314-44 104260 68000 4.40
NA314   70 150 68.3 40 34.15 92.1 30.2 12.8 102 A314 104260 68000 4.50
NA315   75 160 74.6 42 37.3 100 31.8 13.5 113 A315 113360 76800 5.34
NA315-48 3   160 74.6 42 37.3 100 31.8 13.5 113 A315-48 113360 76800 5.34
NA316   80 170 81 44 40.5 106.4 31.8 14.5 119 A316 122850 86500 6.70
NA317-52 3-1/4   180 84.1 46 42 109.5 31.8 15.5 127 A317-52 132600 96500 8.03
NA317   85 180 84.1 46 42 109.5 31.8 15.5 127 A317 132600 96500 7.96
NA318-56 3-1/2   190 87.3 48 43.6 115.9 36.5 16.5 133 A318-56 143000 108000 9.10
NA318   90 190 87.3 48 43.6 115.9 36.5 16.5 133 A318 143000 108000 9.10
NA319   95 200 93.7 50 46.8 122.3 36.5 16.7 140 A319 156000 122000 10.4
NA319-60 3-3/4   200 93.7 50 46.8 122.3 36.5 16.7 140 A319-60 156000 122000 10.4
NA320   100 215 100 54 50 128.6 36.5 19 146 A320 171600 140000 13.0
NA320-64 4   215 100 54 50 128.6 36.5 19 146 A320-64 171600 140000 13.0

TOP

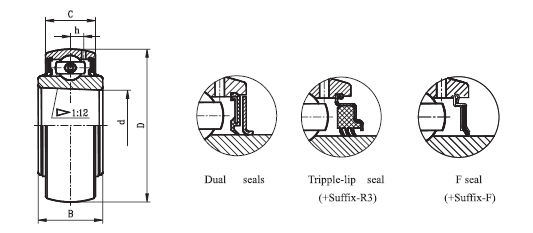

uk200 bearings

Bearing# Dimensions(mm)/(in.) Dimensions(mm)/(in.) Basic load ratings (N) Mass(kg)
d D B C h Dynamic Cr Static Cor
d
UK205   25 52 21 17 4.3 14000 7880 0.15
UK206   30 62 25 19 5 19500 11200 0.25
UK207   35 72 27 20 5.8 25700 15200 0.37
UK208   40 80 29 21 6.3 29600 18200 0.48
UK209   45 85 30 22 6.8 31850 20800 0.53
UK210   50 90 31 23 6.5 35100 23200 0.59
UK211   55 100 33 27 7.2 43550 29200 0.77
UK212   60 110 36 27 8.2 47800 32800 1.03
UK213   65 120 36 28 8 57200 40000 1.36
UK215   75 130 41 30 9 66000 49500 1.67
UK216   80 140 44 33 10.3 71500 54200 1.96
UK217   85 150 44 35 11 83200 63800 2.42
UK218   90 160 48 37 12 95900 71500 3.00

TOP

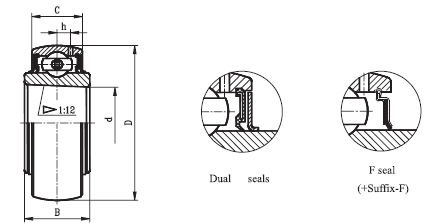

uk300 bearings

Bearing# Dimensions(mm)/(in.) Dimensions(mm)/(in.) Basic load ratings (N) Mass(kg)
d D B C h Dynamic Cr Static Cor
d
UK305   25 62 27 21 6.2 22360 11500 0.40
UK306   30 72 30 24 6.5 27000 15200 0.46
UK307   35 80 33 25 7.2 33500 19200 0.75
UK308   40 90 35 28 8.5 40560 24000 0.81
UK309   45 100 38 30 9 53000 31800 1.19
UK310   50 110 40 32 9.9 61750 37800 1.38
UK311   55 120 43 34 10.6 71500 44800 1.78
UK312   60 130 47 36 11.3 81600 51800 2.06
UK313   65 140 49 38 12.1 93860 60500 2.71
UK315   75 160 55 42 13.5 113360 76800 3.98
UK316   80 170 55 44 14.5 122850 86500 4.55
UK317   85 180 60 46 15.5 132600 96500 5.44
UK318   90 190 60 48 16.5 143000 10800 6.25
UK319   95 200 66 50 16.7 156000 122000 7.31
UK320   100 215 68 54 19 171600 140000 8.82

TOP

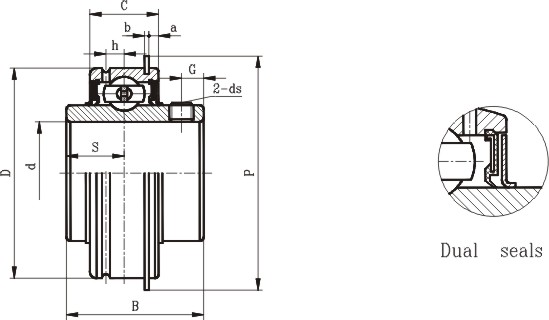

er200 bearings

Bearing# Shaft Dia. Dimensions(mm)/(in.) Basic load rating(N) Mass(kg)
d D B C S a b p G h ds Dynamic cr Static Cor
(in.) (mm)
ER202   15 47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
ER202-10 5/8   47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
ER203   17 47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
ER203-11 11/16   47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
ER204-12 3/4   47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
ER204   20 47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
ER205-14 7/8   52 34 19 14.3 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
ER205-15 15/16   52 34 19 14.3 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
ER205   25 52 34 19 14.3 2.38 1.07 57.9 5.5 4.5 M6X1 14000 7880 0.27
ER205-16 1   52 34 19 14.3 2.38 1.07 57.9 5.5 4.5 1/4-28UNF 14000 7880 0.27
ER206-18 1-1/8   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
ER206   30 62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 M6X1 19500 11200 0.39
ER206-19 1-3/16   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
ER206-20 1-1/4   62 38.1 22.2 15.9 3.18 1.65 67.7 5.5 5.3 1/4-28UNF 19500 11200 0.39
ER207-20 1-1/4   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
ER207-21 1-5/16   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16--24UNF 25700 15200 0.61
ER207-22 1-3/8   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
ER207   35 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 M8X1 25700 15200 0.61
ER207-23 1-7/16   72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25700 15200 0.61
ER208-24 1-1/2   80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 5/16-24UNF 29600 18200 0.81
ER208-25 1-9/16   80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 5/16-24UNF 29600 18200 0.81
ER208   40 80 49.2 27.8 19 3.18 1.65 86.6 8 6.3 M8X1 29600 18200 0.81
ER209-26 1-5/8   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
ER209-27 1-11/16   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
ER209-28 1-3/4   85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 5/16-24UNF 31850 20800 0.90
ER209   45 85 49.2 27.8 19 3.18 1.65 91.6 8 7.5 M8X1 31850 20800 0.90
ER210-30 1-7/8   90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 3/8-24UNF 35100 23200 0.96
ER310-31 1-15/16   90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 3/8-24UNF 35100 23200 0.96
ER210   50 90 51.6 28.6 19 3.18 2.41 96.5 9 6.8 M10X1.25 35100 23200 0.96
ER211-32 2   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
ER211-34 2-1/8   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
ER211   55 100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 M10X1.25 43550 29200 1.41
ER211-35 2-3/16   100 55.6 30.2 22.2 3.18 2.41 106.5 9 7.6 3/8-24UNF 43550 29200 1.41
ER212-36 2-1/4   110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 3/8-24UNF 47800 32800 1.95
ER212-38 2-3/8   110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 3/8-24UNF 47800 32800 1.95
ER212-39 2-7/16   110 65.1 318 25.4 3.18 2.41 116.6 10.5 8.4 3/8-20UNF 47800 32800 1.95
ER212   60 110 65.1 31.8 25.4 3.18 2.41 116.6 10.5 8.4 M10X1.25 47800 32800 1.95
ER214-40 2-1/2   125 74.6 35 30.2 3.96 2.77 134.7 12 9 7/16-20UNF 60800 45000 2.52
ER214-43 2-11/16   125 74.6 35 30.2 3.96 2.77 134.7 12 9 7/16-20UNF 60800 45000 2.52
ER214   70 125 74.6 35 30.2 3.96 2.77 134.7 12 9 M12X1.25 60800 45000 2.52
ER215-46 2-7/8   130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 7/16-20UNF 66000 49500 2.89
ER201   12 47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 M6X1 12800 6650 0.24
ER201-8 1/2   47 31 15.9 12.7 2.38 1.07 52.7 4.7 4.4 1/4-28UNF 12800 6650 0.24
ER215-47 2-15/16   130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 7/16-20UNF 66000 49500 2.89
ER215   75 130 77.8 38.1 33.3 3.96 2.77 139.7 12 9.5 M12X1.25 66000 49500 2.89

TOP

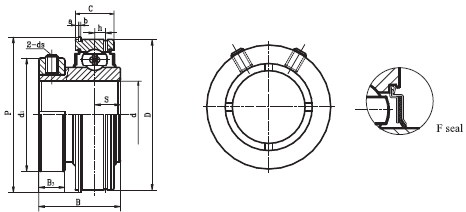

er200t bearings

Bearing# Shaft Dia. Dimensions(mm)(in.) Basic load rating(N) Mass(kg)
d D B C S a b p B3 h d1(mm) ds Dynamic Cr Static Cor
(in.) (mm)
ER204-12T 3/4   47 31 15.9 10.3 2.38 1.07 52.7 8.0 4.4 34.9 10#-32UNF 12800 6650 0.27
ER204T   20 47 31 15.9 10.3 2.38 1.07 52.7 8.0 4.4 34.9 M5X0.8 12800 6650 0.27
ER205-13T 13/16   52 34.9 19 13.1 2.38 1.07 57.9 8.8 4.5 34.9 1/4-28UNF 14000 7880 0.30
ER205-14T 7/8   52 34.9 19 13.1 2.38 1.07 57.9 8.8 4.5 39.7 1/4-28UNF 14000 7880 0.30
ER205-15T 15/16   52 34.9 19 13.1 2.38 1.07 57.9 8.8 4.5 39.7 1/4-28UNF 14000 7880 0.30
ER205T   25 52 34.9 19 13.1 2.38 1.07 57.9 8.8 4.5 39.7 M6X1 14000 7880 0.30
ER205-16T 1   52 34.9 19 13.1 2.38 1.07 57.9 8.8 4.5 39.7 1/4-28UNF 14000 7880 0.30
ER206-16T 1   62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 46.0 1/4-28UNF 19500 11200 0.42
ER206-17T 1-1/16   62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 46.0 1/4-28UNF 19500 11200 0.42
ER206-18T 1-1/8   62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 46.0 1/4-28UNF 19500 11200 0.42
ER206T   30 62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 50.8 M6X1 19500 11200 0.42
ER206-19T 1-3/16   62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 50.8 1/4-28UNF 19500 11200 0.42
ER206-20T 1-1/4   62 38.1 22.2 15.9 3.18 1.65 67.7 8.8 5.3 50.8 1/4-28UNF 19500 11200 0.42
ER207-19T 1-3/16   72 42.9 23.8 17.5 3.18 1.65 78.6 11.2 5.8 50.8 5/16-24UNF 25700 15200 0.66
ER207-20T 1-1/4   72 42.9 23.8 17.5 3.18 1.65 78.6 11.2 5.8 50.8 5/16-24UNF 25700 15200 0.66
ER207-21T 1-5/16   72 42.9 23.8 17.5 3.18 1.65 78.6 11.2 5.8 57.2 5/16-24UNF 25700 15200 0.66
ER207T   35 72 42.9 23.8 17.5 3.18 1.65 78.6 11.2 5.8 57.2 M8X1 25700 15200 0.66
ER207-23T 1-7/16   72 42.9 23.8 17.5 3.18 1.65 78.6 11.2 5.8 57.2 5/16-24UNF 25700 15200 0.66
ER208-23T 1-7/16   80 49.2 27.8 19 3.18 1.65 86.6 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.86
ER208-24T 1-1/2   80 49.2 27.8 19 3.18 1.65 86.6 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.86
ER208-25T 1-9/16   80 49.2 27.8 19 3.18 1.65 86.6 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.86
ER208T   40 80 49.2 27.8 19 3.18 1.65 86.6 11.2 6.3 63.5 M8X1 29600 18200 0.86
ER208-26T 1-5/8   80 49.2 27.8 19 3.18 1.65 86.6 11.2 6.3 63.5 5/16-24UNF 29600 18200 0.86
ER209-24T 1-1/2   85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 63.5 5/16-24UNF 31850 20800 0.95
ER209-26T 1-5/8   85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 63.5 5/16-24UNF 31850 20800 0.95
ER209-27T 1-11/16   85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 68.3 5/16-24UNF 31850 20800 0.95
ER209-28T 1-3/4   85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 68.3 5/16-24UNF 31850 20800 0.95
ER209T   45 85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 68.3 M8X1 31850 20800 0.95
ER209-29T 1-13/16   85 49.2 27.8 19 3.18 1.65 91.6 11.2 7.5 68.3 5/16-24UNF 31850 20800 0.95
ER210-27T 1-11/16   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 69.9 3/8-24UNF 35100 23200 1.03
ER210-28T 1-3/4   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 69.9 3/8-24UNF 35100 23200 1.03
ER210-29T 1-13/16   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 69.9 3/8-24UNF 35100 23200 1.03
ER210-30T 1-7/8   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 73.0 3/8-24UNF 35100 23200 1.03
ER210-31T 1-15/16   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 73.0 3/8-24UNF 35100 23200 1.03
ER210T   50 90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 73.0 M10X1.25 35100 23200 1.03
ER210-32T 2   90 51.6 28.6 19 3.18 2.41 96.5 14.2 6.8 73.0 3/8-24UNF 35100 23200 1.03
ER211-31T 1-15/16   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 73.0 3/8-24UNF 43550 29200 1.48
ER211-32T 2   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 73.0 3/8-24UNF 43550 29200 1.48
ER211-33T 2-1/16   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 79.4 3/8-24UNF 43550 29200 1.48
ER211-34T 2-1/8   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 79.4 3/8-24UNF 43550 29200 1.48
ER211T   55 100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 79.4 M10X1.25 43550 29200 1.48
ER211-35T 2-3/16   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 79.4 3/8-24UNF 43550 29200 1.48
ER211-36T 2-1/4   100 55.6 30.2 22.2 3.18 2.41 106.5 14.2 7.6 79.4 3/8-24UNF 43550 29200 1.48
ER212-35T 2-3/16   110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 79.4 3/8-24UNF 47800 32800 2.02
ER212-36T 2-1/4   110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 79.4 3/8-24UNF 47800 32800 2.02
ER212-37T 2-5/16   110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 85.7 3/8-24UNF 47800 32800 2.02
ER212T   60 110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 85.7 M10X1.25 47800 32800 2.02
ER212-38T 2-3/8   110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 85.7 3/8-24UNF 47800 32800 2.02
ER212-39T 2-7/16   110 65.1 31.8 25.4 3.18 2.41 116.6 14.2 8.4 85.7 3/8-24UNF 47800 32800 2.02
ER214-40T 2-1/2   125 74.6 35 30.2 3.96 2.77 134.7 14.2 9 100 3/8-24UNF 60800 45000 2.66

TOP









cs200 bearings

Bearing# Dimensions(mm)/(in.) Dimensions(mm) Basic load ratings (N) Mass(kg)
d D B r(min) Dynamic Cr Static Cor
d
CS203   17 40 12 0.6 9580 4780 0.050
CS204   20 47 14 1 12800 6650 0.095
CS205   25 52 15 1 14000 7880 0.11
CS206   30 62 16 1 19500 11500 0.18
CS207   35 72 17 1.1 25500 15200 0.25
CS208   40 80 18 1.1 29500 18000 0.32
CS209   45 85 19 1.1 31500 20800 0.37
CS210   50 90 20 1.1 35000 23200 0.41

TOP

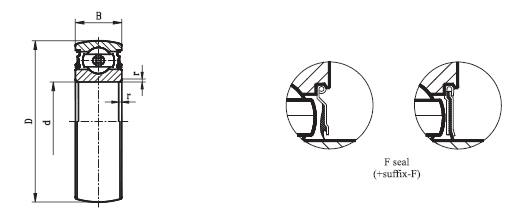

orae200 bearings

Bearing# Shaft Dia. Dimensions(mm) Basicload ratings(N) Mass(kg)
d D B r(min) Dynamic Static Cor
d
ORAE203   17 40 12 0.6 9580 4780 0.05
ORAE204   20 47 14 0.6 12800 6650 0.095
ORAE205   25 52 15 0.6 14000 7880 0.11
ORAE206   30 62 18 0.6 19500 11500 0.21
ORAE207   35 72 19 1.1 25700 15200 0.29
ORAE208   40 80 22 1.1 29500 18200 0.38
ORAE209   45 85 22 1.1 31850 20800 0.44

TOP



Agricultural Bearing | Disc Harrow Bearing | Insert Bearing | Pressed Housing | Pillow Block | Plummer Block


WUHAN MACHINE EQUIPMENT CO LTD © 2016
