Plough Disc

H.S. 8432 9000 00

(material: spring steel sheet 65Mn = ASTM1566 = SAE1066)

Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade

Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade

Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough BladePlough Disc - Plough Disk - Disc Plough Blade - Disk Plough BladePlough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade
Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough BladePlough Disc - Plough Disk - Disc Plough Blade - Disk Plough BladePlough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade
Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade Plough Disc - Plough Disk - Disc Plough Blade - Disk Plough Blade

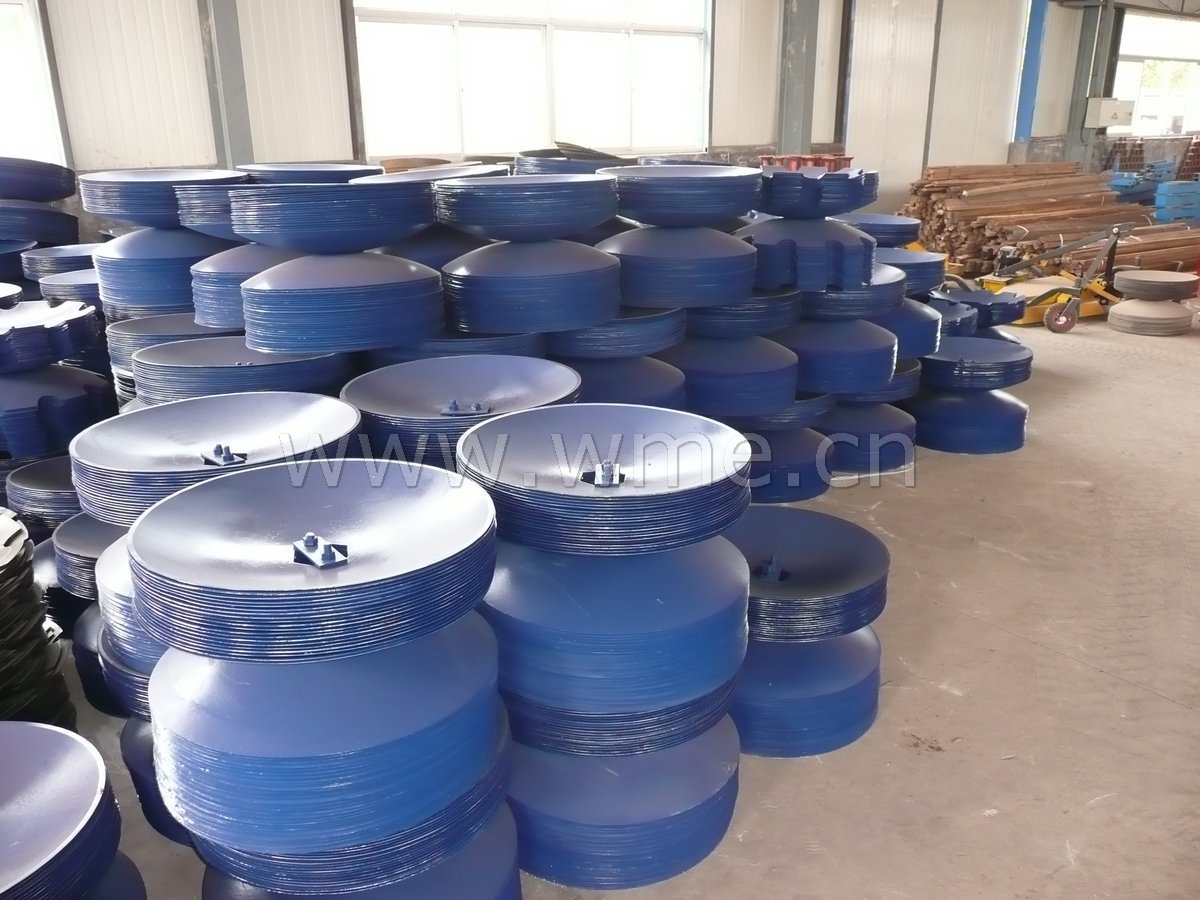

Plough disc will be assembled for disc plough. Our plough disc are with material of 65Mn. This quality plough disc have been exported to many countries including Europe and North America.

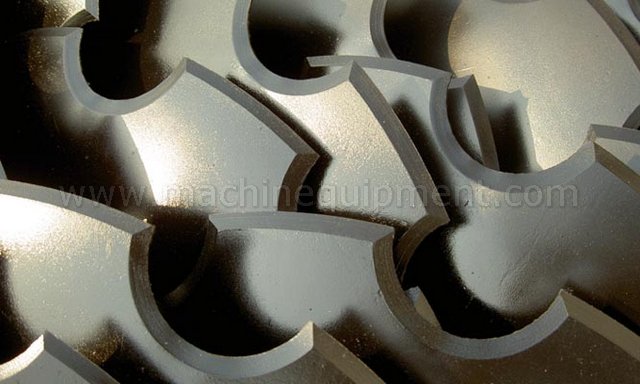

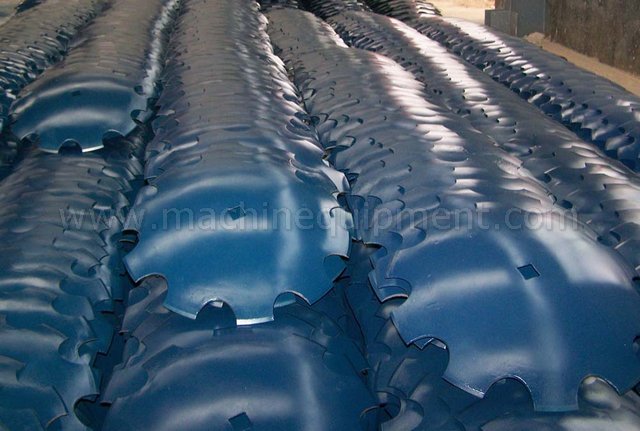

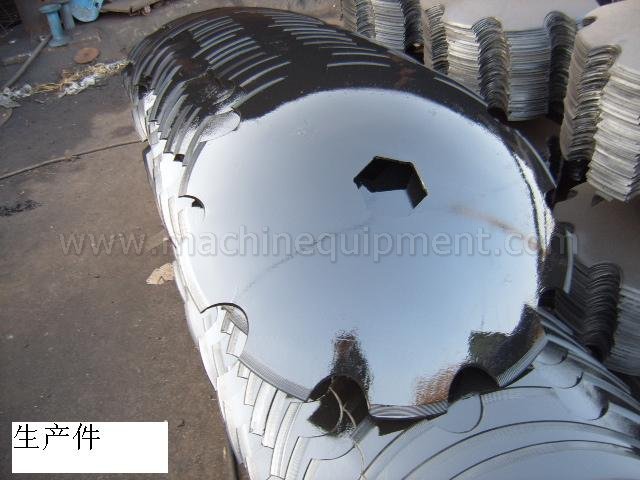

There are many kinds of plough disc with different appearance: plain plough disc, notched plough disc, scallop plough disc... Besides the plough disc may be with many different hole: round, square, hex, ...

The material cost affect much on plough disc. If any requirement, pls tell us the plough disc diameter, thickness, concavity, destination port, and better with drawing, so that we can make accurate calculation for your requirement.



Diameter Concavity ( Curve depth ) Thickness
mm inch mm inch mm inch
305 12 19   3
330 13 25   3
355 14 38   3
410 16 38; 43; 46; 48; 51   3; 3.5; 4
435 17 57   3; 3.5; 4
460 18 38; 44; 52; 57; 63   3; 3.5; 4
485 19 57   3.5; 4
510 20 0; 44; 51; 57; 63; 70   3.5; 4; 5
535 21 63; 70   3.5; 4; 5
560 22 0; 54; 57; 63; 70; 76; 79; 83; 89   3.5; 4; 5; 6
585 23 73; 83; 89   3.5; 4; 5; 6
610 24 63;70;73;76;76;81;83;89;95;101;108   3.5; 4; 5; 6
660 26 57;63;76;83;86;89;102;108;114   5; 6; 7; 8
710 28 85; 102; 108; 114; 127; 130   5; 6; 7; 8
760 30     6; 7; 8; 9; 10
810 32     8; 9; 10; 12
910 36     10; 12
