Pressed Housing

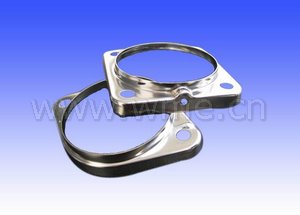

Stainless Steel Housing

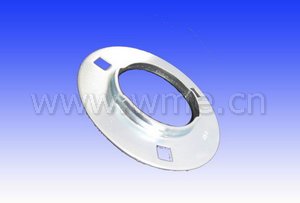

SLFE3

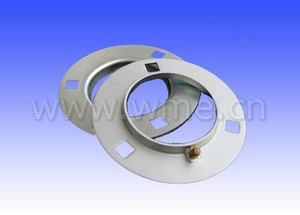

Pressed Housing With Nipple

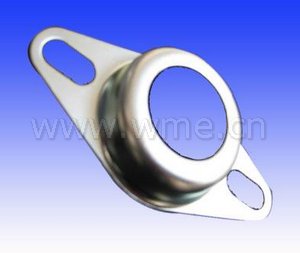

SH728

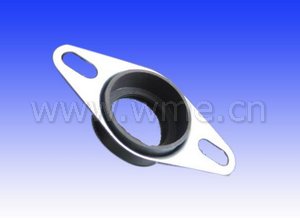

SH728 Backside

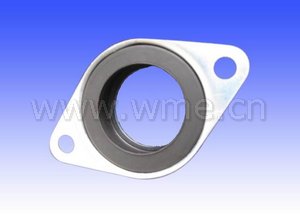

RSMF25

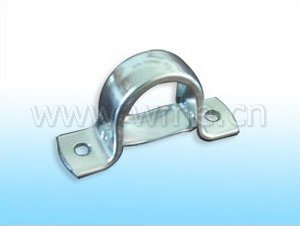

PP200 series

Pressed Housing PP200series.jpg



Housing# For Bearing# Bearing Unit#
PP203 UC203, SA203, SB203 UCPP203, SAPP203, SBPP203
PP204 UC204, SA204, SB204 UCPP204, SAPP204, SBPP204
PP205 UC205, SA205, SB205 UCPP205, SAPP205, SBPP205
PP206 UC206, SA206, SB206 UCPP206, SAPP206, SBPP206
PP207 UC207, SA207, SB207 UCPP207, SAPP207, SBPP207
PP208 UC208, SA208, SB208 UCPP208, SAPP208, SBPP208

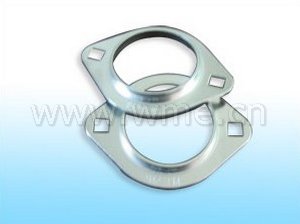

PFL200 series

Pressed Housing PFL200series.jpg



Housing# For Bearing# Bearing Unit#
PFL203 UC203, SA203, SB203 UCPFL203, SAPFL203, SBPFL203
PFL204 UC204, SA204, SB204 UCPFL204, SAPFL204, SBPFL204

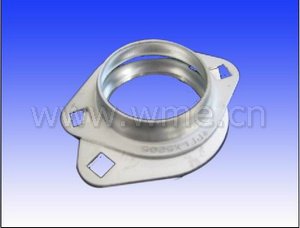

PFL205 UC205, SA205, SB205 UCPFL205, SAPFL205, SBPFL205
PFL206 UC206, SA206, SB206 UCPFL206, SAPFL206, SBPFL206
PFL207 UC207, SA207, SB207 UCPFL207, SAPFL207, SBPFL207
PFL208 UC208, SA208, SB208 UCPFL208, SAPFL208, SBPFL208

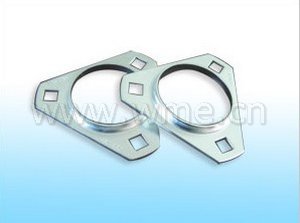

PFT200 series

Pressed Housing PFT200series.jpg



Housing# For Bearing# Bearing Unit#
PFT203 UC203, SA203, SB203 UCPFT203, SAPFT203, SBPFT203
PFT204 UC204, SA204, SB204 UCPFT204, SAPFT204, SBPFT204
PFT205 UC205, SA205, SB205 UCPFT205, SAPFT205, SBPFT205
PFT206 UC206, SA206, SB206 UCPFT206, SAPFT206, SBPFT206
PFT207 UC207, SA207, SB207 UCPFT207, SAPFT207, SBPFT207
PFT208 UC208, SA208, SB208 UCPFT208, SAPFT208, SBPFT208

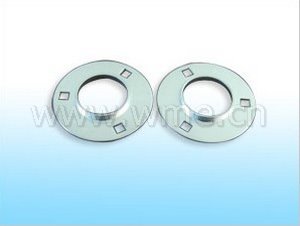

PF200 series

Pressed Housing PF200series.jpg



Housing# For Bearing# Bearing Unit#
PF203 UC203, SA203, SB203 UCPF203, SAPF203, SBPF203
PF204 UC204, SA204, SB204 UCPF204, SAPF204, SBPF204
PF205 UC205, SA205, SB205 UCPF205, SAPF205, SBPF205
PF206 UC206, SA206, SB206 UCPF206, SAPF206, SBPF206
PF207 UC207, SA207, SB207 UCPF207, SAPF207, SBPF207
PF208 UC208, SA208, SB208 UCPF208, SAPF208, SBPF208

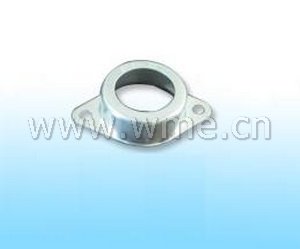

RCSMF series

Pressed Housing RCSMFseries.jpg



Housing# Dimension (mm) Weight (kg)
d H U A A2 B1 d3 max J L N S V
RCSMF12 12 114 34.8 27 12.7 28.6 28 92 70 10.5 1.5 68 0.27
RCSMF15 15 114 34.8 27 12.7 28.6 28 92 70 10.5 1.5 68 0.27
RCSMF17 17 114 34.8 27 12.7 28.6 28 92 70 10.5 1.5 68 0.27
RCSMF20 20 114 36.2 27 12.7 31 33 92 70 10.5 1.5 68 0.32
RCSMF25 25 114 36.2 27 12.7 31 37.5 92 70 10.5 1.5 68 0.33
RCSMF30 30 114 35 27 15 26.5 42.5 92 70 10.5 1.5 68 0.32
