WME >> Lifting Equipment >> Truck Crane



Truck Crane

H.S.8705 1091 00



truck crane, china truck crane, china mob crane, china mobile crane, china travel crane, china traveling crane, china lorry crane, china lori crane, china truck with crane, china crane lorry, china crane lorries, china mob cranes, china mobile cranes, china truck cranes, china travel cranes, china traveling cranes, china lorry cranes, china lori cranes, china truck with cranes, china cranes lorry, china cranes lorries, QY12, QY16C, QY16D, QY25, QY25K, QY25K5, QY30K5, QY35K5, QY40K, QY50B, QY50K, QY60K, QY70K, QY80K, QY100K, QY130K, LT1020, LT1025, LT1036, LT1050, LT1055, LT1070, LT1130



* The truck crane are able to travel on highways, eliminating the need for special equipment to transport the crane. When working on the jobsite, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.

For different place, Vehicles are manufactured in left-hand drive (LHD) or right-hand drive (RHD) configurations, referring to the placement of the driving seat and controls within the vehicle. China default is left-hand drive (LHD). If your default and preference is right-hand drive (RHD), please advise us in your enquiry, or we will take it as China default left-hand drive (LHD).



Model Engine Power Chassis Max.Weight
@lifting height
Max height
with weight
Machine Weight Dimension
L * W * H
Note Photo
QY25C WEICHAI 199kW(257hp) WUYUE     28.45t 12890*2500*3300mm   truck crane QY25C.jpg (49KB)

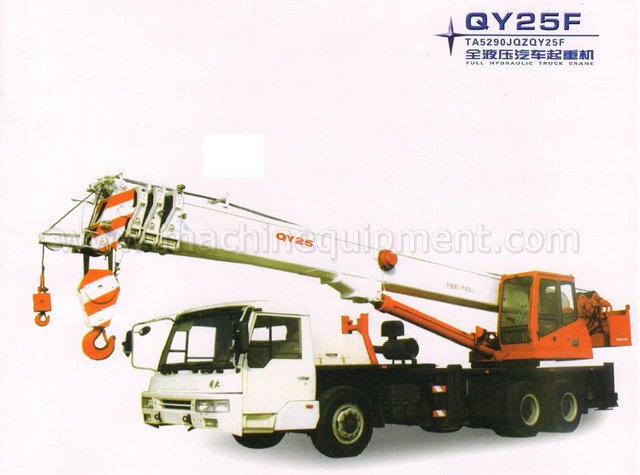

QY25F (old) Yiqi 192kW(257hp) Jiefang 25t@10.6m 32.2m
with 2.7t
29.2t   old truck crane QY25F.jpg (54KB)

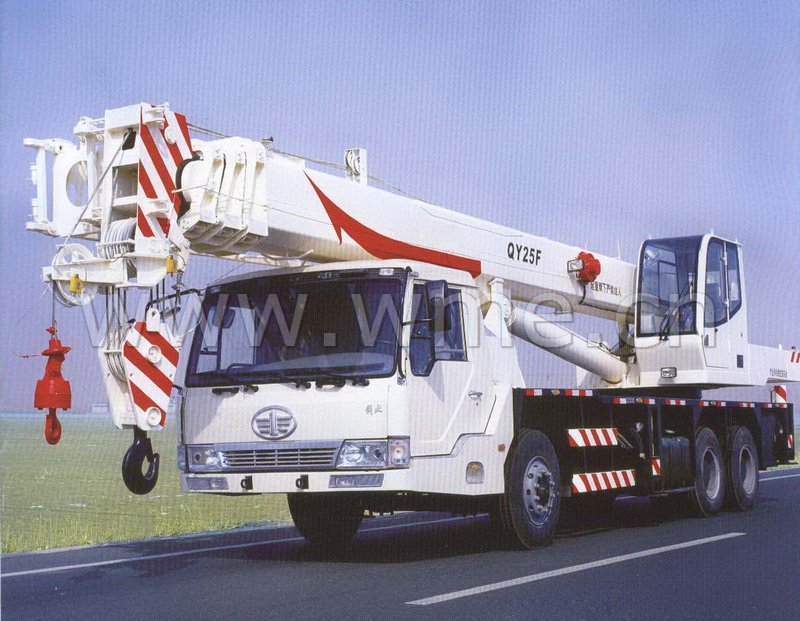

QY25F (new) Yiqi 192kW(257hp) Jiefang 25t@10.25m 31.75m
with 6t
30t 12900*2490*3460mm new, upgraded truck crane QY25F.jpg (150KB)

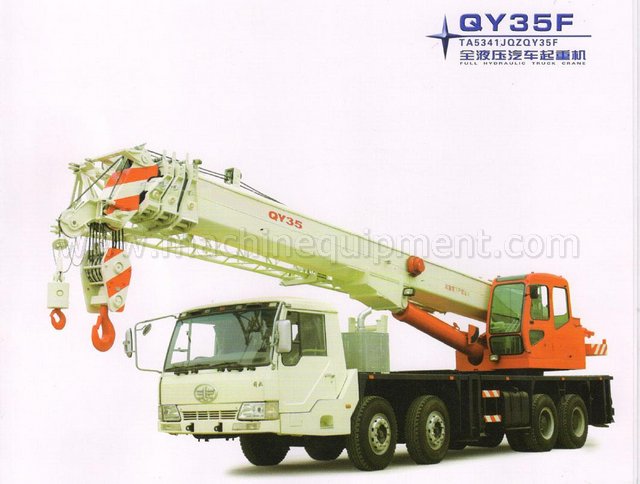

QY35F WEICHAI 206kW(276hp) Jiefang 35t@10.7m 33.65m
with 5.4t
34t   truck crane QY35F.jpg (57KB)

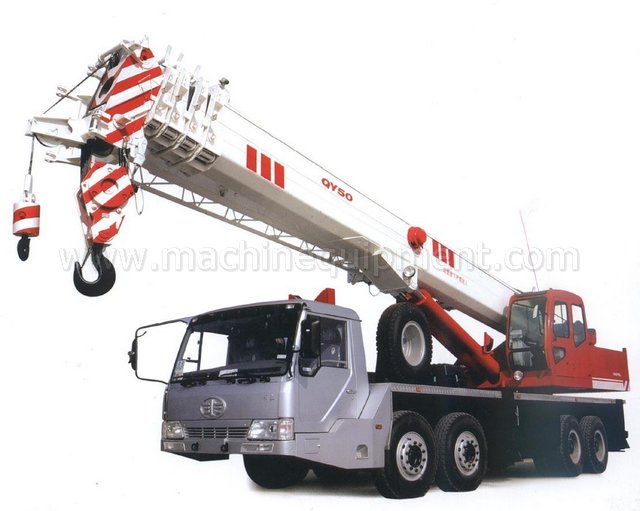

QY50F Yiqi 239kW(320hp)
Jiefang 50.5t@11m 40.2m
with 3.6t
42t truck crane QY50F.jpg (57KB)

LT1020 WEICHAI 175kW(235hp) QZC5302J 20t@10.45m 39.31m
with 2.5t

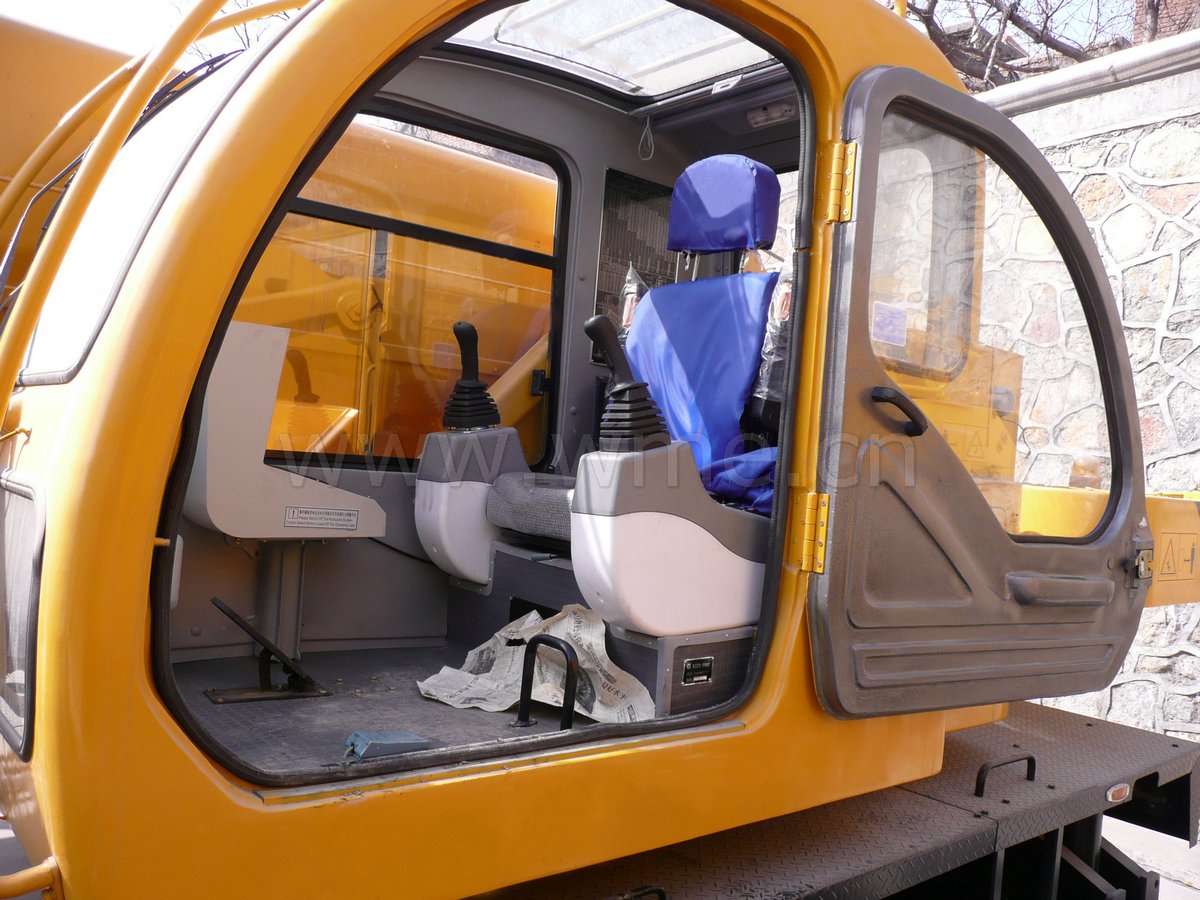

27.8t 12715*2500*3530mmPilot Control
LT1025 WEICHAI 206kW(276hp) QZC5340J 25t@10.51m 40.44m
with 2.5t
29t 12750*2500*3504mm Pilot Control
LT1036 CUMMINS 216kW(290hp) QZC5380J 40t@11.11m 51.24m
with 3t
36.7t 13412*2500*3583mmPilot Control
LT1050 WEICHAI 243kW(326hp) QZC5430J 60t@10.94m 55.78m
with 3.5t
42.5t 13350*2750*3655mmPilot Control
LT1055 CUMMINSx2 112kW(150hp)
/246kW(330hp)
QZC5440J 65t@10.94m 55.78m
with 3.5t
43.7t 13300*2750*3660mm Pilot Control
LT1070 CUMMINSx2 112kW(150hp)
/261kW(350hp)
QZC5460J80t@11.3m 57.2m
with 4t
46t 13750*2750*3625mm Pilot Control
LT1130 CUMMINSx2 125kW(168hp)
/392kW(526hp)
QZC5700J 130t@13m 63.6m
with 6t
70t 15765*3050*3950mm Pilot Control

QY8B 8t 10.5t 9450*2400*3180mm3-section boom
QY8D-I 8t 10t 9080*2400*3180mm3-section boom
QY12 12t 16t 10200*2500*3200mm3-section boom
QY12B 12t 16t 10200*2500*3200mm 3-section boom

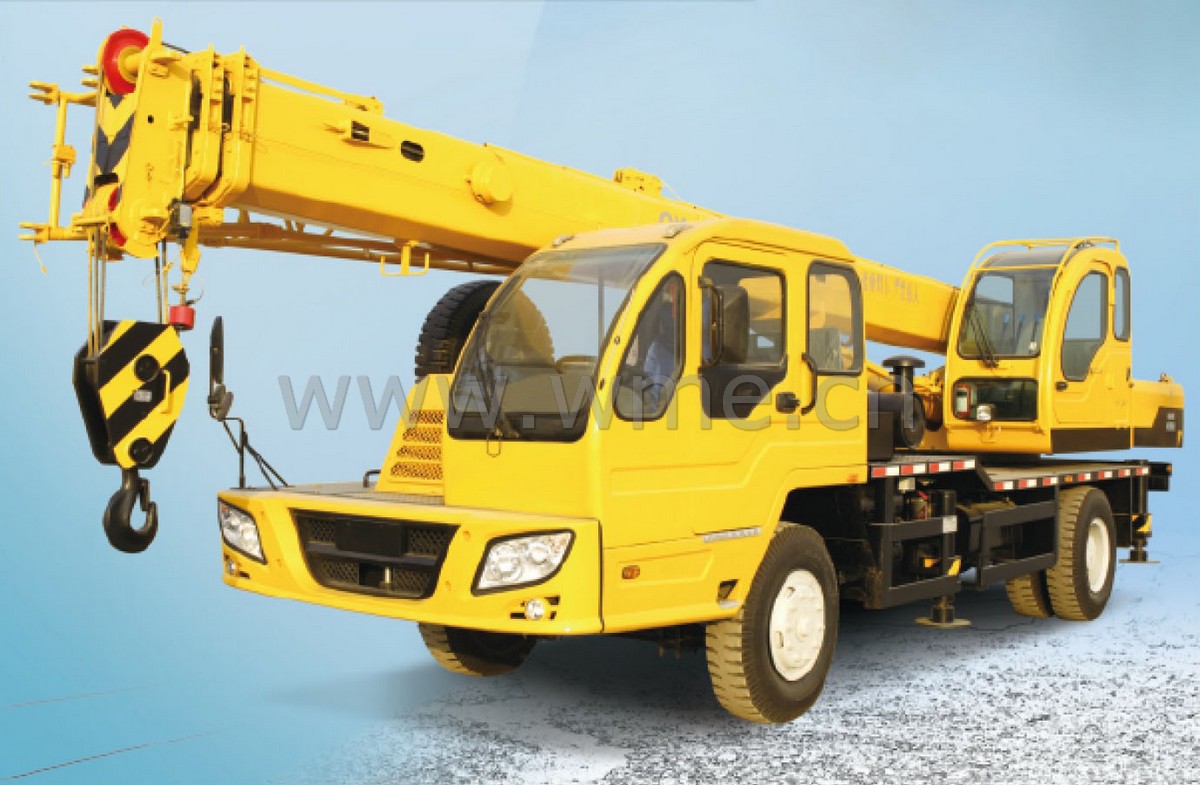

QY12B.5 12t 16t 10785*2500*3050mm3-section boom truck crane QY12B.5.jpg (191KB)
QY16B 155kw 16t 24t 12110*2500*3250mm3-section boom
QY16C 16t 22.9t 11990*2500*3350mm3-section boom
QY16D 16t 24t 11990*2500*3350mm 4-section boom
QY20B 20t 26t 12400*2500*3300mm 4-section boom
QY20B-I 20t 26t12000*2500*3300mm 4-section boom
QY20G 192kw 20t 26t 12400*2500*3320mm 4-section boom
QY25B 192kw 25t 29t 12990*2500*3430mm 4-section boom
QY25E 192kw 25t 26.4t 12360*2500*3500mm 4-section boom
QY25K 206kW(276hp) 25t 31t 12360*2500*3380mm Pilot Control, 4-section boom truck crane QY25K.jpg (283KB)

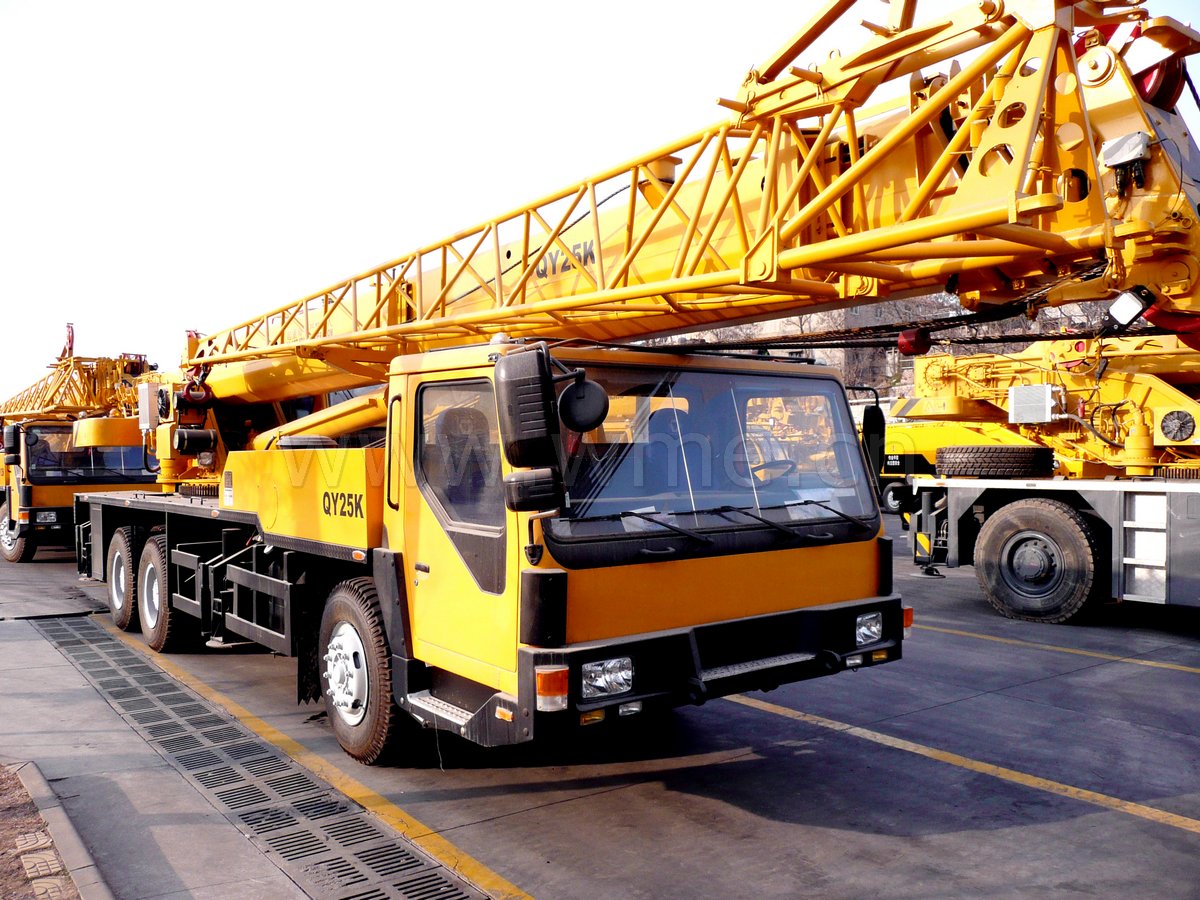

QY25K-I 206kW(276hp) 25t 31t 12360*2500*3380mm Pilot Control, 4-section boom truck crane QY25K-I.jpg (283KB)
QY25K5 206kW(276hp) 25t 31t 12000*2500*3380mmPilot Control, 5-section boom truck crane QY25K5.jpg (238KB)

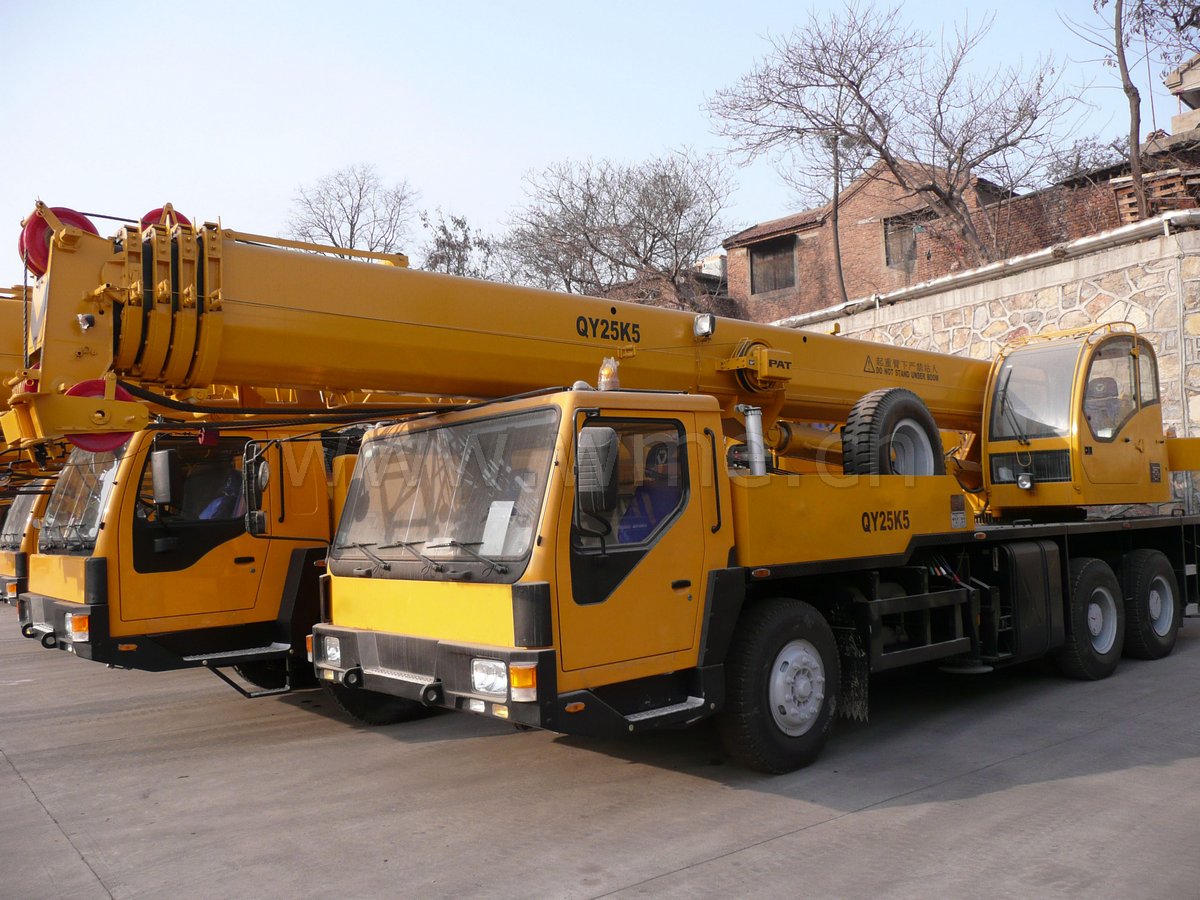

QY25K5-I 206kW(276hp) 25t 31t 12000*2500*3380mmPilot Control, 5-section boom truck crane QY25K5-I.jpg (238KB)
QY30K5 WEICHAI 206kW(276hp) 30t 32.4t 12070*2500*3390mmPilot Control, 5-section boom
QY30K5-I WEICHAI 206kW(276hp) 30t 32.4t 12070*2500*3390mmPilot Control, 5-section boom
QY35K5 SHANGCHAI 235kW(315hp) 35t 37t 12620*2500*3350mm Pilot Control, 5-section boom
QY40K WEICHAI 247kW(331hp)   40t   40.4t 13050*2800*3430mm Pilot Control, 5-section boom

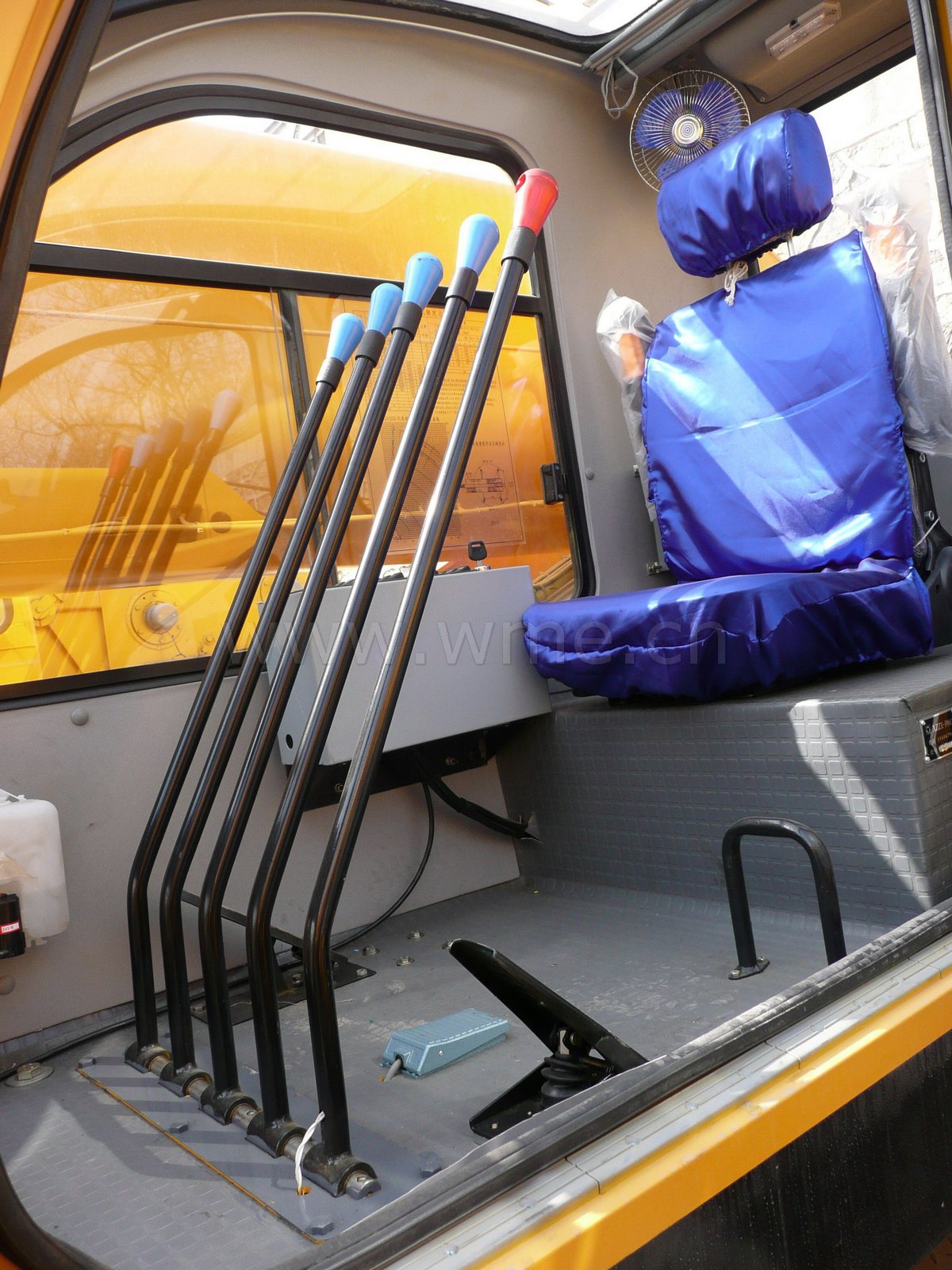

QY50B WEICHAI 266kW(356hp) 50t 55.8m 40t 13270*2750*3300mmMechanical Control
QY50K WEICHAI 266kW(356hp)   50t 55.8m 40.4t 13100*2800*3450mmPilot Control
QY50K-I WEICHAI 266kW(356hp)   50t 55.8m 40.4t 13100*2800*3450mmPilot Control
QY50K-II WEICHAI 266kW(356hp)   50t 55.8m 40.4t 13100*2800*3450mmPilot Control
QY60K   266kW(356hp)   60t  41t 13500*2800*3510mmPilot Control
QY70K WEICHAI 266kW(357hp)   70t   41t 13500*2800*3510mm Pilot Control
QY70K-I WEICHAI 266kW(357hp)   70t   41t 13500*2800*3510mm Pilot Control
QY80K   315kW(422hp)   80t   54.8t 14370*2800*3770mmPilot Control
QY90K   90t   Pilot Control

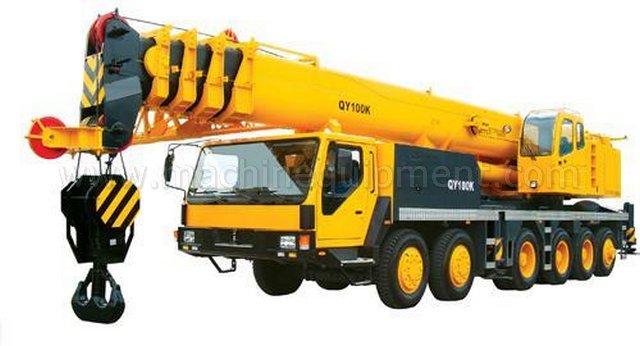

QY100K   324kW(434hp)   100t   58t 15230*3000*3860mmPilot Control truck crane QY100K.jpg (50KB)
QY100K-I   324kW(434hp)   100t   58t 15230*3000*3860mmPilot Control truck crane QY100K-I.jpg (50KB)
QY110K   110t   Pilot Control
QY130K 162kW(217hp)
/390kW(523hp)

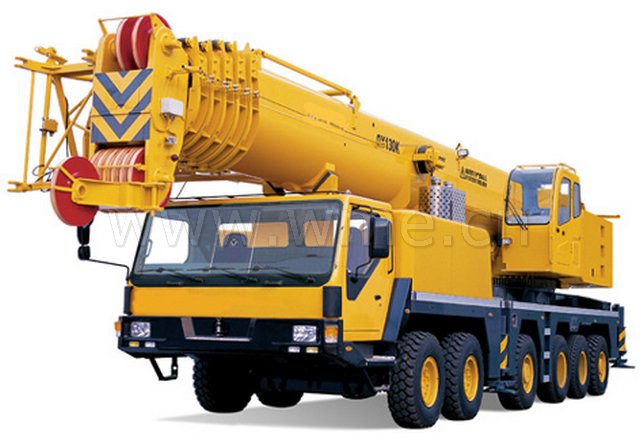

130t 62t 14950*3000*3950mm Pilot Control truck crane QY130K.jpg (67KB)

All specifications are approximate. Specifications are subject to change without notice.
