ZF transmission & ZF axle

made in

ZF China factory



*** Now our ZF China factory mainly produce some parts for wheel loader only.





ZF transmission

ZF Powershift Transmission WG200

ZF WG powershift transmission offers everything technically possible to make wheel loader application more efficient, effective and safe. Through modular design, WG transmission can be tailored to exact technical needs. Dependent on application and maximum speed, there is a choice for 3 or forward and reverse geers. Since wheel loaders work 30% of the time in reverse, closed gear stepping in forwards and reverse are particularly important for efficiency and service life.

WG200 transmission can be supplied with semi or fully automatic shift control system. The operator is relieved of routine manual gearshifts the transmission gears being engaged automatically increasing transmission efficiencey and service lift especially during reversing operation. Pressure cut-off system can switch full engine power to shovel for improved working characteristics particular for wheel loader application. 1 or 2 engine dependent PTOs capable of using full engine power, input flanges for various shafts, parking brakes, axle disconnection and speedometer drive connection are also available.

Engine power max. 200 KW
Trubine torque max. 1500 Nm
Forward gears 4
Reverse gears 3





ZF axle

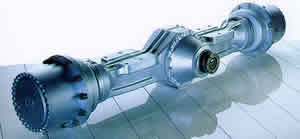

Series AP400 Planetary Rigid Axle

The AP400 axle range is characterized by design features which can justifiably be described as innovative. They offer high dynamic and static load capacity, increased mechanical efficiency, excellent ground clearance and increased safety levels all in one.

AP400 axles are designed for use in heavy construction machinery, and for dynamic axle loads from 10.7 to 32.0 tons offering various axle rations and track widths. The high dynamic axle loads are easily handled during break-out even in the most demanding quarry operations. ZF mechanical or self-locking differentials ensure the most adverse conditions. The wet multi-disc brakes in the wheel heads is protected from environmental influences, and almost wear and maintenance-free. The wheel head cover needs simply be removed if checks or maintenance is required. It is not necessary to suspend the vehicle to disassemble the wheels for inspection.

AP-400 series AP-409/DK AP-411/HK
Static axle load max. 21.7t 25.1t
Dynamic axle load max. 13.3t 15.3t
Output torque nominal 81,030 101,140



ZF-axle-parts-4466053045.pdf (5.2MB)ZF#4466 053 045

ZF-axle-parts-4466003038-039.pdf (4.1MB)ZF#4466 003 038 / 039
