| Model |

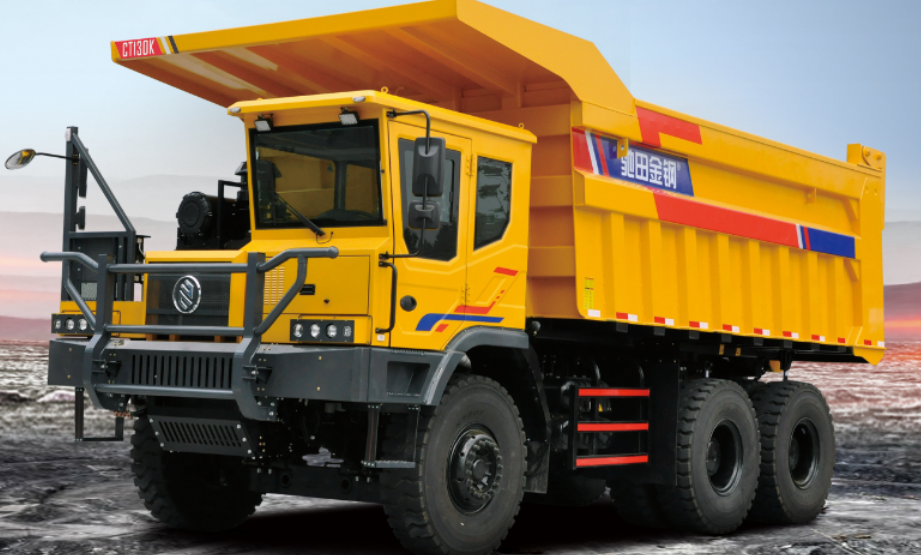

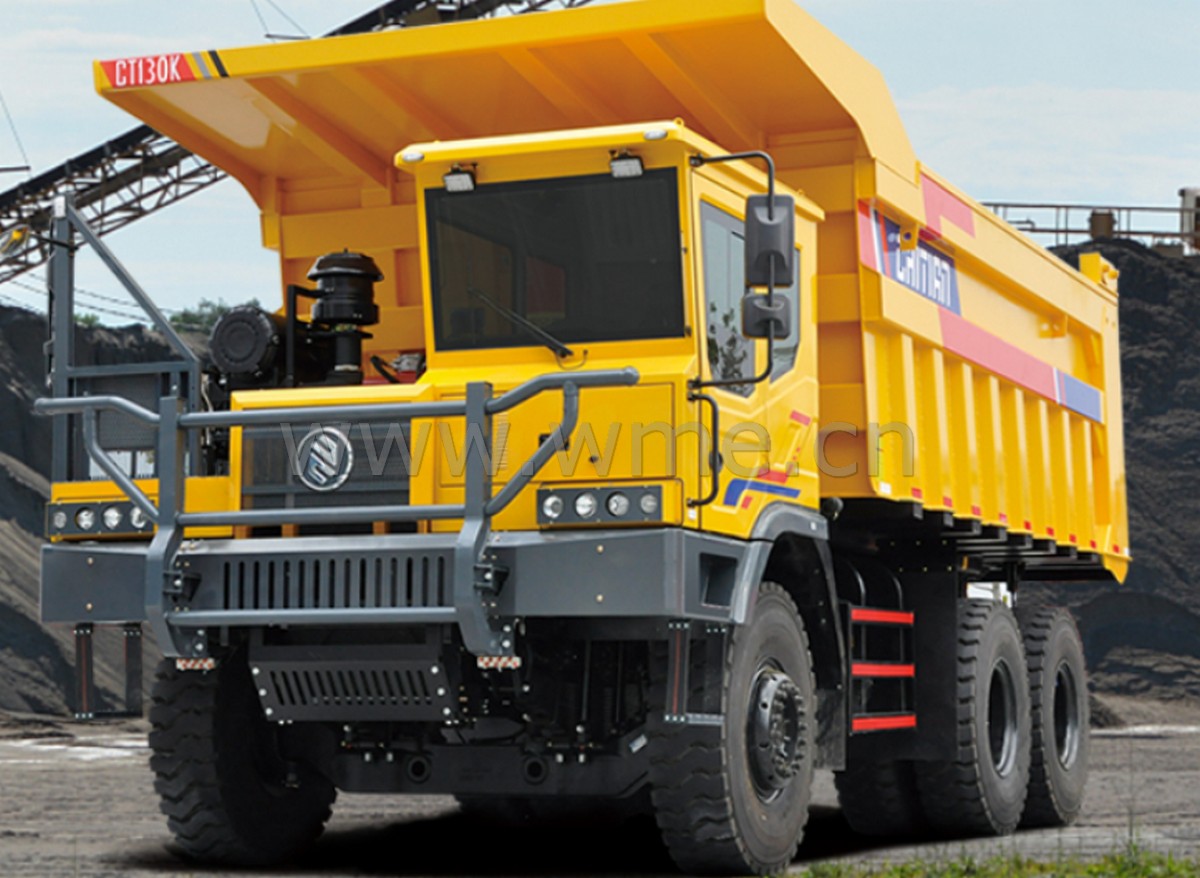

CT130K |
| Complete vehicle gross mass (t) |
130 |
| Laden mass (t) |
90 |
| Kerb mass (t) |
45 |
| Overall dimensions (length×Width×Height) (mm) |
10100×4000×4780 |
| Mode of drive |
6×4 |
| Wheelbase (mm) |
4200 + 1900 |
| Wheel track (mm) |
Front 3035, Back 2850 |
| Maximum service speed (km/h) |
40 |
| Maximum gradeability (%) |
34 |
| Minimum turning diameter (m) |
25 |
| Minimum ground clearance (mm) |
400 |
| Parking slope |
30 (uphill)/20 (downhill) |
| Cab form |
Single-side Left-mounted Forward-inclined Narrow-body Cab |
| Hydraulic damping seat |
Up, Down, Front And Back, Adjustable Backrest Angle Adjustable |
| Active safety configuration |
Safety Assistant Management System |
| Carrige container capacity (m³) |
49 |
| Carrige container dimensions (mm) |
6600×3700×2000 |
| Carrige container material and thickness (mm) |
NM450 12/16 |
| Hydraulic hacking system |
214 |
| Floor heating system |
Standard |
| Engine model |
QSM115 - 77C/YCK16775 - T300/YCV160 |
| Steering system |
Fully Hydraulically Steering |
| Transmission |
8DS280 |
| Air filter |
Electric Multi - stage Sand And Air Filter |
| Radiator |
Fin Radiator |
| Fuel tank (L) |
Aluminum alloy large capacity fuel tank |
| Frame |
High - strength truck Steel Flexible Frame (12 + 12 + 12) |
| Front overhang |
200Hydro - pneumatic Spring - type Suspension |
| Front leaf spring thickness/width/number of leaves |
- |
| Rear overhang |
Chitian Patent - leaf Spring Type 180T Balanced Suspension |
| Leaf spring thickness/width/number of leaves |
33mm/150mm/14 |
| Service braking |
Double - circuit Drum - type Air Braking |
| Parking brake |
Spring Energy Storage Brake Concurrently As Emergency Brake |
| Auxiliary brake |
In - cylinder Brake |
| Differential lock |
Interaxle Differential Lock |
| Front and axle and loading tonnage |
Hande, pengxiang 30/50/50t Axles |
| Tire model |
480/95R29 |
| Rim model |
11.30/25 - 29 |
| Optional equipment |
Standard: Stone Hammer; Optional: AT - Transmission, Hydrodynamic Retarder, Back - flushing Air Filter, Oil Filter |
