| Model |

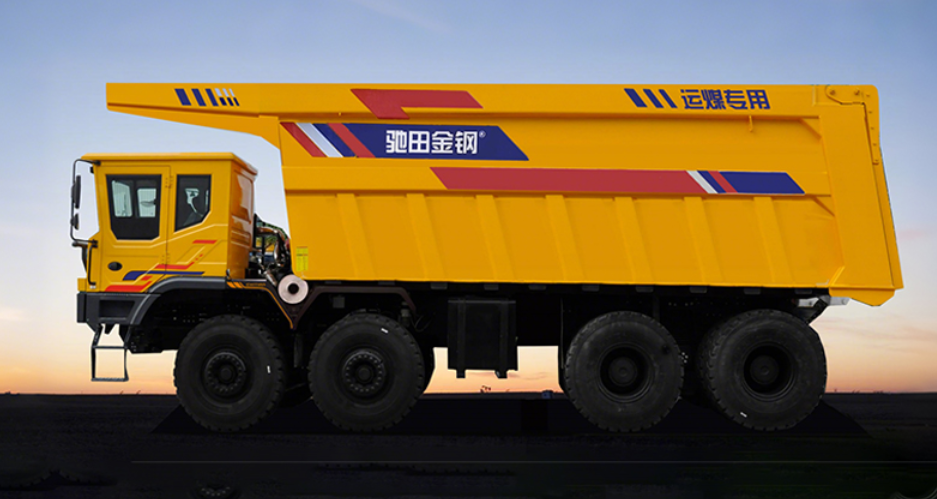

CT150KM Diesel Coal Transport Truck |
CTE150KM Pure Electric Coal Transport Truck |
CTH150KM Hybrid Coal Transport Truck |
| Gross Vehicle Weight (t) |
150 |
150 |
150 |
| Overall Dimensions (L×W×H) (mm) |
12400×3980×4800 |
12400×3980×4800 |
12400×3980×4800 |
| Cargo Box Volume (Flat Load) (m³) |
85 |
85 |
85 |
| Cargo Box Lifting Method |
Front Top |
Front Top |
Front Top |
| Wheelbase (mm) |
1820 + 4100 + 1800 |
1820 + 4100 + 1800 |
1820 + 4100 + 1800 |
| Maximum Speed (km/h) |
40 |
40 |
40 |
| Maximum Gradeability (%) |
32 |
32 |
32 |
| Minimum Ground Clearance (mm) |
370 |
370 |
370 |
| Engine/Motor |
Mining Version 770 HP |
EM660 Motor / TZ480XS052 |
Mining Version 770 HP |
| Motor Power |
- |
660/920kW 700/1000kW |
150/250kW |
| Transmission |
8DS280 |
3E560 Mining-Specific Transmission |
8-Speed Hybrid AMT Transmission |
| Battery Capacity |
- |
845.75kWh
845.75kWh |
83.92kWh (Optional 138.5kWh) |
| Axle Load (t) |
25/25/50/50T |
25/25/50/50T |
25/25/50/50T |
| Front Suspension |
Chitian Patented - Dual Front Axle Through-Type Oil-Gas Balanced Suspension |
Chitian Patented - Dual Front Axle Through-Type Oil-Gas Balanced Suspension |
Chitian Patented - Dual Front Axle Through-Type Oil-Gas Balanced Suspension |
| Rear Suspension |
Chitian Patented - Leaf Spring Type 180T Balanced Suspension |
Chitian Patented - Leaf Spring Type 180T Balanced Suspension |
Chitian Patented - Leaf Spring Type 180T Balanced Suspension |
| Chassis Frame |
High-Strength Steel Flexible Frame |
High-Strength Steel Flexible Frame |
High-Strength Steel Flexible Frame |
| Tires |
16.00R25 Reinforced Tires |
16.00R25 Reinforced Tires |
16.00R25 Reinforced Tires |
| Safety Assistance System |
Emergency Steering + Automatic Reverse Parking System |
Emergency Steering + Automatic Reverse Parking System |
Emergency Steering + Automatic Reverse Parking System |
