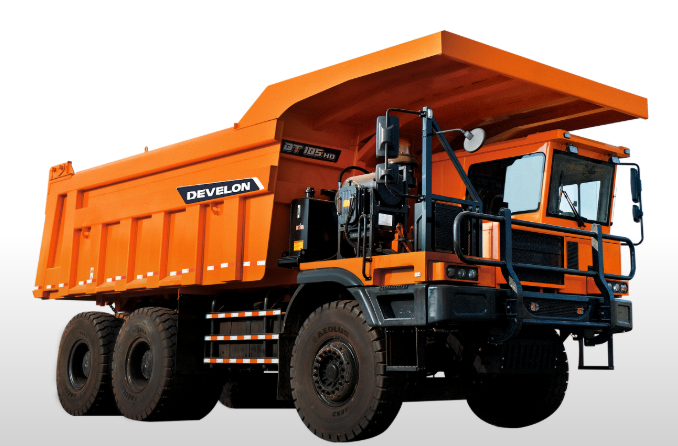

DEVELON DT105HD

DEVELON DT105HD - DEVELON Wide-body dump truck

Model	DT105HD
Rated load capacity	70ton
Total weight	35ton
Length * Width * Height	9.3703.6704.065mm
Maximum operating speed	42km/h
Engine assembly	Weichai 530 hp engine (four-stage emission)
Fuel supply system	600L ferrous fuel tank
Gearbox	Fast 8DS240A gearbox
Axle assembly	Hande axle (25-ton front axle, 40*2-ton drive axle)
Lifting system	Hyva Lift System
Tire model	16.00-25 tires
Cargo box (container volume/form)	38m³
Cargo box (plate thickness and material)	-
Attachments	Air conditioning, engine underguard, intercoolant grille

DT90HD

DT105HD

DT110HD

All specifications are approximate and subject to change without notice.
