| Model |

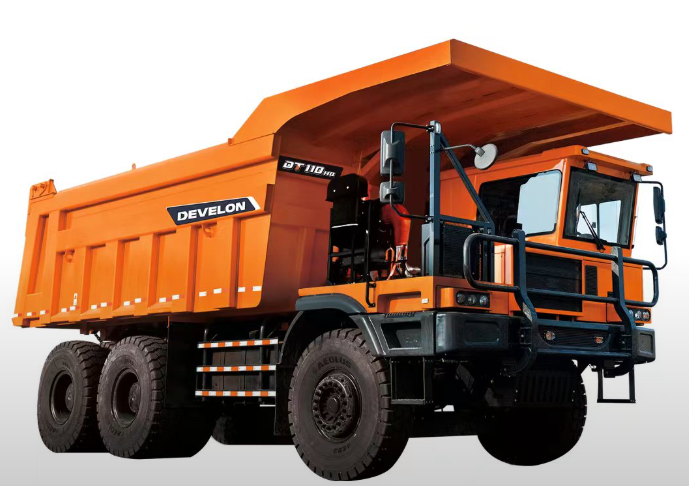

DT110HD |
| Rated load capacity |
75ton |
| Total weight |
35ton |
| Length * Width * Height |
9,360*3,960*4,200mm |
| Maximum operating speed |
44km/h |
| Engine assembly |
Weichai 770 hp (three-stage discharge) |
| Fuel supply system |
600L ferrous fuel tank |
| Gearbox |
Fast 8DS240A gearbox |
| Axle assembly |
Hande axle (25-ton front axle, 40*2-ton drive axle) |
| Lifting system |
Hyva Lift System |
| Tire model |
16.00-25 tires |
| Cargo box (container volume/form) |
- |
| Cargo box (plate thickness and material) |
- |
| Attachments |
Air conditioning, engine underguard, intercoolant grille |
|
|
