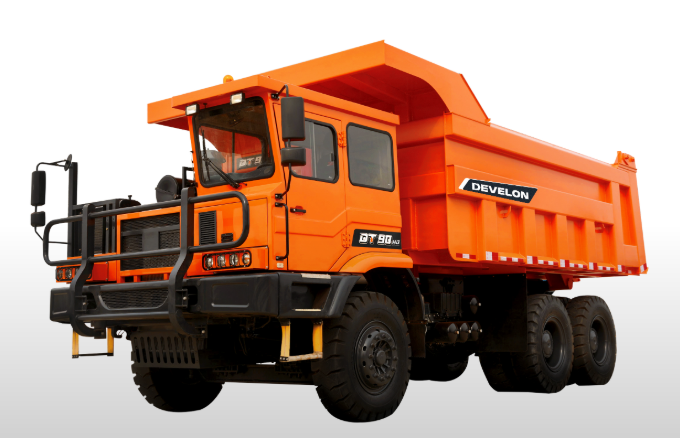

DEVELON DT90HD

DEVELON DT90HD - DEVELON Wide-body dump truck

Model	DT90HD
Rated load capacity	60ton
Total weight	30ton
Length * Width * Height	9.1503.6403.980mm
Maximum operating speed	42km/h
Engine assembly	Weichai 460 hp engine (four-stage emission)
Fuel supply system	500L iron fuel tank
Gearbox	Fast 7DS220 gearbox
Axle assembly	Hande axle (20-ton front axle, 35*2-ton drive axle)
Lifting system	Hyva Lift System
Tire model	14.00-25 tires
Cargo box (container volume/form)	30m³
Cargo box (plate thickness and material)	-
Attachments	Air conditioning, engine underguard, intercoolant grille

DT90HD

DT105HD

DT110HD

All specifications are approximate and subject to change without notice.
