DOOSAN DA30

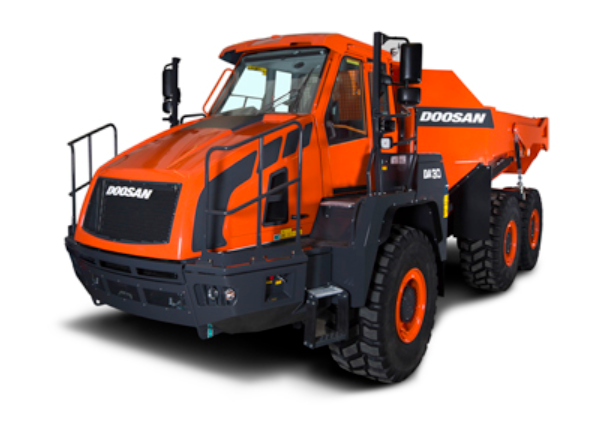

DOOSAN DA30 - DOOSAN Articulated dump truck



Model DA30
Body Capacity 18m³
Rated Power 270 kw
Engine Rated Power 276 / 2100 kW / rpm
Engine Max. Power 276(375) / 2100 kW(HP) / rpm
Engine Max. Toque 1873 / 1300 Nm / rpm
Payload 28 Met ton
Gross weight 49.7 ton
Net Weight 21.7 ton
Travel Speed Forward
(1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)		 5 / 8 / 11 / 15 / 22 / 30 / 42 / 55 km/h
Travel Speed Reverse
(1 / 2 / 3 / 4)		 5 / 8 / 11 / 16 km/h
Total Length 9558mm
Total Width 2990mm
Total Height 3560mm
Turning radius 7680mm



DOOSAN Dump Truck

DA30
DA40
DT90B

All specifications are approximate and subject to change without notice.
