DOOSAN DA40

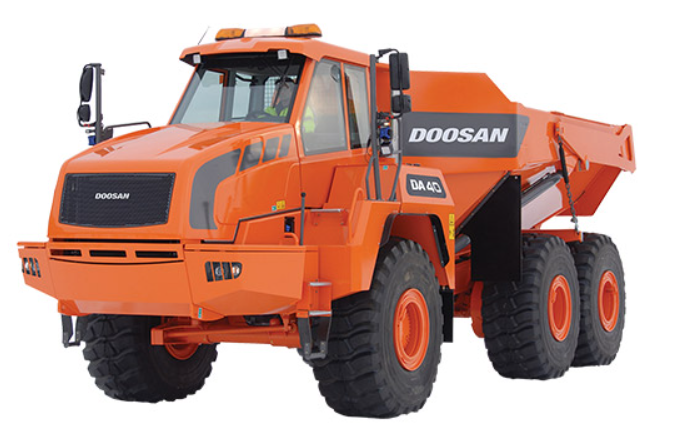

DOOSAN DA40 - DOOSAN Articulated dump truck



Model DA40
Body Capacity 24.4m³
Rated Power 360 kw
Engine Rated Power 360 / 2100 kW / rpm
Engine Max. Power 368(500) / 2100 kW(HP) / rpm
Engine Max. Toque 2373 / 1300 Nm / rpm
Payload 40 Met ton
Gross weight 70.0 ton
Net Weight 30.0 ton
Travel Speed Forward
(1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)		 5 / 8 / 11 / 16 / 23 / 32 / 45 / 55 km/h
Travel Speed Reverse
(1 / 2 / 3 / 4)		 5 / 8 / 11 / 16 km/h
Total Length 10590mm
Total Width 3475mm
Total Height 3850mm
Turning radius 8420mm



DOOSAN Dump Truck

DA30
DA40
DT90B

All specifications are approximate and subject to change without notice.
