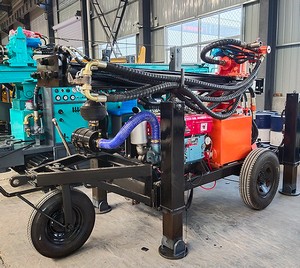

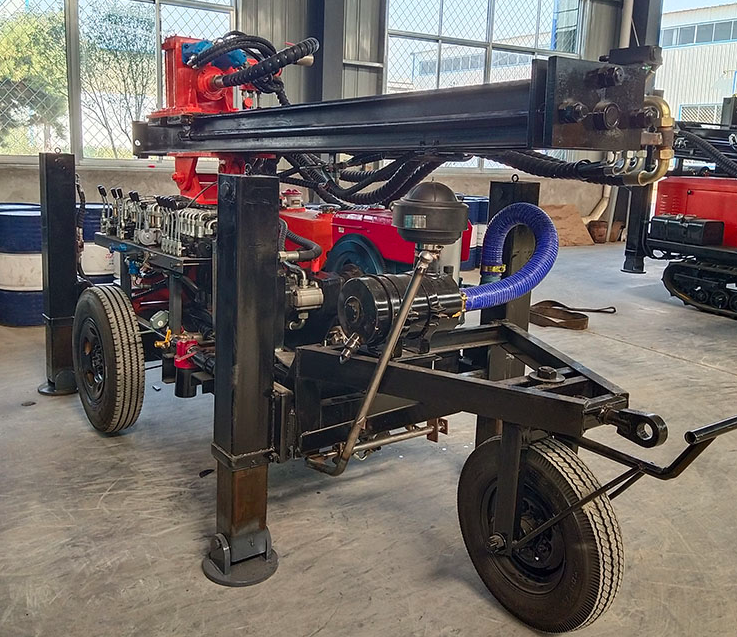

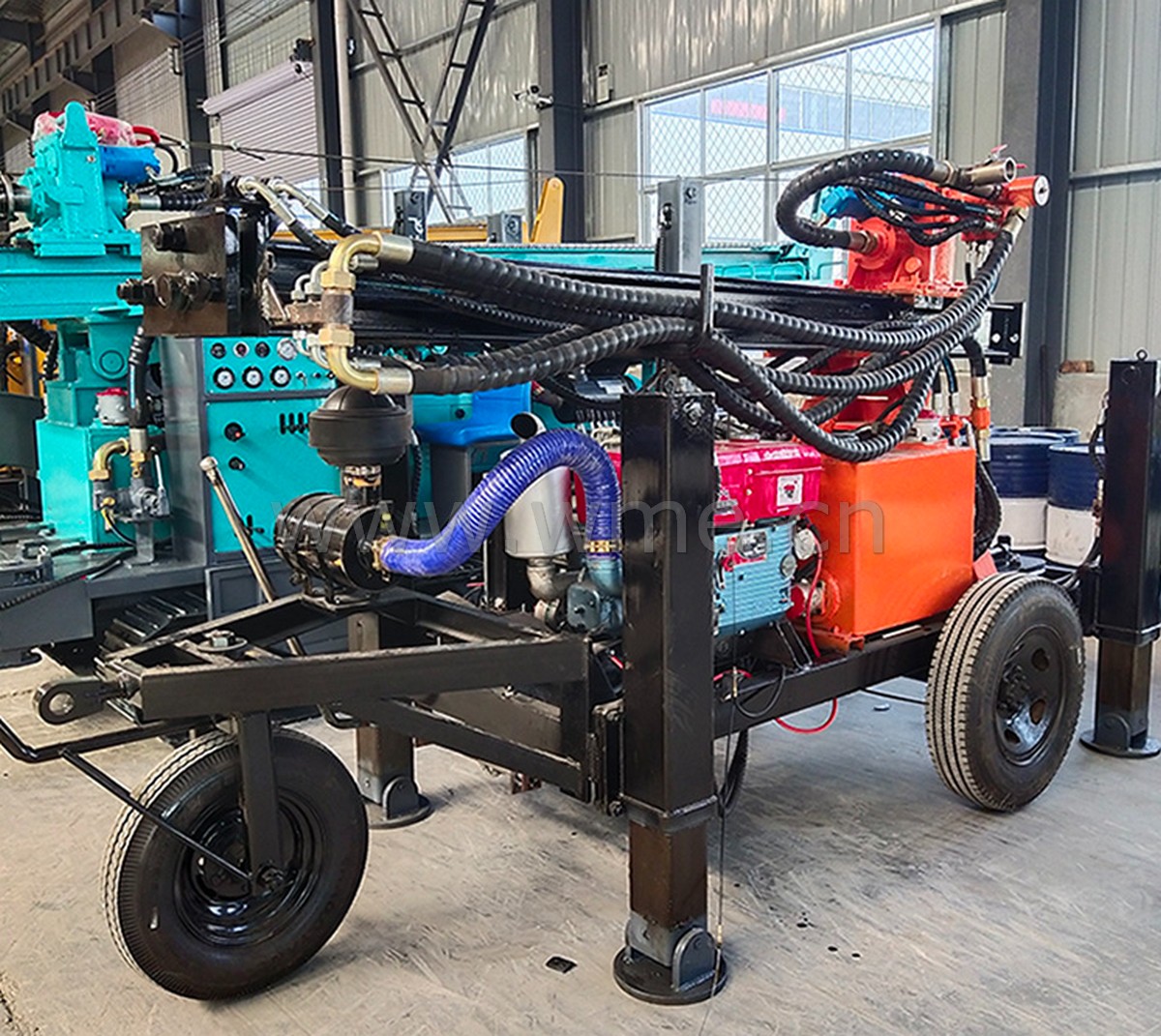

| FeiDa FY130 |
| The weight (T) |
3 |
| The hole diameter (mm) |
100 - 219 |
| Drill depth (m) |
130 |
| One - time advance length (m) |
2.3 |
| Walking speed (km/h) |
3 |
| Gradeability (Max.) |
30 |
| Equipped capacitor (kw) |
23 |
| Working air pressure (MPA) |
1.45 - 2.5 |
| Air consumption (m³/min) |
15 - 29 |
| Swing speed (rpm) |
40 - 46 |
| High leg stroke (m) |
0.6 |
| Drill pipe diameter (mm) |
Φ76 Φ89 |
| Drill pipe length (m) |
1.5m 2.0m |
| Rig lifting force (T) |
6 |
| Rapid rise speed (m/min) |
15 |
| Fast feeding speed (m/min) |
23 |
| Width of loading (m) |
1.56 |
| Hoisting force of winch (T) |
-- |
| Swing torque (N.m) |
2200 - 3000 |
| Dimensions (mm) |
3850*1560*2050 |
| The penetration efficiency (m/h) |
10 - 35 |
| The engine brand |
changchai |
|
|
