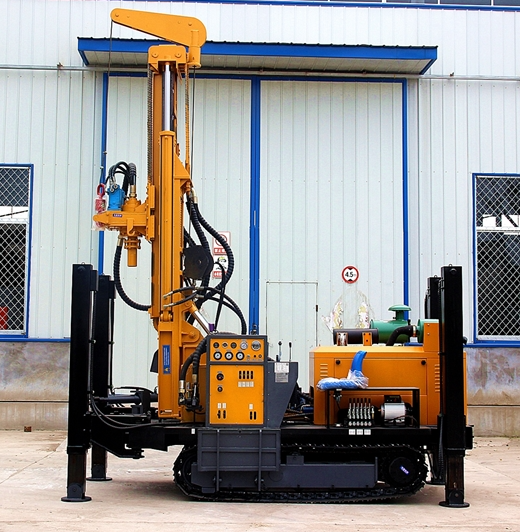

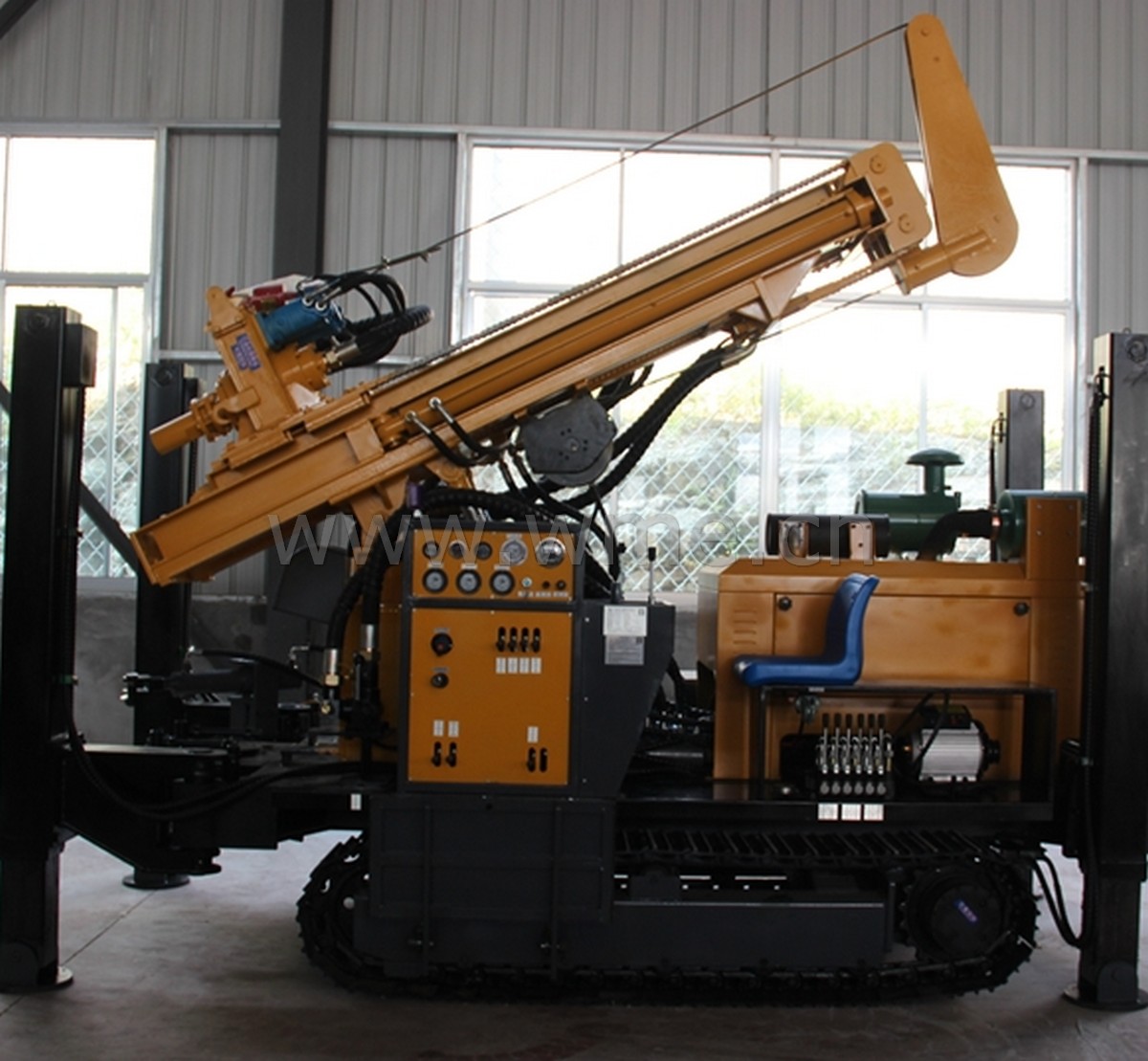

| FeiDa FY260 |
| The weight (T) |
5.7 |
| The hole diameter (mm) |
140 - 305 |
| Drill depth (m) |
260 |
| One - time advance length (m) |
3.3 |
| Walking speed (km/h) |
2.5 |
| Gradeability (Max.) |
30 |
| Equipped capacitor (kw) |
76 |
| Working air pressure (MPA) |
1.7 - 2.5 |
| Air consumption (m³/min) |
17 - 31 |
| Swing speed (rpm) |
45 - 70 |
| High leg stroke (m) |
1.4 |
| Drill pipe diameter (mm) |
Φ76 Φ89 |
| Drill pipe length (m) |
1.5m 2.0m 3.0m |
| Rig lifting force (T) |
15 |
| Rapid rise speed (m/min) |
24 |
| Fast feeding speed (m/min) |
40 |
| Width of loading (m) |
2.73 |
| Hoisting force of winch (T) |
1.5 |
| Swing torque (N.m) |
4000 - 5300 |
| Dimensions (mm) |
3900*1750*2250 |
| The penetration efficiency (m/h) |
10 - 35 |
| The engine brand |
quanchai |
|
|
