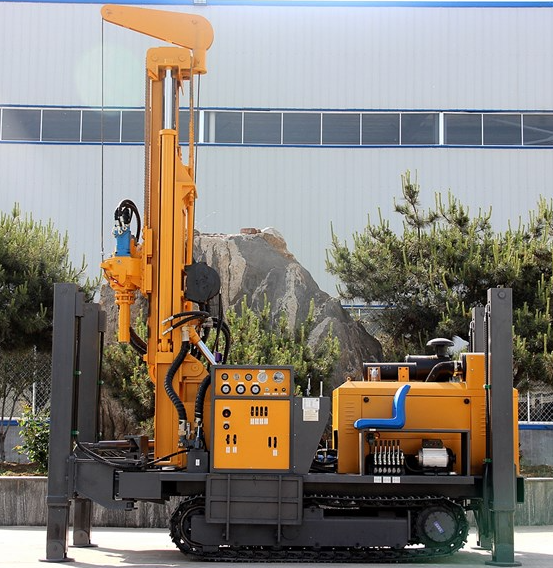

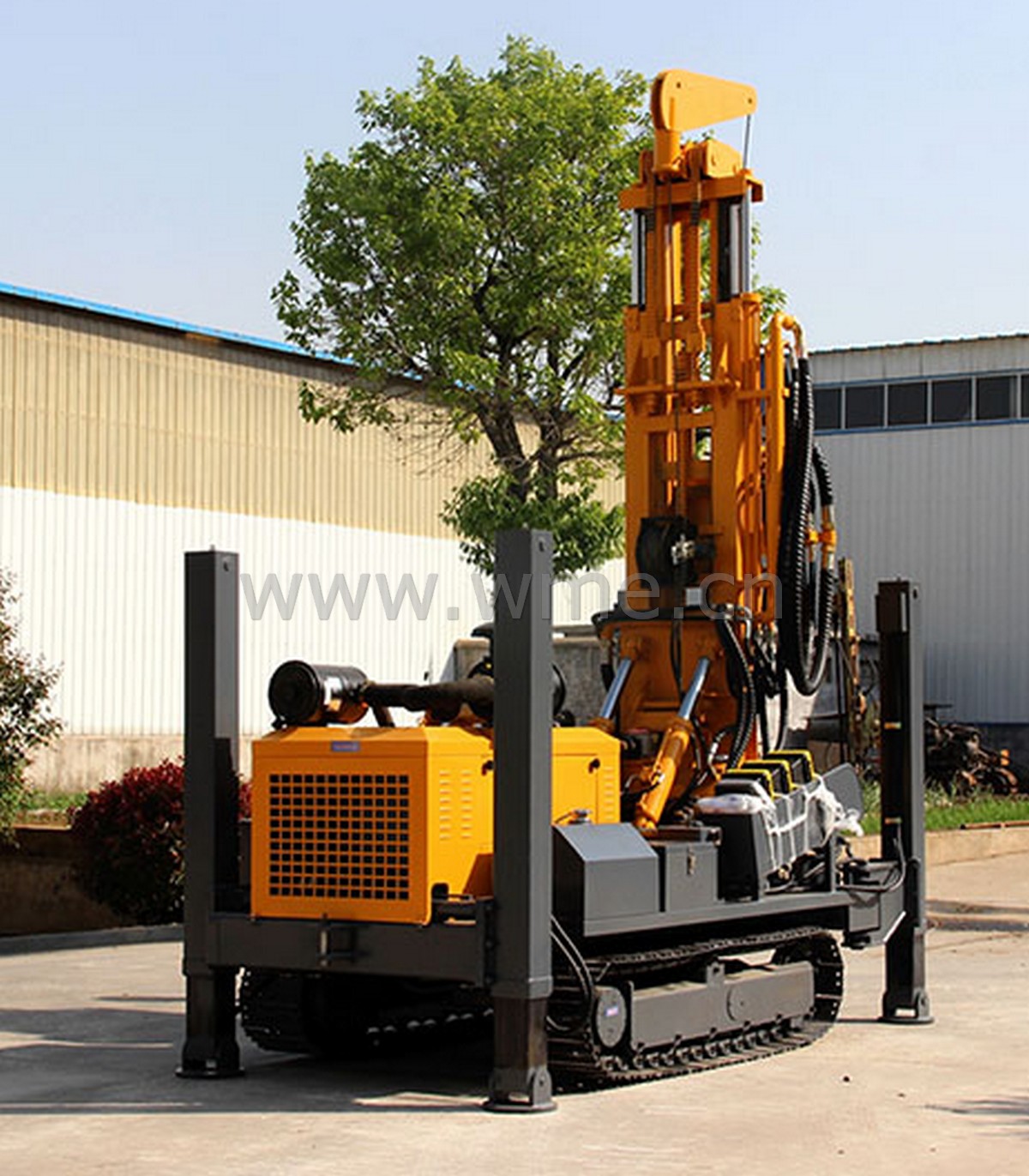

| FeiDa FY300A |
| The weight (T) |
6.8 |
| The hole diameter (mm) |
140 - 325 |
| Drill depth (m) |
300 |
| One - time advance length (m) |
3.3 |
| Walking speed (km/h) |
2.5 |
| Gradeability (Max.) |
30 |
| Equipped capacitor (kw) |
85 |
| Working air pressure (MPA) |
1.7 - 3.0 |
| Air consumption (m³/min) |
17 - 36 |
| Swing speed (rpm) |
45 - 70 |
| High leg stroke (m) |
1.4 |
| Drill pipe diameter (mm) |
Φ76 Φ89 |
| Drill pipe length (m) |
1.5/2.0/3.0 |
| Rig lifting force (T) |
18 |
| Rapid rise speed (m/min) |
22 |
| Fast feeding speed (m/min) |
40 |
| Width of loading (m) |
2.6 |
| Hoisting force of winch (T) |
2 |
| Swing torque (N.m) |
5700 - 7500 |
| Dimensions (mm) |
4100*2000*2260 |
| The penetration efficiency (m/h) |
15 - 35 |
| The engine brand |
yuchai engine |
|
|
