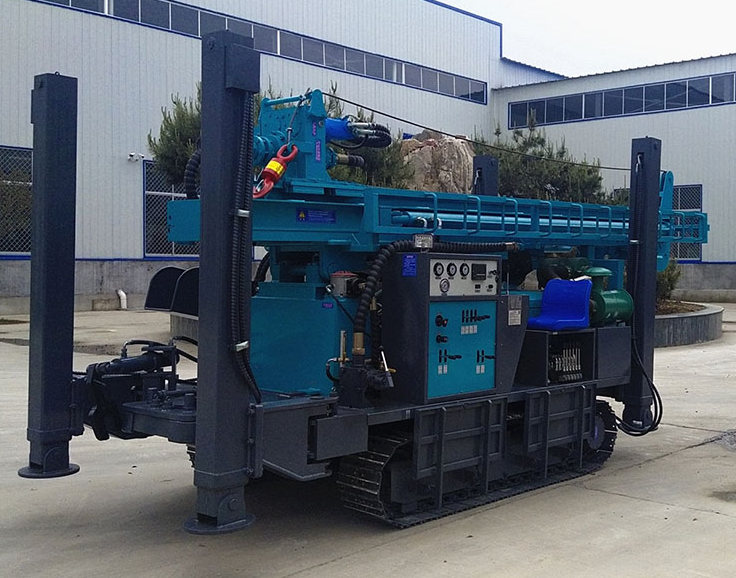

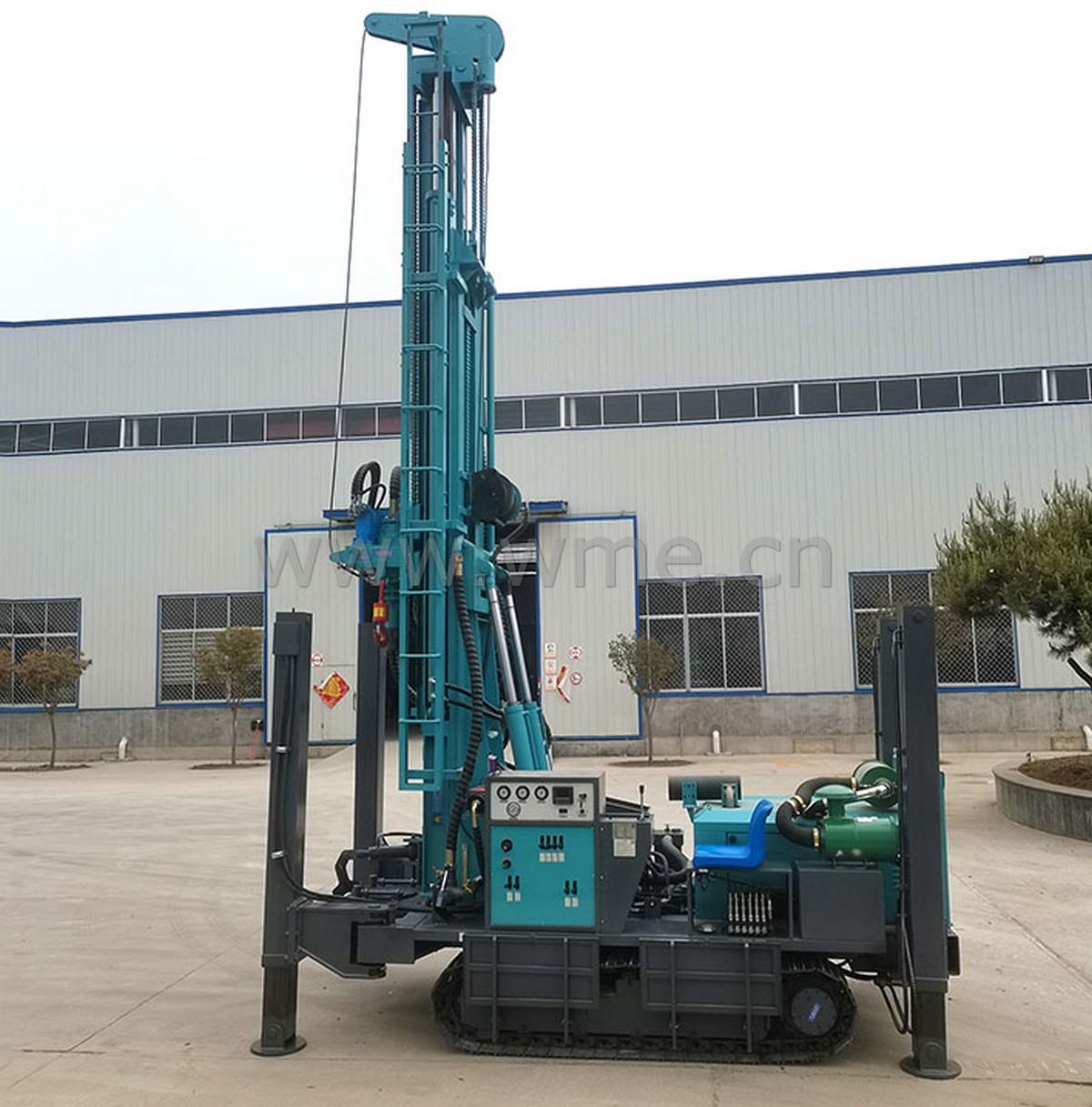

FeiDa FY400

FeiDa FY400 - China FeiDa Drilling Rig

FeiDa FY400
The weight (T)	9.2
The hole diameter (mm)	140 - 325
Drill depth (m)	400
One - time advance length (m)	6.6
Walking speed (km/h)	2.5
Gradeability (Max.)	30
Equipped capacitor (kw)	92
Working air pressure (MPA)	1.7 - 3.4
Air consumption (m³/min)	17 - 36
Swing speed (rpm)	66 - 135
High leg stroke (m)	1.4
Drill pipe diameter (mm)	Φ89 Φ102
Drill pipe length (m)	1.5/2.0/3.0/6.0
Rig lifting force (T)	24
Rapid rise speed (m/min)	18
Fast feeding speed (m/min)	33
Width of loading (m)	2.7
Hoisting force of winch (T)	2
Swing torque (N.m)	6500 - 9000
Dimensions (mm)	600020002550
The penetration efficiency (m/h)	15 - 35
The engine brand	yuchai
