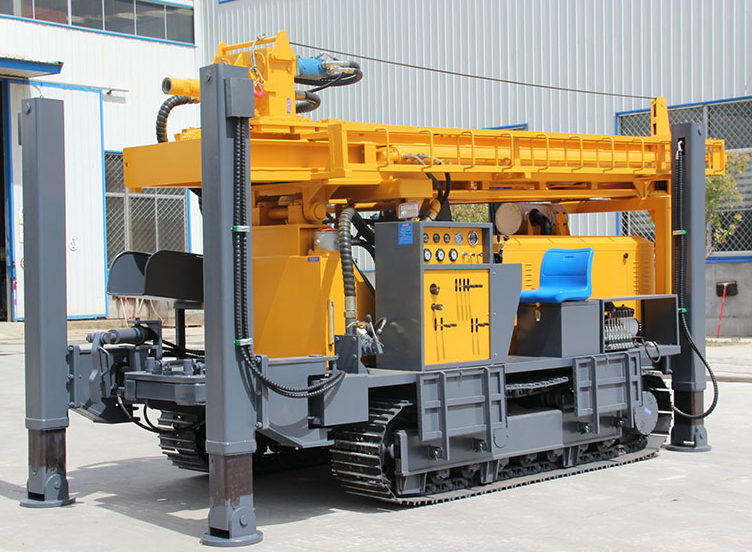

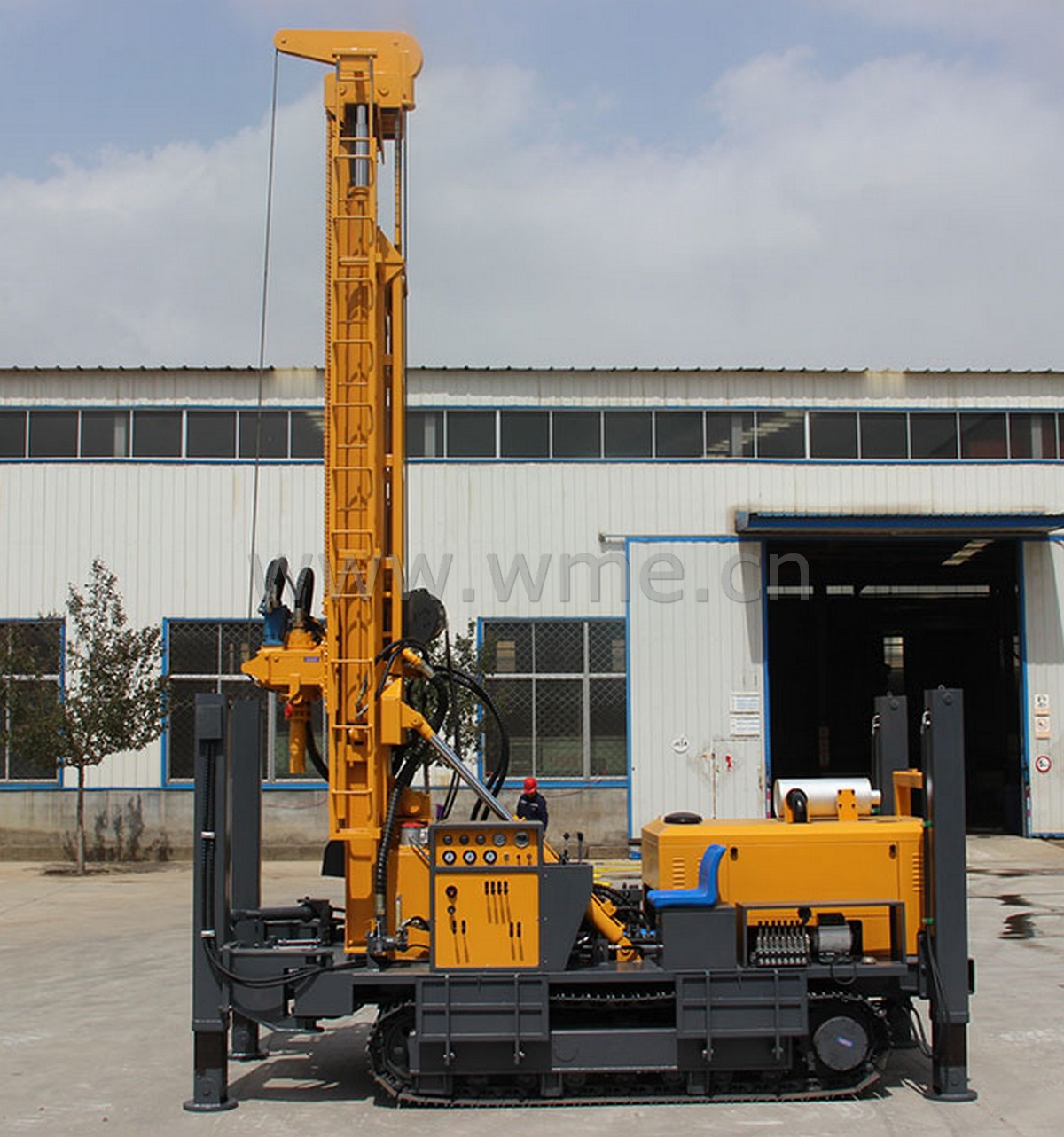

FeiDa FY600

FeiDa FY600 - China FeiDa Drilling Rig

FeiDa FY600
The weight (T)	11.5
The hole diameter (mm)	140 - 350
Drill depth (m)	600
One - time advance length (m)	6.6
Walking speed (km/h)	2.5
Gradeability (Max.)	30
Equipped capacitor (kw)	113
Working air pressure (MPA)	1.7 - 3.5
Air consumption (m³/min)	17 - 42
Swing speed (rpm)	45 - 130
High leg stroke (m)	1.7
Drill pipe diameter (mm)	Φ102 Φ108 Φ114
Drill pipe length (m)	1.5/2.0/3.0/6.0
Rig lifting force (T)	28
Rapid rise speed (m/min)	20
Fast feeding speed (m/min)	40
Width of loading (m)	2.85
Hoisting force of winch (T)	2
Swing torque (N.m)	8500 - 11000
Dimensions (mm)	630022002650
The penetration efficiency (m/h)	15 - 35
The engine brand	Cummins

FeiDa FYX180

FeiDa FYX200

FeiDa FY260

FeiDa FY300A

FeiDa FY300B

FeiDa FY350

FeiDa FY400

FeiDa FY450

FeiDa FY500

FeiDa FY600

FeiDa FY700

FeiDa FY800

FeiDa FY1000

FeiDa FY130

FeiDa FYL200

FeiDa KQZ200D

FeiDa FY600

All specifications are approximate and subject to change without notice.
