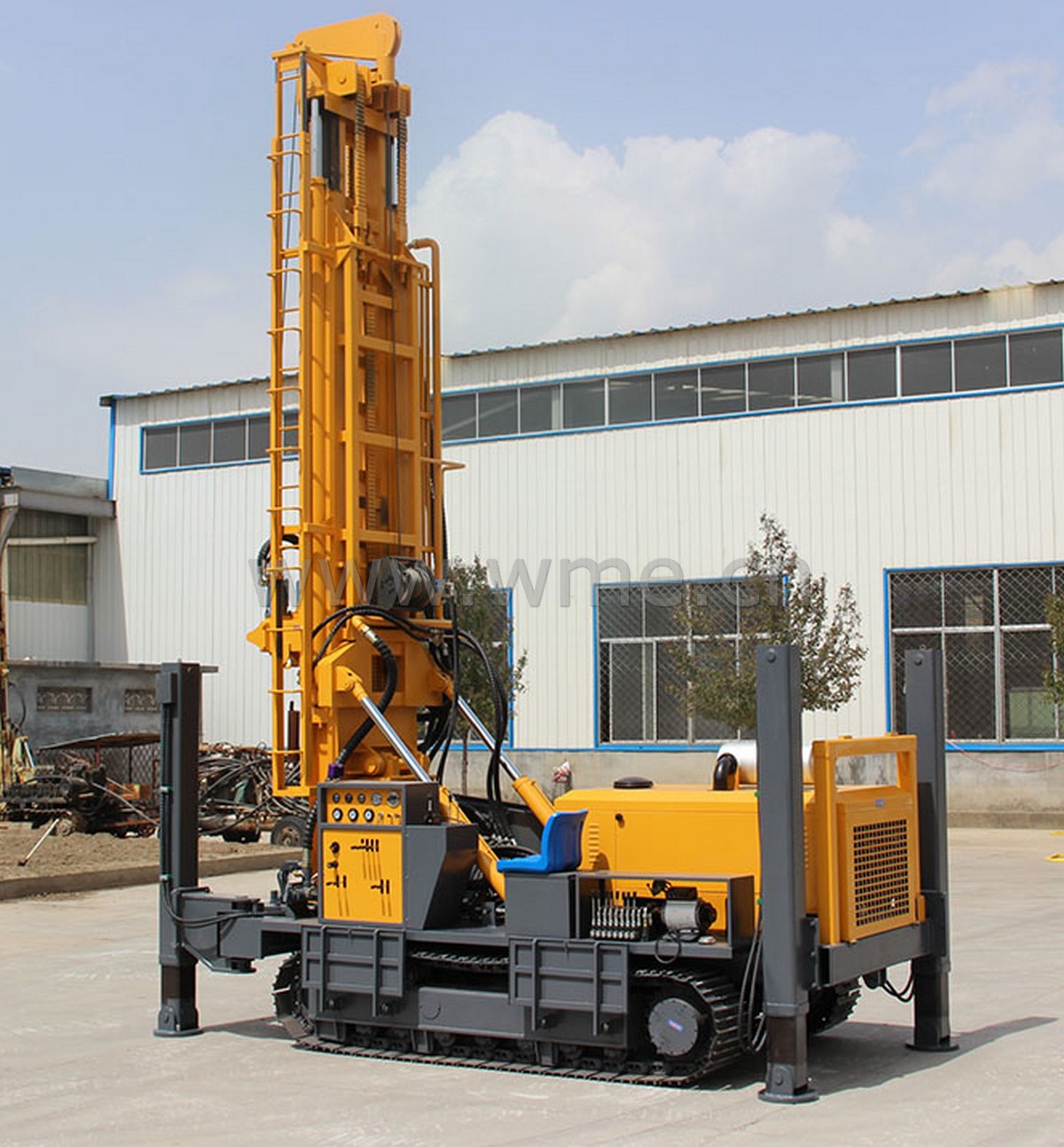

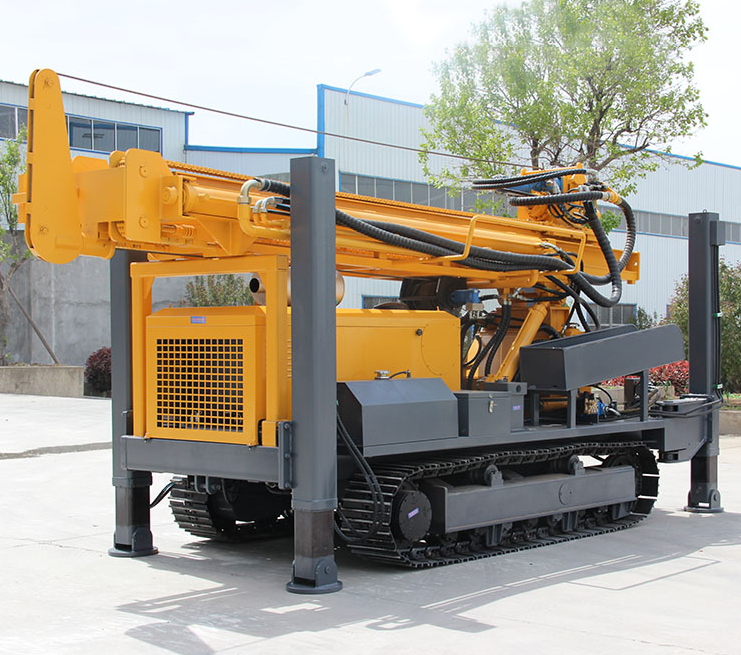

| FeiDa FY700 |
| The weight (T) |
12 |
| The hole diameter (mm) |
140 - 350 |
| Drill depth (m) |
700 |
| One - time advance length (m) |
6.6 |
| Walking speed (km/h) |
2.5 |
| Gradeability (Max.) |
30 |
| Equipped capacitor (kw) |
132 |
| Working air pressure (MPA) |
1.7 - 3.5 |
| Air consumption (m³/min) |
17 - 42 |
| Swing speed (rpm) |
45 - 140 |
| High leg stroke (m) |
1.7 |
| Drill pipe diameter (mm) |
Φ102 Φ108 Φ114 |
| Drill pipe length (m) |
1.5/2.0/3.0/6.0 |
| Rig lifting force (T) |
28 |
| Rapid rise speed (m/min) |
20 |
| Fast feeding speed (m/min) |
40 |
| Width of loading (m) |
2.95 |
| Hoisting force of winch (T) |
2 |
| Swing torque (N.m) |
8500 - 11000 |
| Dimensions (mm) |
6200*2200*2950 |
| The penetration efficiency (m/h) |
15 - 35 |
| The engine brand |
Cummins |
|
|
