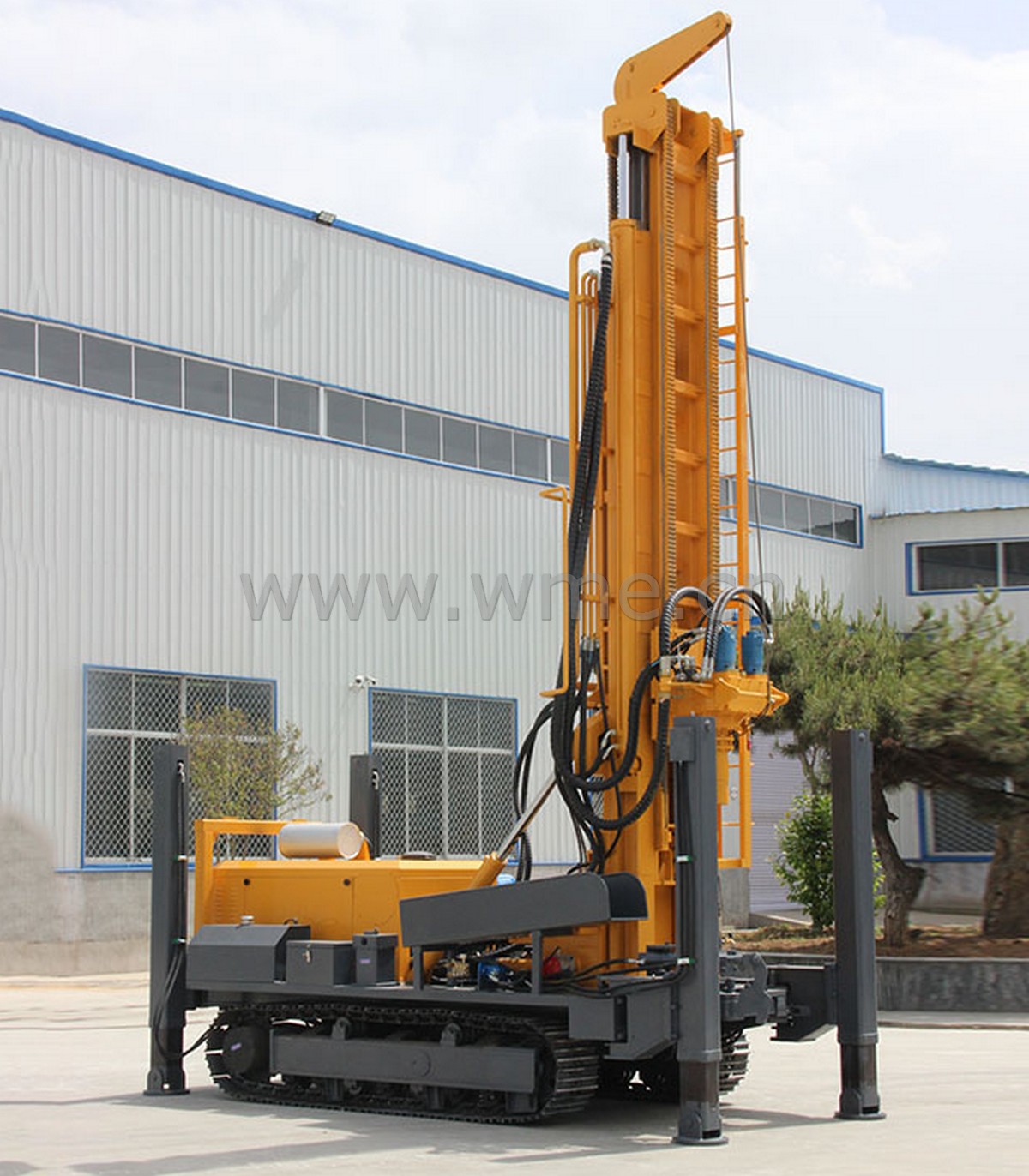

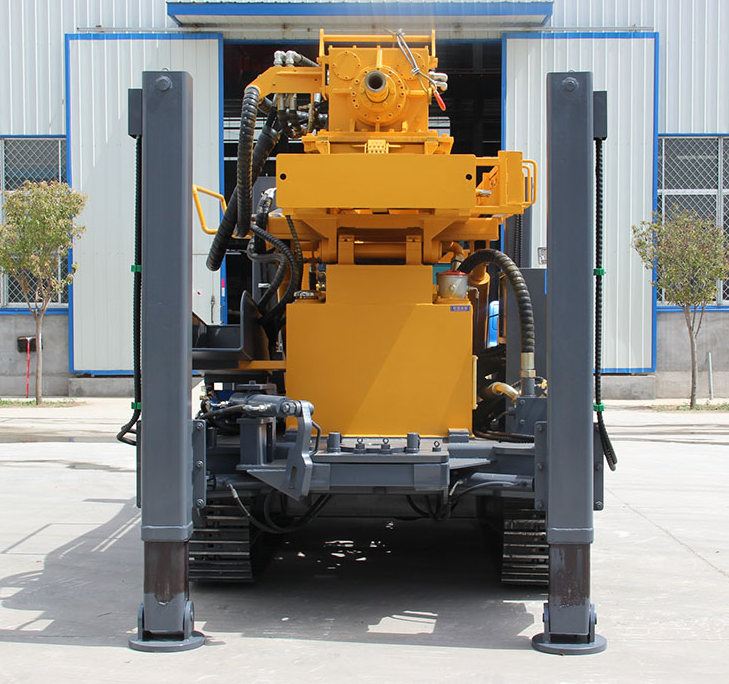

FeiDa FY800

FeiDa FY800 - China FeiDa Drilling Rig

FeiDa FY800
The weight (T)	13
The hole diameter (mm)	140 - 400
Drill depth (m)	800
One - time advance length (m)	6.6
Walking speed (km/h)	2.5
Gradeability (Max.)	30
Equipped capacitor (kw)	153
Working air pressure (MPA)	1.7 - 3.5
Air consumption (m³/min)	17 - 42
Swing speed (rpm)	45 - 140
High leg stroke (m)	1.7
Drill pipe diameter (mm)	Φ102 Φ108 Φ114
Drill pipe length (m)	1.5/2.0/3.0/6.0
Rig lifting force (T)	30
Rapid rise speed (m/min)	20
Fast feeding speed (m/min)	40
Width of loading (m)	2.95
Hoisting force of winch (T)	2
Swing torque (N.m)	8850 - 13150
Dimensions (mm)	630023002950
The penetration efficiency (m/h)	15 - 35
The engine brand	Cummins

FeiDa FYX180

FeiDa FYX200

FeiDa FY260

FeiDa FY300A

FeiDa FY300B

FeiDa FY350

FeiDa FY400

FeiDa FY450

FeiDa FY500

FeiDa FY600

FeiDa FY700

FeiDa FY800

FeiDa FY1000

FeiDa FY130

FeiDa FYL200

FeiDa KQZ200D

FeiDa FY800

All specifications are approximate and subject to change without notice.
