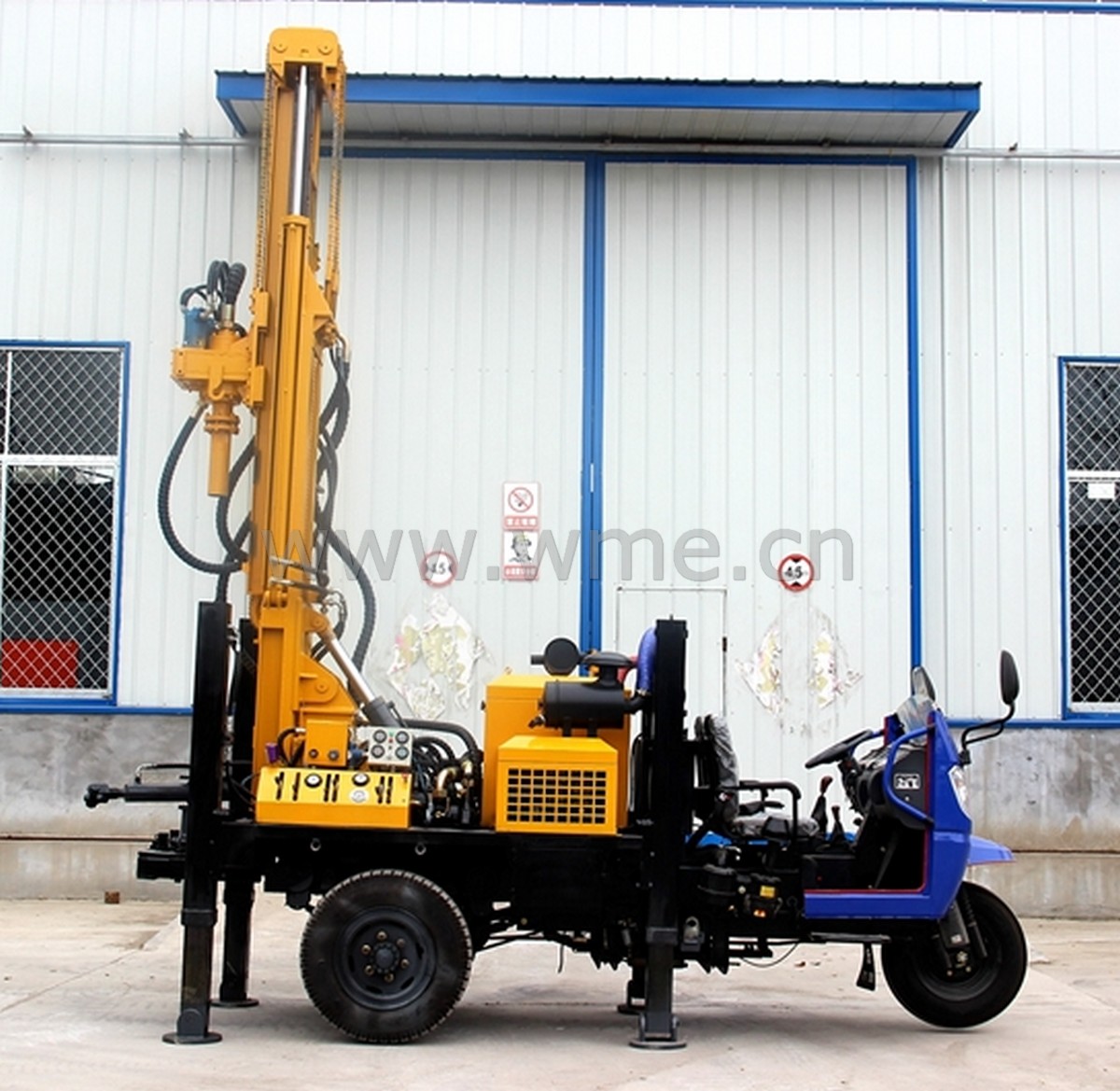

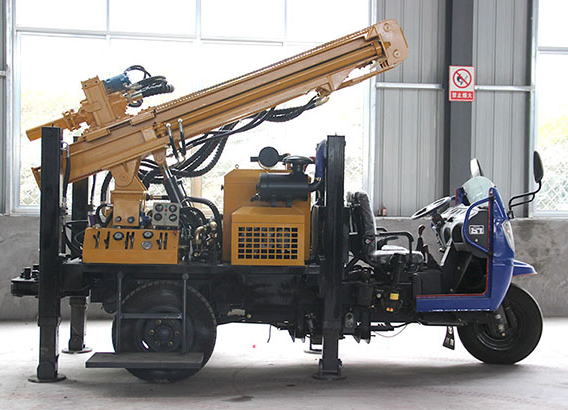

| FeiDa FYL200 |
| The weight (T) |
4.7 |
| The hole diameter (mm) |
140 - 254 |
| Drill depth (m) |
200 |
| One - time advance length (m) |
3.3 |
| Walking speed (km/h) |
20-40 |
| Gradeability (Max.) |
30 |
| Equipped capacitor (kw) |
65 |
| Working air pressure (MPA) |
1.7 - 2.5 |
| Air consumption (m³/min) |
17 - 31 |
| Swing speed (rpm) |
45 - 65 |
| Drill pipe diameter (mm) |
Φ76 Φ89 |
| Drill pipe length (m) |
1.5m 2.0m 3.0m |
| Rig lifting force (T) |
13 |
| Rapid rise speed (m/min) |
20 |
| Fast feeding speed (m/min) |
40 |
| Width of loading (m) |
/ |
| Swing torque (N.m) |
3400 - 4700 |
| Dimensions (mm) |
4350*1600*2450 |
| The penetration efficiency (m/h) |
10 - 35 |
| The engine brand |
quanchai |
|
|
