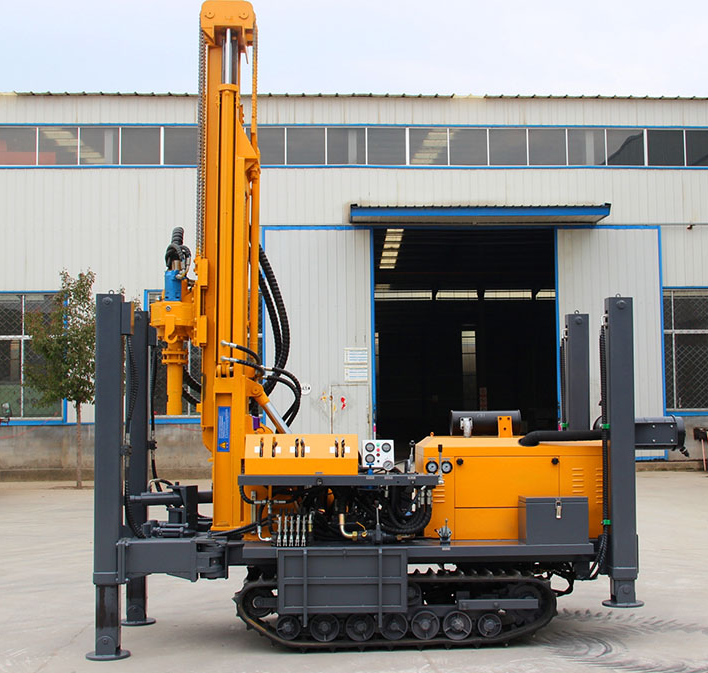

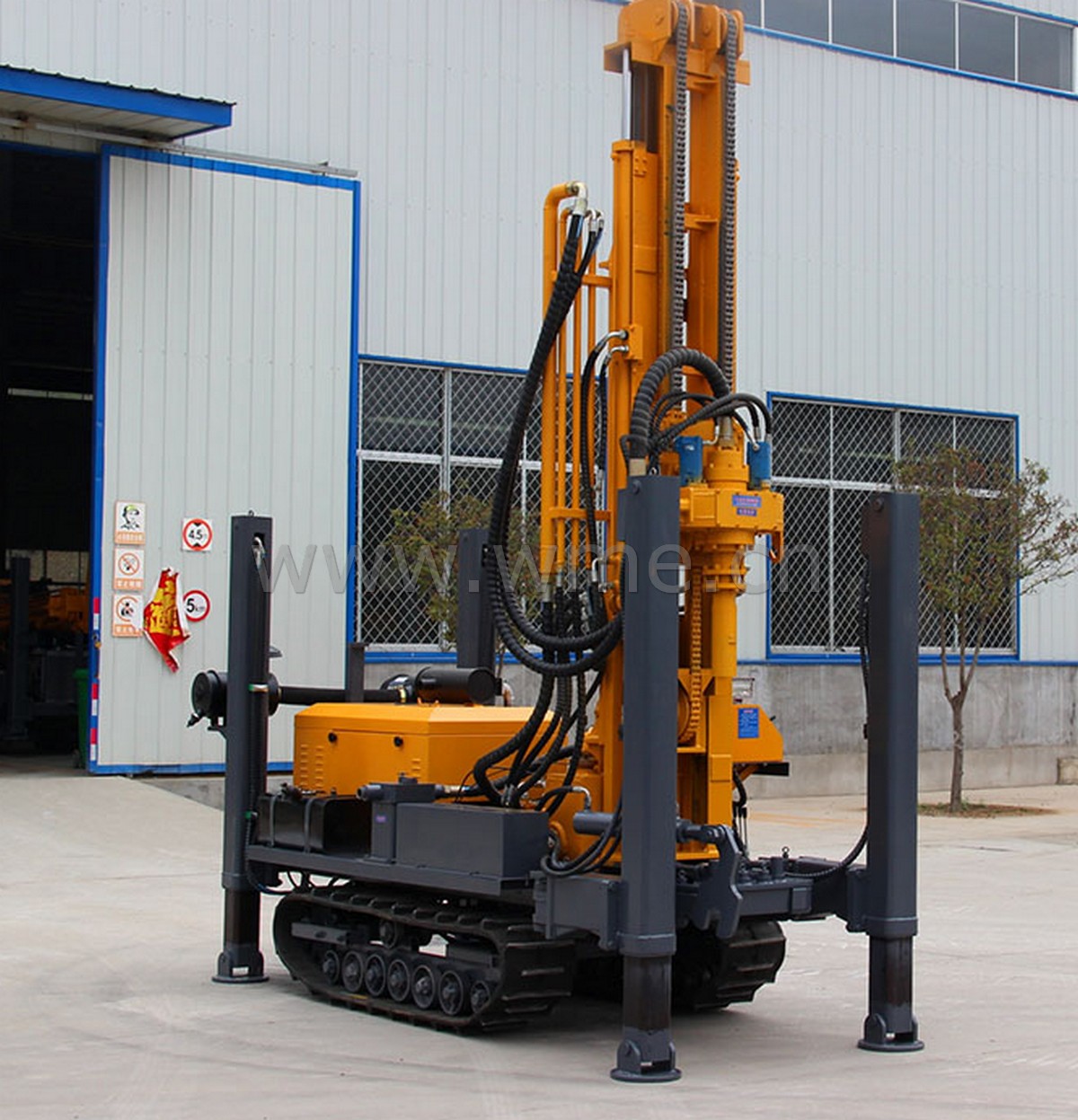

FeiDa FYX180

FeiDa FYX180 - China FeiDa Drilling Rig

FeiDa FYX180
The weight (T)	4.5
The hole diameter (mm)	140 - 254
Drill depth (m)	180
One - time advance length (m)	3.3
Walking speed (km/h)	2.5
Gradeability (Max.)	30
Equipped capacitor (kw)	55
Working air pressure (MPA)	1.7 - 2.5
Air consumption (m³/min)	17 - 31
Swing speed (rpm)	45 - 70
High leg stroke (m)	1.4
Drill pipe diameter (mm)	Φ76 Φ89
Drill pipe length (m)	1.5m 2.0m 3.0m
Rig lifting force (T)	12
Rapid rise speed (m/min)	20
Fast feeding speed (m/min)	40
Width of loading (m)	2.4
Hoisting force of winch (T)	--
Swing torque (N.m)	3200 - 4600
Dimensions (mm)	395016302250
The penetration efficiency (m/h)	10 - 35
The engine brand	quanchai
