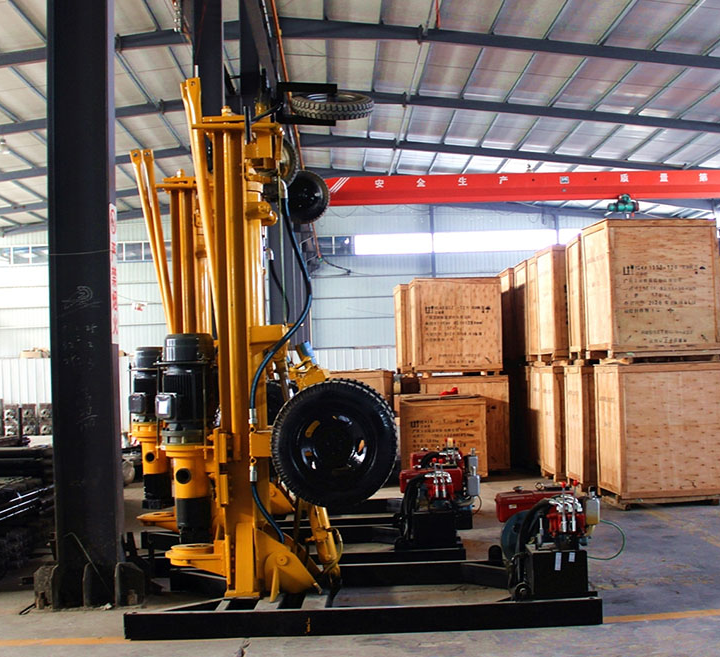

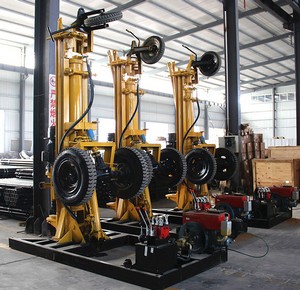

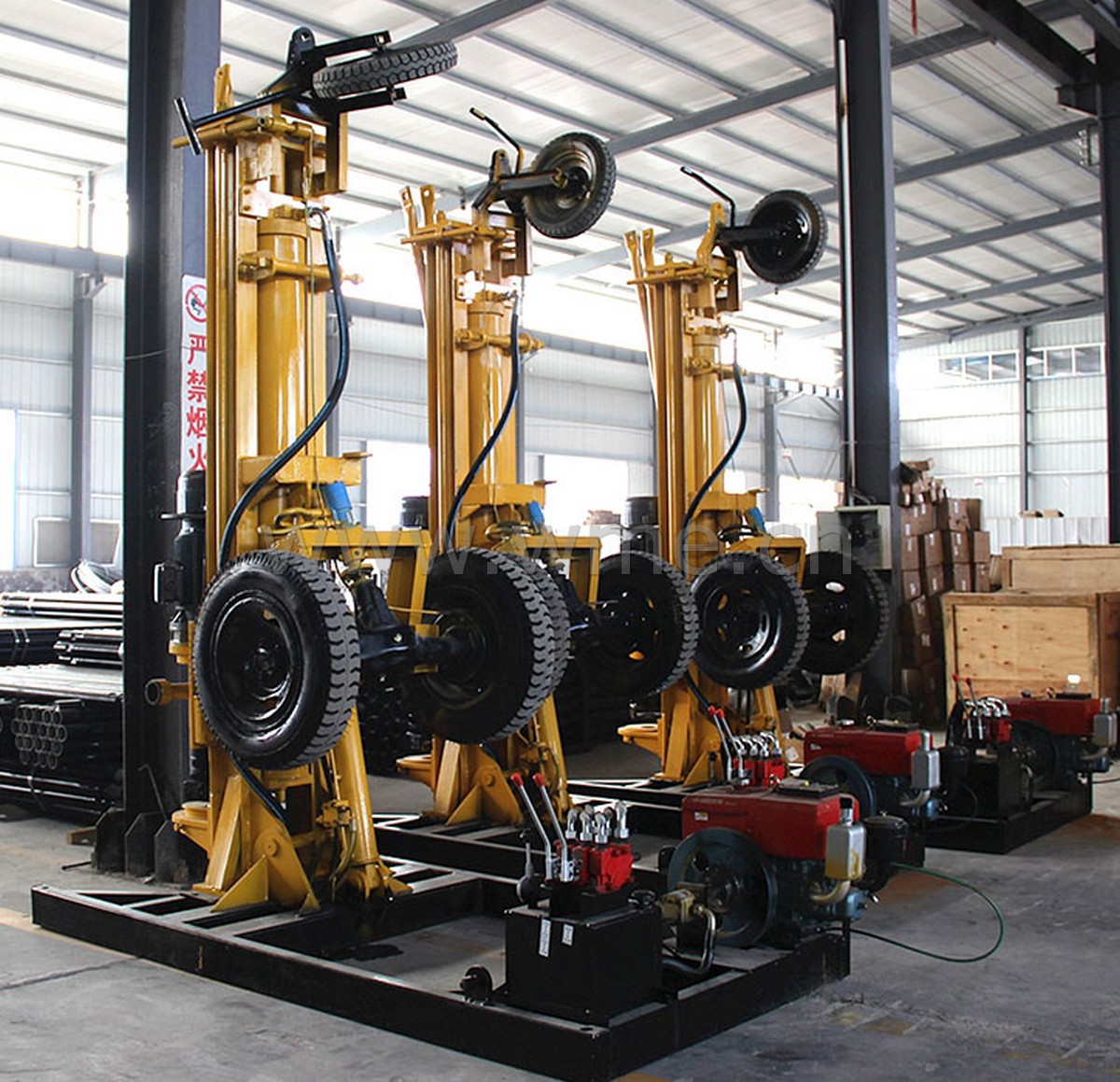

FeiDa KQZ200D



FeiDa KQZ200D - China FeiDa Drilling Rig



FeiDa KQZ200D
The weight (T) 1.8
The hole diameter (mm) 100 - 254
Drill depth (m) 200
One - time advance length (m) 1.8
Drilling direction (°) 45-90
Motor power（kw） 11
Working air pressure (MPA) 1.45 - 2.5
Air consumption (m³/min) 15 - 27
Swing speed (rpm) 52



FeiDa Drilling Rig

FeiDa FYX180
FeiDa FYX200
FeiDa FY260
FeiDa FY300A
FeiDa FY300B
FeiDa FY350
FeiDa FY400
FeiDa FY450
FeiDa FY500
FeiDa FY600
FeiDa FY700
FeiDa FY800
FeiDa FY1000
FeiDa FY130
FeiDa FYL200
FeiDa KQZ200D
FeiDa KQZ200D - China Drilling Rig
FeiDa KQZ200D







All specifications are approximate. Specifications are subject to change without notice.
