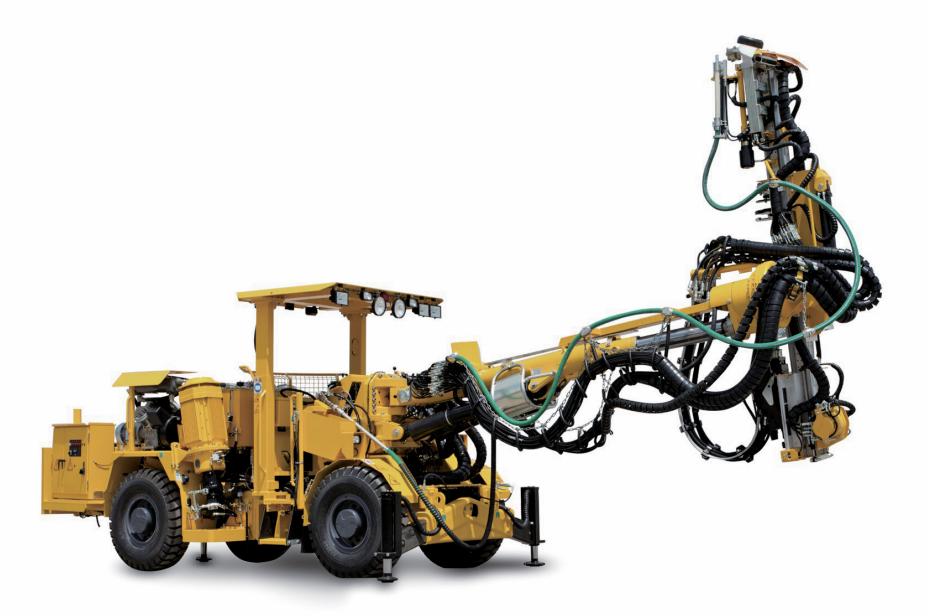

Anchoring Drill Rig

Anchoring Drill Rig

Underground Single/Double-Boom Jumbo

Tunnel Three - Boom Jumbo

Underground Medium - to - Deep Hole Drill

Anchoring Drill Rig

Open-pit Top-hammer Drill



         Drill Bit

Diameter Product No. Product Name Product Code Thread Type Head Design Alloy Water Hole Alloy Angle Weight
Number of Edge Teeth × Diameter Number of Top Teeth × Diameter Number of Side Teeth × Diameter Number of Top Teeth × Diameter
Standard Rod Body, Spherical Alloy
38mm 90004028 Thread Drill Bit 1431-38R28-27/59-50-41 R28 Planar 5×9mm 2×7mm 1×6mm 1×5mm 35° 0.5kg
Standard Rod Body, Spherical Alloy
415mm 90004014 Thread Drill Bit 1431-41R25-28/59-50-51 R25 Planar 5×9mm 2×8mm 2×5mm 1×5mm 35° 0.6kg



        Coupling Sleeve

Product No. Product Name Product Code Thread Type Length Diameter Weight
1# Female Thread 2# Female Thread
90007142 Coupling Sleeve 31-R32-44-150-23 R32 R32 150mm 44mm 0.9kg
90007167 Cross-Coupling Sleeve 33-R32/T38-55-170-23 R32 T38 170mm 55mm 2kg



       Drill Steel

Length Product No. Product Name Rod Body Model Product Code Thread Wrench Flat Weight
Connecting Shank Head Thread Connecting Shank Tail Thread
H25  Rod Body, R25-R32
2785mm 90008584 Jumbo Drill Steel H25 22H25-R25/R32-2785-23 R25 R32 None 10.5kg
H25  Rod Body, R28-R32
3090mm 90008193 Jumbo Drill Steel H28 22H28-R28/R32-3090-23 R28 R32 None 15.6kg



       Drill Tail

Jackhammer Brand Jackhammer Model Product Number Product Code Diameter Thread Length
Montebert HC25 90007505 4HC25F-45R32-200-23 45mm R32F 200mm
Montebert HC28 90007508 4HC28-45R32-452-23 45mm R32 452mm


All specifications are approximate. Specifications are subject to change without notice.
