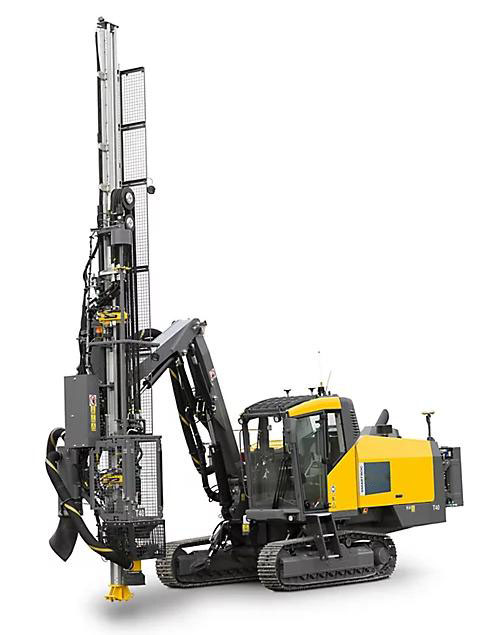

Open-pit Top-hammer Drill

Open-pit Top-hammer Drill

Underground Single/Double-Boom Jumbo

Tunnel Three - Boom Jumbo

Underground Medium - to - Deep Hole Drill

Anchoring Drill Rig

Open-pit Top-hammer Drill



         Drill Bit

Diameter Product No. Product Name Product Code Thread Type Head Design Alloy Water Hole Alloy Angle Weight
Number of Edge Teeth × Diameter Number of Top Teeth × Diameter Number of Side Teeth × Diameter Number of Top Teeth × Diameter
Standard Rod Body, Spherical Alloy
89mm 90004819 Threaded Drill Bit 1431-89T45-413/813-50-51/41 T45 Planar 8×13mm 4×13mm 1×6mm 2×13mm 35° 4.6kg
Standard Shank body, Parabolic Alloy
89mm 90005501 Threaded Drill Bit 1431-89T51-512/813-42-52 T51 Planar 8×13mm 5×12mm
 2×8mm 2×12mm 35° 3.5kg
89mm 90005206 Threaded Drill Bit 1431-89T51-512/813-42-51 T51 Planar 8×13mm 5×12mm 2×8mm 2×12mm 35° 3.5kg
Standard Rod Body, Conical Alloy
102m 90005503 Threaded Drill Bit 1431-102T51-612/814-42-62 T51 Planar 8×14mm 6×12mm 2×9mm 2×13mm 40° 5.3kg
102mm 90005208 Threaded Drill Bit 1431-102T51-612/814-42-61 T51 Planar 8×14mm 6×12mm 2×9mm 2×13mm 40° 5.3kg
115mm 90005240 Threaded Drill Bit 1431-115T51-712/814-50-61 T51 Planar 8×14mm 7×12mm 2×9mm 2×14mm 40° -
115mm 90005505 Threaded Drill Bit 1431-115T51-712/814-42-62 T51 Planar 8×14mm 7×12mm 2×9mm 2×14mm 40° -





        Drill Tail

Jackhammer Brand Jackhammer Model Product Number Product Code Diameter Thread Length
Epiroc COP1840 ?
41840-52T51-525-23
 52mm T51 525mm
Epiroc COP2160EX ?
42160EX-63T51-770-23
 63mm T51 770mm



        Drill Steel

Length Product No. Product Name Rod Body Model Product Code Thread Wrench Flat Weight
Connecting Shank Head Thread Connecting Shank Tail Thread
R52 Rod Body, T51 Thread
3660mm 90008556 Quick-Connect Mandrel R52
24R52-T51/72W-3660-23
 T51 T51 None 52.5kg
3660mm 90008040 Quick-Connect Mandrel R52
24R52-T51/72-3660-23
 T51 T51 None 52.5kg


All specifications are approximate. Specifications are subject to change without notice.
