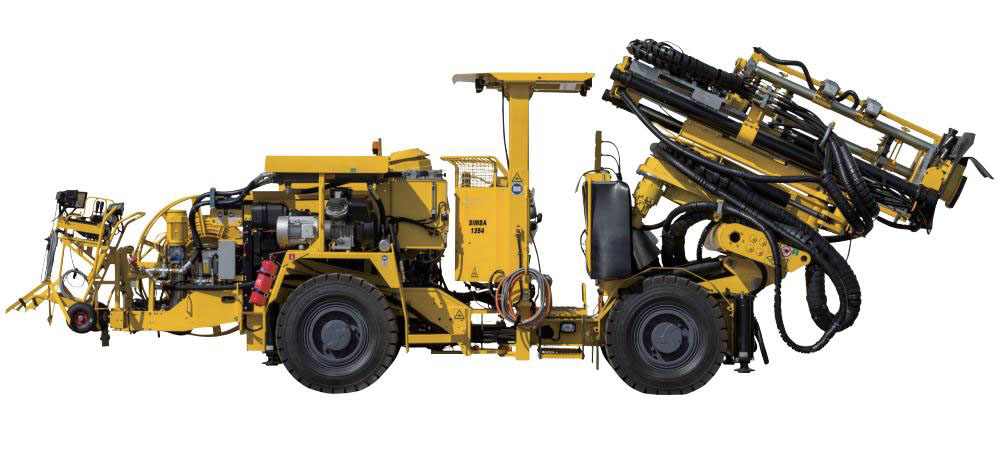

Underground Medium - to - Deep Hole Drill

Underground Medium - to - Deep Hole Drill

Underground Single/Double-Boom Jumbo

Tunnel Three - Boom Jumbo

Underground Medium - to - Deep Hole Drill

Anchoring Drill Rig

Open-pit Top-hammer Drill



         Drill Rods

Diameter Product No. Product Name Product Code Thread Type Head Design Alloy Water Hole Alloy Angle Weight
Number of Edge Teeth × Diameter Number of Top Teeth × Diameter Number of Side Teeth × Diameter Number of Top Teeth × Diameter
Standard Rod Body, Spherical Alloy
76mm 90005248 Thread Shank Head 1432-76T45-511/812-42-51 T45 Concave 8×12mm 5×11mm 1×7mm 4×7mm 35° 2.8kg
102mm 90005219 Thread Shank Head 1431-102T51-612/814-50-51 T51 Planar 8×14mm 6×12mm 2×9mm 2×14mm 35° 5.3kg
Standard Shank body, Conical Alloy
89mm 90005211 Thread Shank Head 1432-89T51-512/814-50-61 51 Concave 8×14mm 4×12mm
1×12mm		 1×8mm 4×9mm 35° 3.2kg
Standard Rod Body, Edge-Toothed, Head Cast Line Teeth
76mm 90005192 Thread Shank Head 1431-76T45-412/812-50-81 T45 Planar 8×12mm 4×12mm 2×7mm 2×11mm 35° 2.8kg
89mm 90005250 Thread Shank Head 1432-89T51-512/814-42-81 T51 Concave 5×12mm 8×14mm 1×8mm 4×9mm 35° -
102mm 90005249 Thread Shank Head 1431-102T51-712/814-42-81 T51 Planar 7×12mm 8×14mm 2×10mm 2×14mm 40° -



        Drill Tail

Jackhammer Brand Jackhammer Model Product Number Product Code Diameter Thread Length
Epiroc COP1838+ 90007504 41838+-52T45-525-24 52mm T45 525mm



        Jumbo Drill Steel

Length Product No. Product Name Rod Body Model Product Code Thread Wrench Flat Weight
Connecting Shank Head Thread Connecting Shank Tail Thread
R46 Mandrel, T45 Thread
1220mm 90008036 Quick-connect Mandrel R46 24R46-T45/65B-1220-23 T45 T45 Yes 43.2kg
1525mm 90008029 Quick-connect Mandrel R46 24R46-T45/65-1525-23 T45 T45 No 49.3kg
R52 Mandrel, T51 Thread
1525mm 90008579 Quick-connect Mandrel R52 24R52-T51/72-1525-23 T51 T51 No 43.2kg


All specifications are approximate. Specifications are subject to change without notice.
