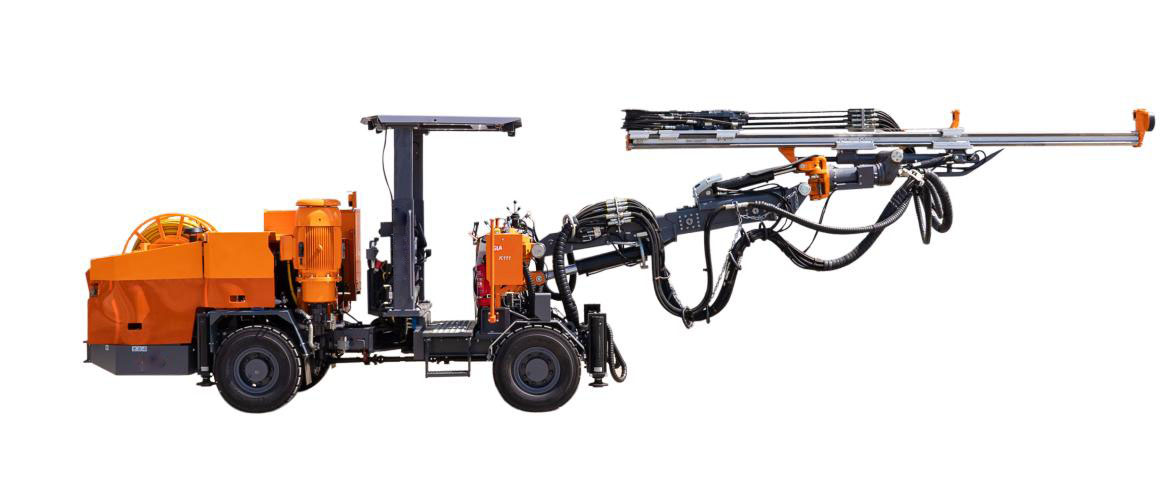

Underground Single/Double-Boom Jumbo

Underground Single/Double-Boom Jumbo

Underground Single/Double-Boom Jumbo

Tunnel Three - Boom Jumbo

Underground Medium - to - Deep Hole Drill

Anchoring Drill Rig

Open-pit Top-hammer Drill





Diameter Product No. Product Name Product Code Thread Type Head Design Alloy Water Hole Alloy Angle Weight
Number of Edge Teeth × Diameter Number of Top Teeth × Diameter Number of Side Teeth × Diameter Number of Top Teeth × Diameter
R32 Thread, Conventional Alloy
43mm 90005204 Threaded Drill Head 1431-43R32-38/69-50-51L R32 Planar 6×9mm 3×8mm 1×5mm 3×5mm 35° 0.7kg
45mm 90005202 Threaded Drill Head 1431-45R32-38/610-50-61 R32 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.73kg
45mm 90005196 Threaded Drill Head 1431-45R32-38/69-50-61 R32 Planar 6×9mm 3×8mm 1×5mm 3×5mm 40° 0.7kg
45mm 90004061 Threaded Drill Head 1431-45R32-38/69-50-51 R32 Planar 6×9mm 3×8mm 1×6mm 3×5mm 35° 0.8kg
45mm 90004060 Threaded Drill Head 1431-45R32-38/610-50-51 R32 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.8kg
SR35 Thread, Conventional Alloy
45mm 90005220 Threaded Drill Head 1431-45SR35-38/610-50-51 SR35 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.7kg
45mm 90005221 Threaded Drill Head 1431-45SR35-38/69-50-51 SR35 Planar 6×9mm 3×8mm 1×6mm 3×5mm 35° 0.75kg
45mm 90005223 Threaded Drill Head 1431-45SR35-38/69-50-61 SR35 Planar 6×9mm 3×8mm 1×5mm 3×5mm 40° 0.7kg
45mm 90005222 Threaded Drill Head 1431-45SR35-38/610-50-61 SR35 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.73kg
R32 Thread, Hardened Alloy
45mm 90005251 Threaded Drill Head 1431-45R32-38/610-50-61D R32 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.73kg
45mm 90005252 Threaded Drill Head 1431-45R32-38/69-50-61D R32 Planar 6×9mm 3×8mm 1×5mm 3×5mm 40° 0.7kg
45mm 90005217 Threaded Drill Head 1431-45R32-38/610-50-51D R32 Planar 6×10mm 3×8mm 1×6mm 3×5mm 35° 0.8kg
45mm 90005253 Threaded Drill Head 1431-45R32-38/69-50-51D R32 Planar 6×9mm 3×8mm 1×6mm 3×5mm 35° 0.8kg



         Coupling Sleeve

Diameter Product No. Product Name Product Code Thread Type Design Length Weight
55mm 90007337 Coupling Sleeve 31-T38A-55-19O-23 T38 Half-Bridge 190 1.9kg
55mm 90007338 Coupling Sleeve 31-T38A-55-17O-23 T38 Half-Bridge 170 1.7kg



        Jumbo Drill Steel

Length Product No. Product Name Rod Body Model Product Code Thread Weight
Connecting Shank Head Thread Connecting Shank Tail Thread
R32-T38 Regular, H35 Rod Body
3700mm 90008073 Jumbo Drill Steel H35 22H35-R32/T38-3700-23 R32 T38 28.6 kg
4310mm 90008074 Jumbo Drill Steel H35 22H35-R32/T38-4310-23 R32 T38 33.6kg
SR35-T38 Regular, H35 Rod Body
3700mm 90008604 Jumbo Drill Steel H35 22H35-SR35/T38-3700-23 SR35 T38 28.6kg
4310mm 90008603 Jumbo Drill Steel H35 22H35-SR35/T38-4310-23 SR35 T38 33.6kg
R32-T38 Fast, H35 Rod Body
3700mm 90008332 Fast Drill Steel H35 24H35-R32/T38-3700-23 R32 T38 29.8kg
4310mm 90008333 Fast Drill Steel H35 24H35-R32/T38-4310-23 R32 T38 34.7kg



        Drill Tail

Jackhammer Brand Jackhammer Model Product Number Product Code Diameter Thread Length
Epiroc COP1838HD+ 90007500 41838HD+-38T38-435-23 38mm T38 435mm
Montebert HC95SA 90007524 4HC95SA-45R38-468-23 45mm T38 468mm
Shantevik HLX5, HFX5 90007501 4HLX5-45T38-500-23 45mm T38 500mm
Montebert HC50 90007514 4HC50-38R38-390-23 38mm R38 390mm


All specifications are approximate. Specifications are subject to change without notice.
