Technical parameters

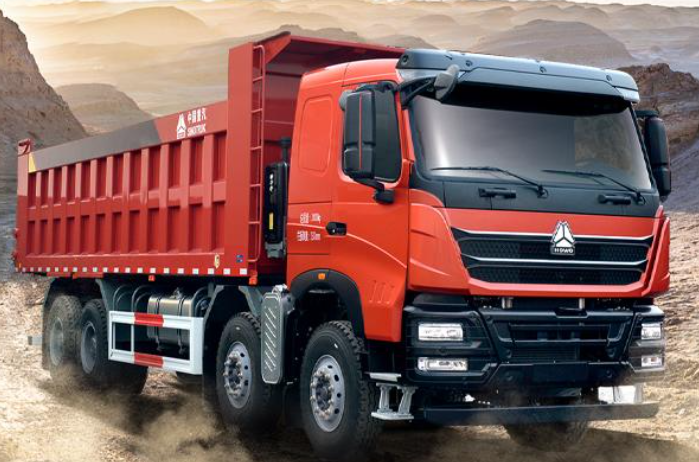

| Howard TH7/WP13.550E62+5.92 |
| Vehicle model |
ZZ3317V486HF1 |
| Motor model |
WP13.550E62 |
| Motor Net power (kw) / speed (r/min) |
405/1900 |
| Motor Maximum torque (Nm) / speed (r/min) |
2550/950-1400 |
| Gearbox |
HW25712XSCJ+HW50 direct connection power take-off |
| Clutch (mm) |
φ |
| Rear axle model |
MCP23ZG |
| Rear axle speed ratio |
5.92 |
| Fuel tank (L) |
600 |
| Frame section (mm) |
28+8+8/316 monolithic support plate |
| Suspension (front spring rear spring) |
Front and rear super strong multi-plate springs (11/11/12) |
| tyre |
12.00R20 (Mixed Pattern) |
Vehicle configuration
| Vehicle parameters |
| Engine model |
WP13.550E62 |
| Shape (mm) |
11800,11940,11610,11710×2520,2550×3490,3635,3850,3980 |
| Wheelbase (mm) |
4825 |
| Front overhang Rear overhang (mm) |
1950/1350 |
| Maximum total mass (Kg) |
31000 |
| Rated number of passengers (persons) |
2 |
|
|
