| Model |

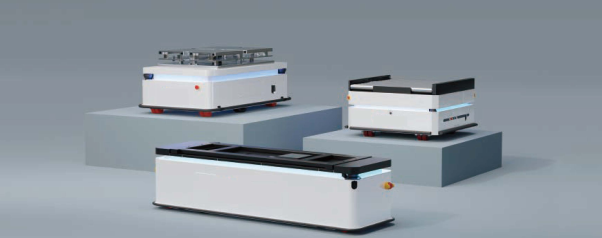

OMNI-Material Rack Lifting |
| Navigation Method |
Laser SLAM/Visual/Inertial Multi - Sensor Fusion Positioning Nav |
| Rated Load |
≥1000Kg |
| Overall Dim (LWH) |
1800×550×450mm |
| Self-Weight |
500kg (Customizable) |
| Laser Sensor |
Diagonal Dual Lasers |
| Laser FOV |
360° |
| Obstacle Detec Dist |
30m |
| Bottom Camera |
Std |
| Top - View Camera |
Opt |
| Touch Screen |
7 - Inch |
| Pos Accuracy |
±10mm/1° |
| Docking Accuracy (w/Aux Markers) |
±2mm/0.2° |
| Travel Speed |
0 - 1.2m/s |
| Main Drive Mode |
Omnidirectional Travel |
| Battery Spec |
48V 60Ah Li - Iron Phosphate Batt (Customizable) |
| Charging Time |
3h |
| Cont Op Time |
8h |
| Battery Life |
≥1500 Cycles |
| Charging Mode |
Auto/Manual |
| Laser Obstacle Avoidance |
Std |
| Laser Stop |
Std |
| Audible - Visual Alarm |
Std |
| Safety Edge |
Std |
| Depth Vision Obstacle Stop |
None |
| Emergency Stop |
Std |
| Indoor/Outdoor |
Indoor |
| Single Map Size |
≥1000000㎡ |
| Working Temp |
0 - 40°C |
| Working Humidity |
10% - 90% No Condensation |
| Air Env |
No Dust, Flammable, Explosive, Corrosive Gases |
| Network Comm |
IEEE 802.11a/b/g/n/ac |
|
|
