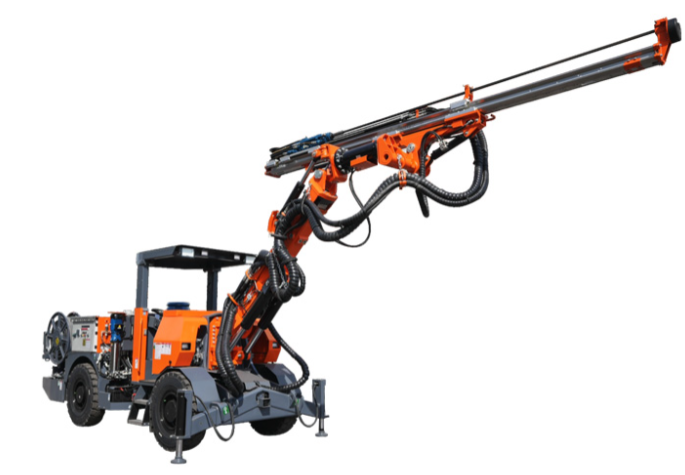

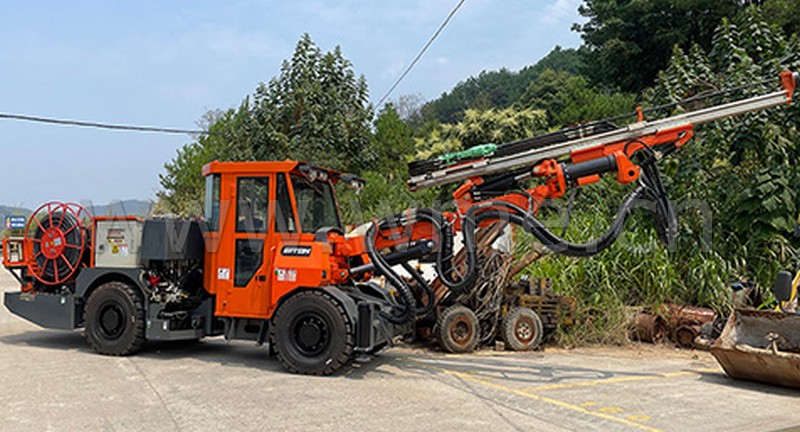

SITON DD4

DD4 - SITON DD4 - China SITON Mining Drill Rig

Model	DD4
Overall Dimensions (Length×Width×Height)	11934×2080×2249/2994
Ground Clearance (mm)	300
Gross Weight (Kg)	15400
Turning Radius (mm)	Inner 3600/Outer 5900
Travel Speed (Km/h)	13.5
Engine	Yuchai (National IV)
Rated Power(Kw)	59
Torque(N·m)	300
Front Axle	Wet type
Rear Axle	Wet type, swing ±7°
Tires	12.00R20
