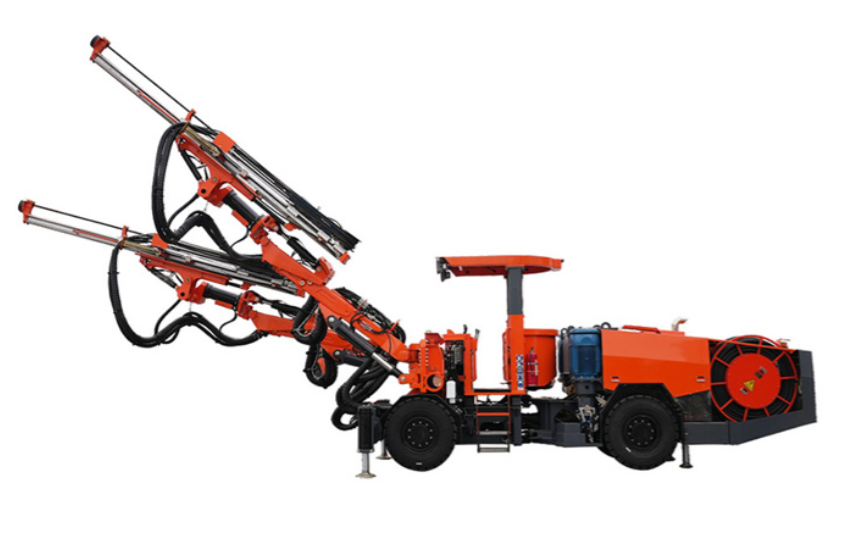

| Model |
DW2-50 |
| Complete machine weight (kg) |
20000 |
| Overall dimensions (mm) |
11965×1980×2960/2260 |
| Operating range (width×height, mm) |
8162×7330/6255×5428 (Non - parallel movement/Parallel movement) |
| Model × Quantity of Rock Drill |
HC109/HC50 |
| Control Mode of Boom |
Hydraulic parallel swing arm |
| Telescopic Stroke (mm) |
1190 |
| Propulsion Type |
Oil cylinder - Steel wire rope |
| Total Length of Propulsion Beam (mm) |
5557 (Drilling 3400mm deep) / 6160 (4000mm deep) |
| Maximum Propulsion Force (kN) |
15/12 |
| Drill Pipe Length (mm) |
3700/4300 |
