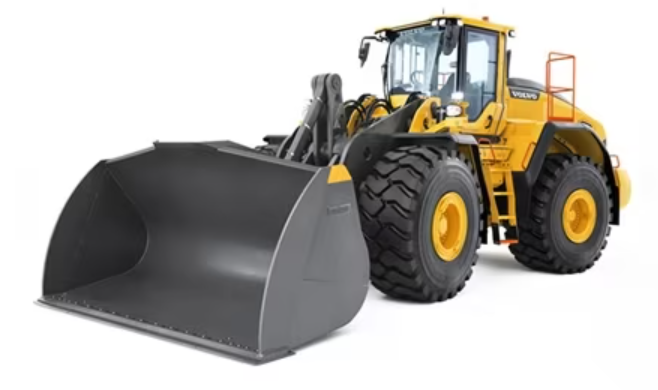

Volvo L220H

L220H - Volvo L220H - Volvo Wheel Loader

Model	L220H
Static tipping load at full turn	46,295 lbs
Bucket capacity	5.6 - 20.9 yd³
Log grapples	2.2 - 4.8 ft²
Operating weight	68,780 - 72,970 lbs
Breakout force	55,075 lbf
Engine	D13J (Tier 4f)
Max power at	1,300 - 1,400 rpm
...ISO 9249, SAE J1349 net	374 hp
...ECE R120 net	375 hp
Max torque at	1,100 rpm
...ECE R120 net	1,679 lbf ft
...ISO 9249, SAE J1349 net	1,671 lbf ft
Tires	29.5 R25, 875/65 R29

L350H

L260H

L260

L220H

L220

L200 High Lift

L200H High Lift

L180H

L180

L150H

L150

L120H

L110H

L90H

L70H

L60H

All specifications are approximate. Specifications are subject to change without notice.
