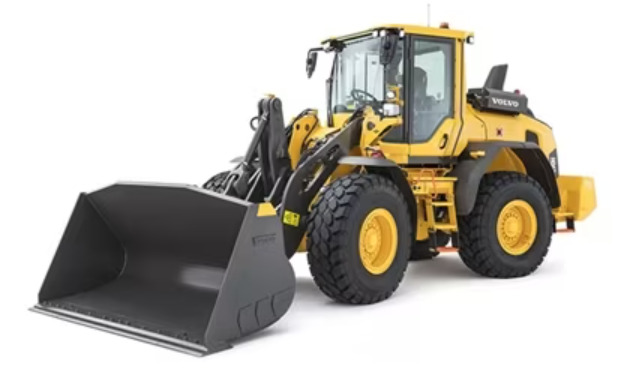

Volvo L90H

L90H - Volvo L90H - Volvo Wheel Loader

Model	L90H
Static tipping load at full turn	22,265 lbs
Bucket capacity	2.9 - 9.2 yd³
Log grapples	1.6 - 2.9 ft²
Operating weight	31,968 - 38,140 lbs
Breakout force	31,470 lbf
Engine	Volvo D6J
Max power at	1,400 - 1,900 rpm
...ISO 9249, SAE J1349 net	184 hp
Max torque at	1,400 rpm
...ISO 9249, SAE J1349 net	689 lbf ft
Tires	20.5R25 600/65R25

L350H

L260H

L260

L220H

L220

L200 High Lift

L200H High Lift

L180H

L180

L150H

L150

L120H

L110H

L90H

L70H

L60H

All specifications are approximate. Specifications are subject to change without notice.
