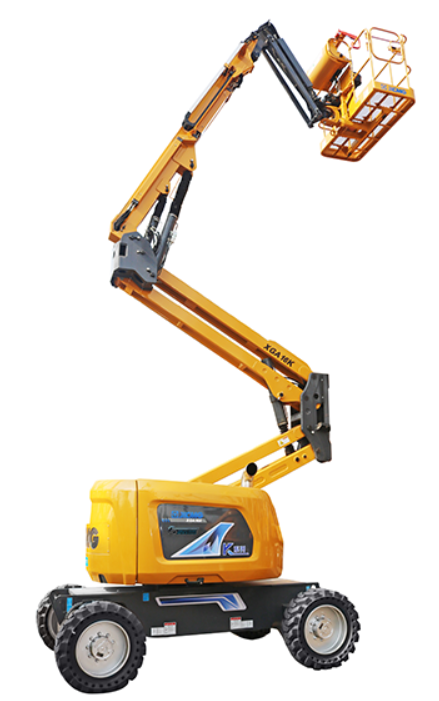

XCMG XGA16K

XGA16K - XCMG XGA16K - XCMG Aerial Working Machinery

Model	XGA16K
Working Height	16.63m
Lift capacity	256kg (unlimited)/350kg (limited)
Weight	7600kg
Overall dimension-Stowed	6850×2320×2380mm
Overall dimension-Transportation	5600×2320×2650mm
Dimension of working platform	1830×760×1150mm
Wheelbase	2360mm
Fly jib length	1420mm
Ground clearance	300mm
Max.Platform height	14.63m
Max.Working range	8.82m
Max.up and over clearance	7.7m
Max.Occupants	2/3
Max.Working slope	X-5°/Y-5°
Telescopic boom luffing range	0°~+65°
Flying jib luffing range	-65°~70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5.5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	3200mm/4700mm
Turntable tailswing(stowed)	0
Max.Gradeability	45%(24°)

XGA16K

XGA18K

XGA20K

XGA26K

XGA48K

All specifications are approximate. Specifications are subject to change without notice.
