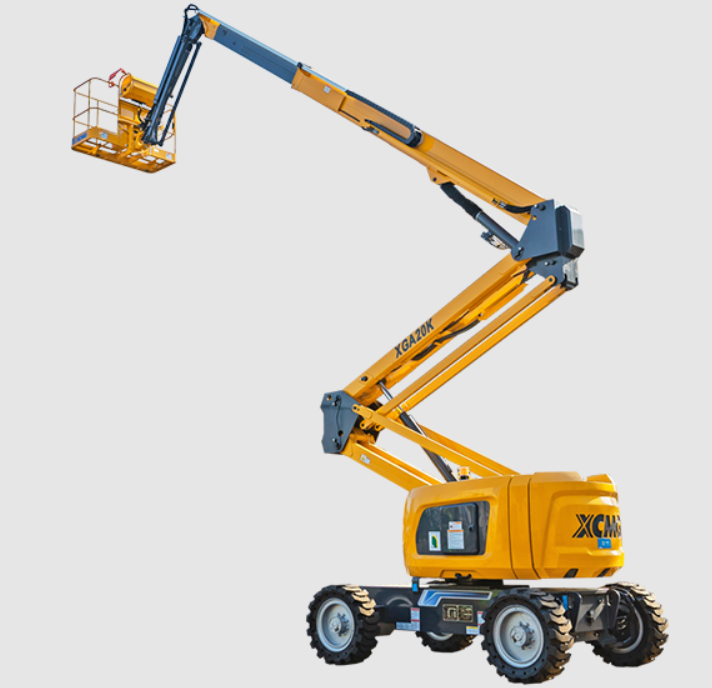

XCMG XGA20K

XGA20K - XCMG XGA20K - XCMG Aerial Working Machinery

Model	XGA20K
Working Height	20.63m
Lift capacity	256kg (unlimited)/350kg (limited)
Weight	9900kg
Overall dimension-Stowed	8520×2300×2400mm
Overall dimension-Transportation	6300×2300×3100mm
Dimension of working platform	1830×760×1150mm
Wheelbase	2500mm
Fly jib length	1850mm
Ground clearance	330mm
Max.Platform height	18.63m
Max.Working range	12.08m
Max.up and over clearance	7.72m
Max.Occupants	2/3
Max.Working slope	X-3°/Y-3°
1st Boom luffing range	0°~+72°
2st Boom luffing range	0°~73°
Flying jib luffing range	-65°~70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5.5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	2300mm/5000mm
Turntable tailswing(stowed)	540
Max.Gradeability	45%(24°)

XGA16K

XGA18K

XGA20K

XGA26K

XGA48K

All specifications are approximate. Specifications are subject to change without notice.
