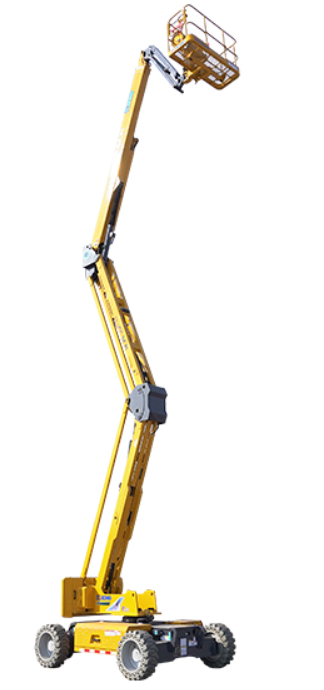

XCMG XGA22ACK(-Li)

XGA22ACK(-Li) - XCMG XGA22ACK(-Li) - XCMG Aerial Working Machinery

Model	XGA22ACK(-Li)
Working Height	22.21m
Lift capacity	256kg(unlimited)/350kg(limited)
Weight	10100kg
Overall dimension-Stowed	8490×2490×2400mm
Overall dimension-Transportation	8000×2490×2100mm
Dimension of working platform	1830×760×1150mm
Wheelbase	2500mm
Fly jib length	1850mm
Ground clearance	300mm
Max.Platform height	20.21m
Max.Working range	12.23m
Max.up and over clearance	9.5m
Max.Occupants	2/3
Max.Working slope	X-5°/Y-5°
1st Boom luffing range	-0°~+70°
2st Boom luffing range	-0°~+71°
Flying jib luffing range	-65°~+70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	4.5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	5000mm
Turntable tailswing(stowed)	560mm
Max.Gradeability	40%(22°)

XGA16ACK(-Li)

XGA18ACK(-Li)

XGA20ACK(-Li)

XGA22ACK(-Li)

XGA24ACK-Li

All specifications are approximate. Specifications are subject to change without notice.
