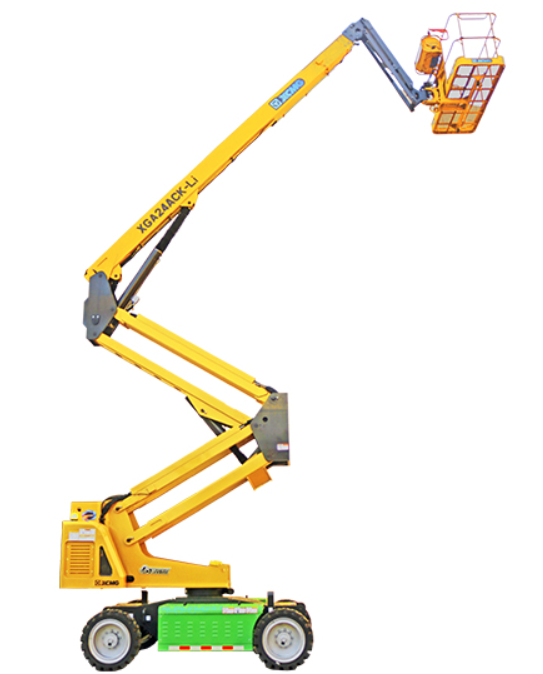

XCMG XGA24ACK-Li

XGA24ACK-Li - XCMG XGA24ACK-Li - XCMG Aerial Working Machinery

Model	XGA24ACK-Li
Working Height	23.6m
Lift capacity	230kg(unlimited)/340kg(limited)/460kg(limited)
Weight	10900kg
Overall dimension-Stowed	9830×2490×2620mm
Overall dimension-Transportation	7550×2490×3000mm
Dimension of working platform	2440×910×1150mm
Wheelbase	2500mm
Fly jib length	1850mm
Ground clearance	300mm
Max.Platform height	21.6m
Max.Working range	14.1m
Max.up and over clearance	8.9m
Max.Occupants	2/3
Max.Working slope	X-5°/Y-5°
1st Boom luffing range	-10°~+79°
2st Boom luffing range	-36°~+70°
Flying jib luffing range	-65°~+70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	2550mm/5640mm
Turntable tailswing(stowed)	840mm
Max.Gradeability	40%(22°)

XGA16ACK(-Li)

XGA18ACK(-Li)

XGA20ACK(-Li)

XGA22ACK(-Li)

XGA24ACK-Li

All specifications are approximate. Specifications are subject to change without notice.
