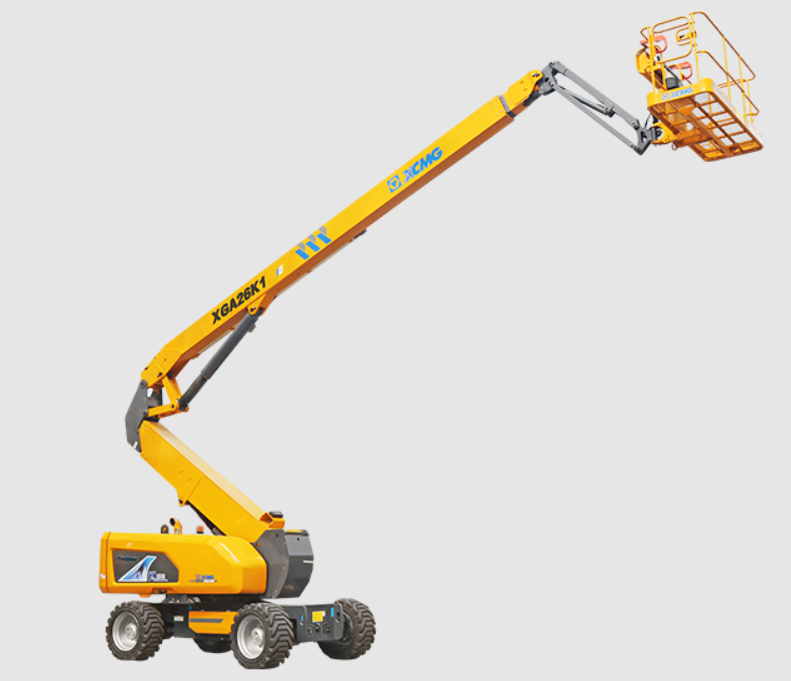

XCMG XGA26K

XGA26K - XCMG XGA26K - XCMG Aerial Working Machinery

Model	XGA26K
Working Height	26.6m
Lift capacity	256kg
Weight	18100kg
Overall dimension-Stowed	11760×2490×2950mm
Overall dimension-Transportation	9400×2490×3000mm
Dimension of working platform	2440×910×1150mm
Wheelbase	3000mm
Fly jib length	1850mm
Ground clearance	380mm
Max.Platform height	24.6m
Max.Working range	19.5m
Max.up and over clearance	8.7m
Max.Occupants	2
Max.Working slope	X-3°/Y-3°
1st Boom luffing range	-1°~+70°
2st Boom luffing range	-35°~68°
Flying jib luffing range	-65°~70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	2355mm/4625mm
Turntable tailswing(stowed)	2255
Max.Gradeability	45%(24°)

XGA16K

XGA18K

XGA20K

XGA26K

XGA48K

All specifications are approximate. Specifications are subject to change without notice.
