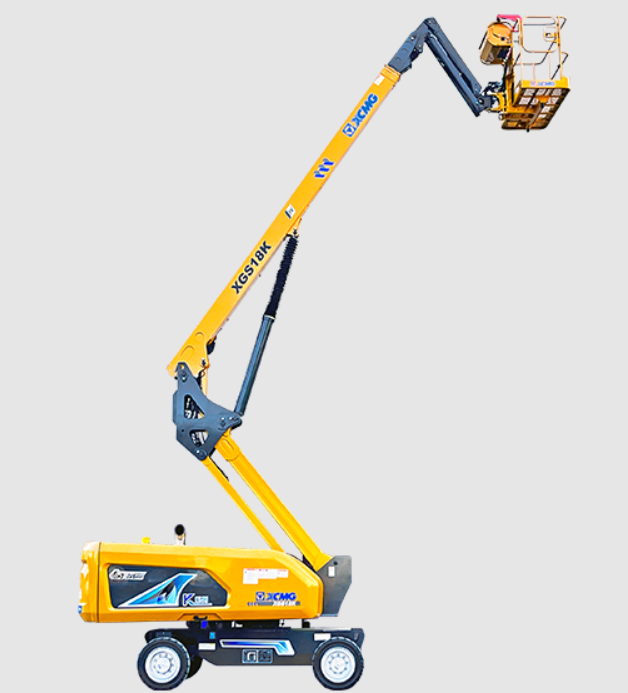

XCMG XGS18K

XGS18K - XCMG XGS18K - XCMG Aerial Working Machinery

Model	XGS18K
Working Height	18.28m
Lift capacity	300kg (unlimited)
Weight	8000kg
Overall dimension-Stowed	9000×2320×2520mm
Overall dimension-Transportation	7400×2320×2600mm
Dimension of working platform	1830×760×1150mm
Wheelbase	2360mm
Fly jib length	1420mm
Ground clearance	240mm
Max.Platform height	16.28m
Max.Working range	12.05m
Max.Occupants	2
Max.Working slope	X-5°/Y-5°
Telescopic boom luffing range	-8°~+73.5°
Flying jib luffing range	-60°~70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5.5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	3200mm/4700mm
Turntable tailswing(stowed)	1400mm
Max.Gradeability	45%(24°)

XGS18K

XGS20K

XGS22K

XGS25K

XGS28K

XGS30K

XGS32K

XGS34K(II)

XGS40K

XGS45K

XGS50K

XGS58K

XGS70K

All specifications are approximate. Specifications are subject to change without notice.
