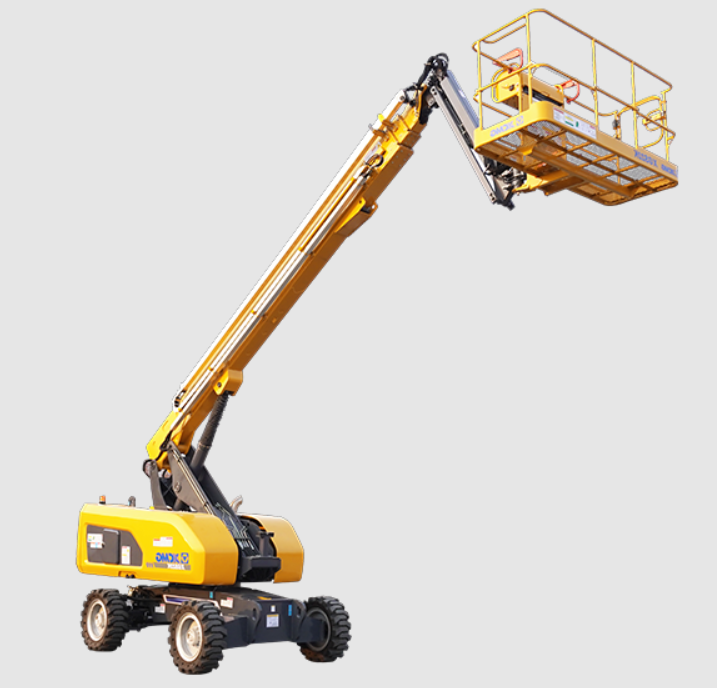

XCMG XGS22K

XGS22K - XCMG XGS22K - XCMG Aerial Working Machinery

Model	XGS22K
Working Height	22m
Lift capacity	300kg (unlimited)/460kg(limited)
Weight	12460kg
Overall dimension-Stowed	10080×2490×2530mm
Overall dimension-Transportation	9850×2490×3000mm
Dimension of working platform	2440×910×1150mm
Wheelbase	2500mm
Fly jib length	1850mm
Ground clearance	300mm
Max.Platform height	20m
Max.Working range	17.2m
Max.Occupants	3
Max.Working slope	X-3°/Y-3°
Telescopic boom luffing range	-3°~+73°
Flying jib luffing range	-65°~+70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	6.3 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	3195mm/6160mm
Turntable tailswing(stowed)	1310mm
Max.Gradeability	45%(24°)

XGS18K

XGS20K

XGS22K

XGS25K

XGS28K

XGS30K

XGS32K

XGS34K(II)

XGS40K

XGS45K

XGS50K

XGS58K

XGS70K

All specifications are approximate. Specifications are subject to change without notice.
