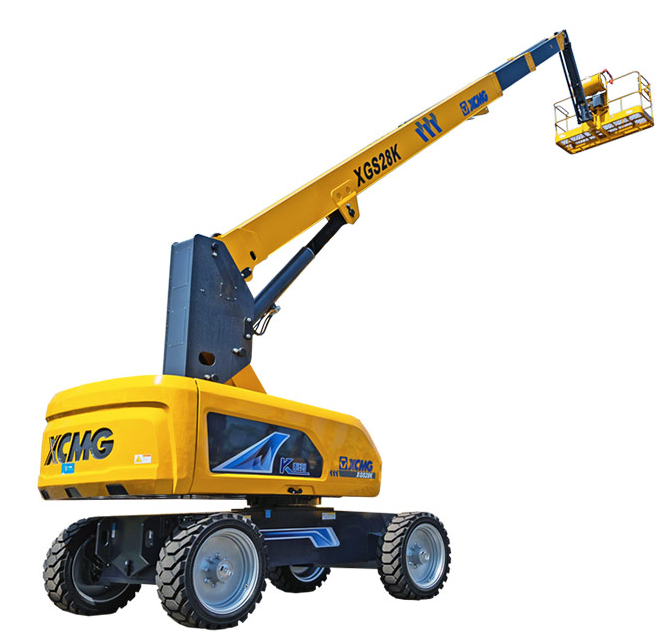

XCMG XGS28K

XGS28K - XCMG XGS28K - XCMG Aerial Working Machinery

Model	XGS28K
Working Height	28.8m
Lift capacity	300kg (unlimited)/460kg(limited)
Weight	15900kg
Overall dimension-Stowed	11690×2490×2930mm
Overall dimension-Transportation	11460×2490×3000mm
Dimension of working platform	2440×910×1150mm
Wheelbase	3000mm
Fly jib length	1850mm
Ground clearance	320mm
Max.Platform height	26.8m
Max.Working range	22m
Max.Occupants	3
Max.Working slope	X-3°/Y-3°
Telescopic boom luffing range	-4°~+73°
Flying jib luffing range	-65°~+70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	6 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	3155mm/6360mm
Turntable tailswing(stowed)	1890mm
Max.Gradeability	45%(24°)

XGS18K

XGS20K

XGS22K

XGS25K

XGS28K

XGS30K

XGS32K

XGS34K(II)

XGS40K

XGS45K

XGS50K

XGS58K

XGS70K

All specifications are approximate. Specifications are subject to change without notice.
