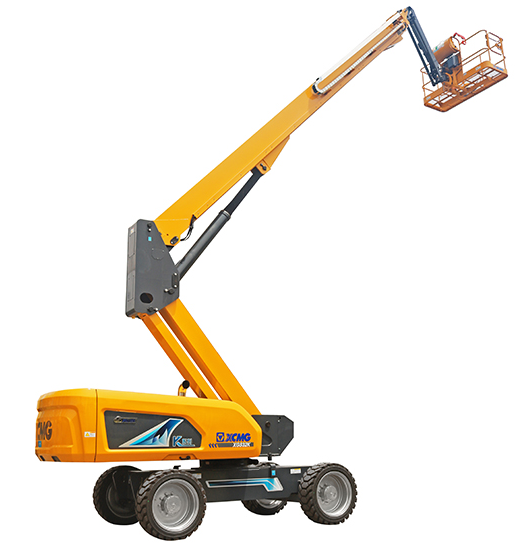

XCMG XGS32K

XGS32K - XCMG XGS32K - XCMG Aerial Working Machinery

Model	XGS32K
Working Height	32.6m
Lift capacity	300kg (unlimited)/460kg(limited)
Weight	18500kg
Overall dimension-Stowed	13100×2490×2980mm
Overall dimension-Transportation	13100×2490×2980mm
Dimension of working platform	2440×910×1150mm
Wheelbase	3000mm
Fly jib length	1850mm
Ground clearance	400mm
Max.Platform height	30.6m
Max.Working range	20m
Max.Occupants	3
Max.Working slope	X-5°/Y-5°
Telescopic boom luffing range	-4°~+73°
Flying jib luffing range	-65°~+70°
Turntable rotation	360°
Platform rotation	160°
Drive speed(stowed)	5.5 km/h
Drive speed(up or extended)	0.6 km/h
Min.Turning radius(inside/outside)	4400mm/6250mm
Turntable tailswing(stowed)	2030mm
Max.Gradeability	45%(24°)

XGS18K

XGS20K

XGS22K

XGS25K

XGS28K

XGS30K

XGS32K

XGS34K(II)

XGS40K

XGS45K

XGS50K

XGS58K

XGS70K

All specifications are approximate. Specifications are subject to change without notice.
