| Model |

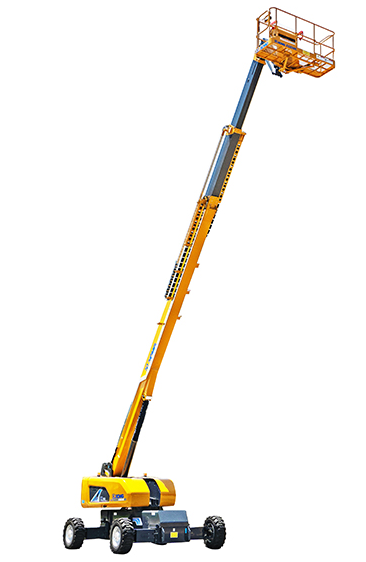

XGS34K(II) |
| Working Height |
34.3m/34.5m |
| Lift capacity |
300kg (unlimited)/460kg(limited) |
| Weight |
19300kg |
| Overall dimension-Stowed |
14400×2490×3000mm |
| Overall dimension-Transportation |
12800×2490×3000mm |
| Dimension of working platform |
2400×900×1150mm |
| Overall Width(Axle retracted/Axle extended) |
2490mm/3800mm |
| Fly jib length |
1420mm |
| Ground clearance |
300mm |
| Max.Platform height |
32.3m |
| Max.Working range |
24.7m/20.7m |
| Max.Occupants |
3 |
| Max.Working slope |
X-3°/Y-3° |
| Telescopic boom luffing range |
-6°~+75° |
| Flying jib luffing range |
-60°~+70° |
| Turntable rotation |
360° |
| Platform rotation |
160° |
| Drive speed(stowed) |
5.0 km/h |
| Drive speed(up or extended) |
0.5 km/h |
| Min.Turning radius-Axle retracted(inside/outside) |
7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) |
| Min.Turning radius-Axle extended(inside/outside) |
5000mm/8000mm(2-wheel) 2400mm/5800mm(4-wheel) |
| Turntable tailswing(Axle retracted/Axle extended) |
2085/1430mm |
| Max.Gradeability |
45%(24°) |
