| Model |

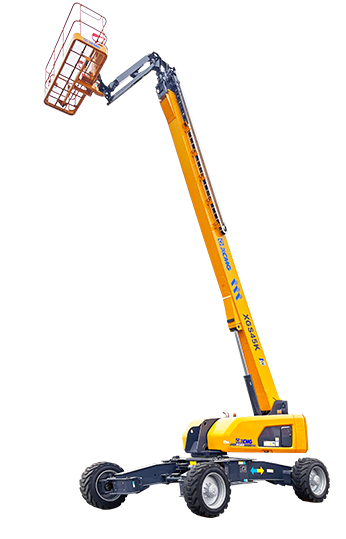

XGS45K |
| Working Height |
45.1m |
| Lift capacity |
300kg (unlimited)/460kg(limited) |
| Weight |
22200kg |
| Overall dimension-Stowed |
15420×2490×2940mm |
| Overall dimension-Transportation |
12530×2490×3940mm |
| Dimension of working platform |
2400×900×1150mm |
| Wheelbase |
4630（Axle retracted）/4243（Axle extended） |
| Overall Width(Axle retracted/Axle extended) |
2490mm/4400mm |
| Fly jib length |
2440mm |
| Ground clearance |
400mm |
| Max.Platform height |
43.1m |
| Max.Working range |
25.2m |
| Max.Occupants |
3 |
| Max.Working slope |
X-3°/Y-3° |
| Telescopic boom luffing range |
-1°~+75° |
| Flying jib luffing range |
-60°~+70° |
| Turntable rotation |
360° |
| Platform rotation |
160° |
| Drive speed(stowed) |
5.0 km/h |
| Drive speed(up or extended) |
0.5 km/h |
| Min.Turning radius-Axle retracted(inside/outside) |
14800mm/17200mm(2-wheel) 7100mm/9600mm(4-wheel) |
| Min.Turning radius-Axle extended(inside/outside) |
5500mm/8700mm(2-wheel) 2400mm/6300mm(4-wheel) |
| Turntable tailswing(Axle retracted/Axle extended) |
2649/1694mm |
| Max.Gradeability |
40%(21°) |
