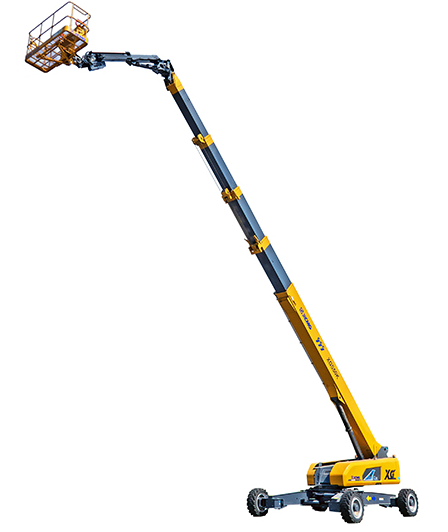

| Model |
XGS50K |
| Working Height |
50m |
| Lift capacity |
300kg (unlimited)/460kg(limited) |
| Weight |
24400kg |
| Overall dimension-Stowed |
17460×2490×3000mm |
| Overall dimension-Transportation |
12550×2490×3000mm |
| Dimension of working platform |
2400×900×1150mm |
| Wheelbase |
4630（Axle retracted）/4243（Axle extended） |
| Overall Width(Axle retracted/Axle extended) |
2490mm/5030mm |
| Fly jib length |
3970(Axle retracted)/5970（Axle extended） |
| Ground clearance |
400mm |
| Max.Platform height |
48m |
| Max.Working range |
25.2m |
| Max.Occupants |
3 |
| Max.Working slope |
X-3°/Y-3° |
| Telescopic boom luffing range |
0°~+80° |
| Flying jib luffing range |
-45°~+75° |
| Turntable rotation |
360° |
| Platform rotation |
160° |
| Drive speed(stowed) |
4.5 km/h |
| Drive speed(up or extended) |
0.5 km/h |
| Min.Turning radius-Axle retracted(inside/outside) |
13810/17140 mm(2-wheel) 7100mm/9500 mm(4-wheel) |
| Min.Turning radius-Axle extended(inside/outside) |
5500mm/8700mm(2-wheel) 2400mm/6300mm(4-wheel) |
| Turntable tailswing(Axle retracted/Axle extended) |
2000/730mm |
| Max.Gradeability |
45%(24°) |
