| Model |

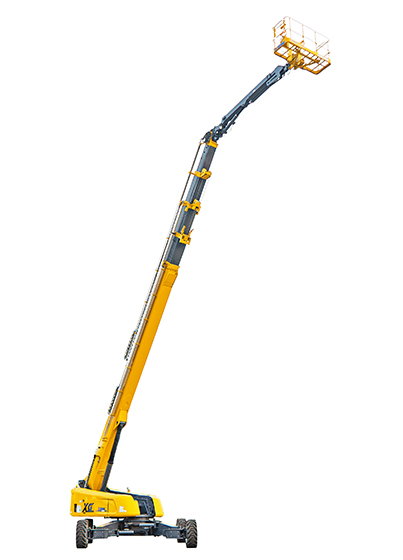

XGS58K |
| Working Height |
58.6m |
| Lift capacity |
300kg (unlimited)/460kg(limited) |
| Weight |
27900kg |
| Overall dimension-Stowed |
19450×2490×3070mm |
| Overall dimension-Transportation |
14600×2490×3070mm |
| Dimension of working platform |
2400×900×1150mm |
| Wheelbase |
5220（Axle retracted）/4590（Axle extended） |
| Overall Width(Axle retracted/Axle extended) |
2490mm/5030mm |
| Fly jib length |
3970(Axle retracted)/5970（Axle extended） |
| Ground clearance |
250mm |
| Max.Platform height |
56.6m |
| Max.Working range |
24.4m |
| Max.Occupants |
3 |
| Max.Working slope |
X-3°/Y-3° |
| Telescopic boom luffing range |
-1°~+80° |
| Flying jib luffing range |
-45°~+75° |
| Turntable rotation |
360° |
| Platform rotation |
160° |
| Drive speed(stowed) |
4.5 km/h |
| Drive speed(up or extended) |
0.5 km/h |
| Min.Turning radius-Axle retracted(inside/outside) |
13810/17140 mm(2-wheel) 7100mm/9500 mm(4-wheel) |
| Min.Turning radius-Axle extended(inside/outside) |
2800mm/9200mm(2-wheel) 2300mm/6600mm(4-wheel) |
| Turntable tailswing(Axle retracted/Axle extended) |
2320/1050mm |
| Max.Gradeability |
45%(24°) |
