| Model |

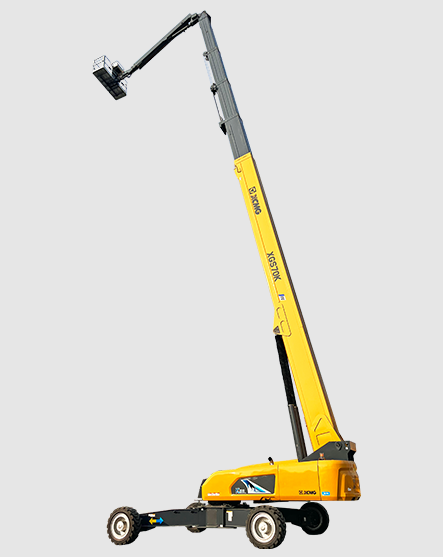

XGS70K |
| Working Height |
69.6m |
| Lift capacity |
230kg (unlimited)/300kg(limited)/460kg(limited) |
| Weight |
35400kg |
| Overall dimension-Stowed |
23150×2490×3070mm |
| Overall dimension-Transportation |
16000×2490×3070mm |
| Dimension of working platform |
2400×900×1150mm |
| Wheelbase |
5890（Axle retracted）/5080（Axle extended） |
| Overall Width(Axle retracted/Axle extended) |
2490mm/5500mm |
| Fly jib length |
5420(Axle retracted)/12420（Axle extended） |
| Ground clearance |
300mm |
| Max.Platform height |
67.6m |
| Max.Working range |
32.5m |
| Max.Occupants |
2/3 |
| Max.Working slope |
X-3°/Y-3° |
| Telescopic boom luffing range |
0°~+79.5° |
| Flying jib luffing range |
-61°~+70° |
| Turntable rotation |
360° |
| Platform rotation |
160° |
| Drive speed(stowed) |
4.5 km/h |
| Drive speed(up or extended) |
0.5 km/h |
| Min.Turning radius-Axle retracted(inside/outside) |
14700mm/17800mm(2-wheel) 7800mm/9700mm(4-wheel) |
| Min.Turning radius-Axle extended(inside/outside) |
3000mm/9600mm(2-wheel) 2700mm/6900mm(4-wheel) |
| Turntable tailswing(Axle retracted/Axle extended) |
3600/2100mm |
| Max.Gradeability |
30%(16.7°) |
