| Model |

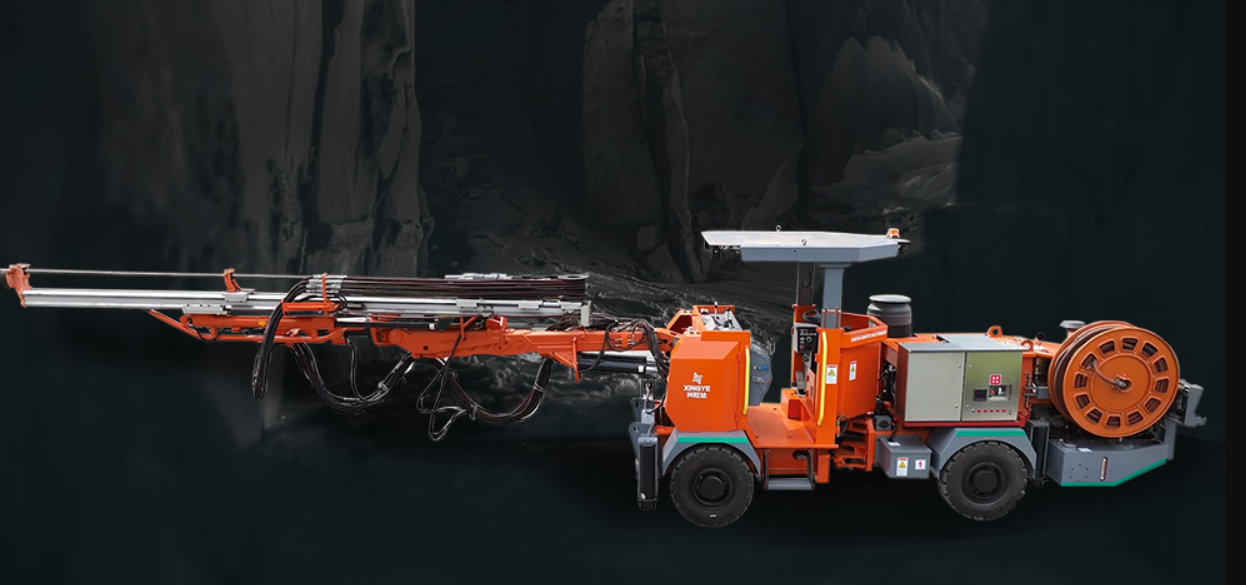

CYTJ45 |
| Dimensions (mm) |
1267*Front 2080/Rear 1800*2900/2200 |
| Working Arm |
Single Working Arm |
| Drilling Depth (mm) |
4010 |
| Total Weight (T) |
12 |
| Drill Diameter (mm) |
45 |
| Min. Ground Clearance (mm) |
261 |
| Steering angle |
±41° |
| Equipment Coverage Area (㎡) |
33 |
| Rock Drill |
Drilling Rod End |
T38 |
| Impact Power (kw) |
18 |
| Impact Frequency (Hz) |
60 |
| Slewing System |
Independent Slewing |
| Propulsion Beam |
Drill Rod Length (mm) |
4010 |
| Drilling Depth (Minimum) ( mm ) |
4000 |
| Propulsion (Kn) |
13 |
| Drill Boom |
Balance Maintenance |
Complete |
| Propulsion Beam Rollover Angle |
360° |
| Max Lift Angle of Drill Boom |
+65°/-30° |
| Max Slewing Angle of Dril Boom |
±35° |
