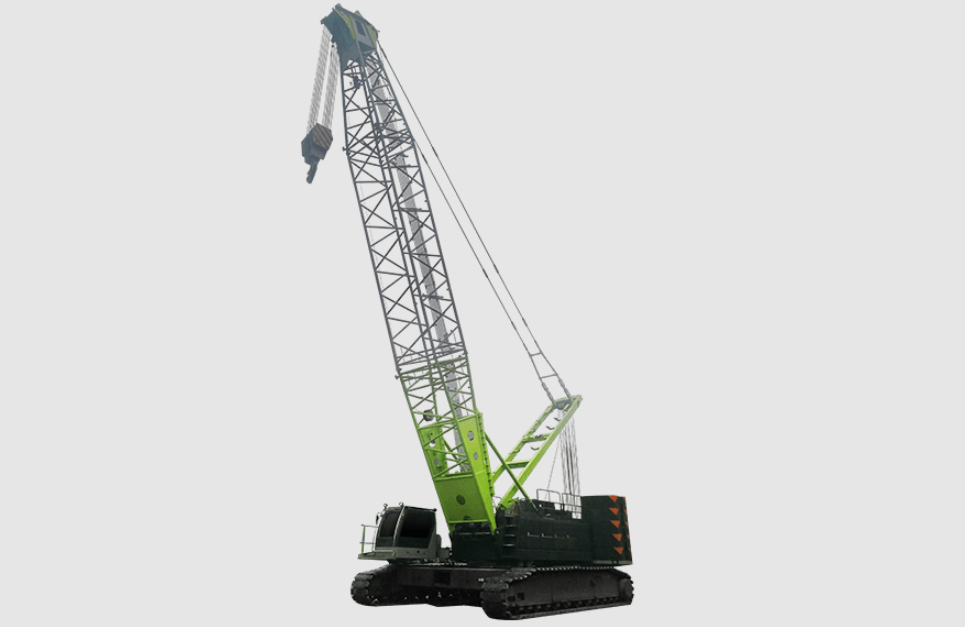

ZOOMLION ZCC1600HD

ZCC1600HD - ZOOMLION ZCC1600HD - ZOOMLION ZCC1600HD Crawler Crane

Model	ZCC1600HD
Max. lifting moment (t×m)	980
Max. lifting capacity (t)	160
Main boom length (m)	12~60
Single rope speed of H1 (m/min)	0~140	Notes:The 5th layer
Diameter of rope for H1 (mm)	26
Max. single rope tension of H1 (t)	13.5
Single rope speed of H2 (high-speed lowering winch) (m/min)	0~91	Notes:The 3rd layer
Diameter of rope for H2 (mm)	32
Max. single rope tension of H2 (t)	25
Single rope speed of derricking mechanism (m/min)	0~78	Notes:The 5th layer
Diameter of rope for derricking mechanism (mm)	22
Slewing speed (rpm)	0~2.2
Crawling speed (km/h)	0~1.85
